Aten SN3002 [96/111] Port mapping and unmapping

Secure Device Server User Manual

Port Mapping and Unmapping

Port Mapping

To map a virtual COM port:

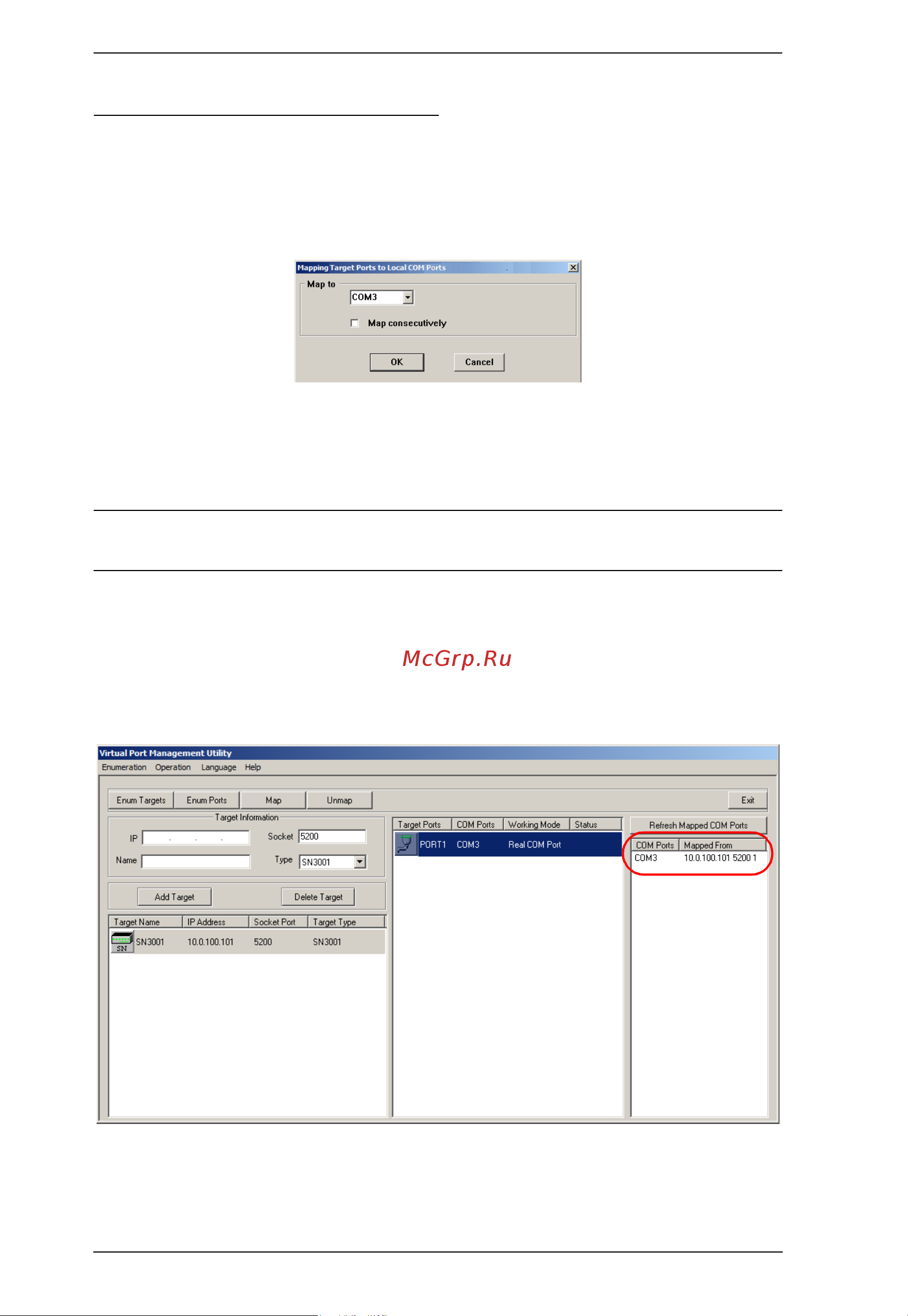

1. Double-click your Target item in the Port List to brings up the Port

Mapping dialog box:

2. From the drop-down list, select the desired COM port to map the Target

port to.

3. Click OK.

Note: If a warning dialog box comes up, you can safely ignore it. Click

Continue Anyway to complete the operation

Mapped COM Port

The far-right panel on the Virtual Port Management displays the mapped COM

port. The entry is generated as soon as the application starts, and is updated

whenever the mapped COM port configuration changes as a result of

installations and removals.

Up to 256 ports can be mapped on a Windows system.
