Chapter 9. Virtual Serial Port Manager
83

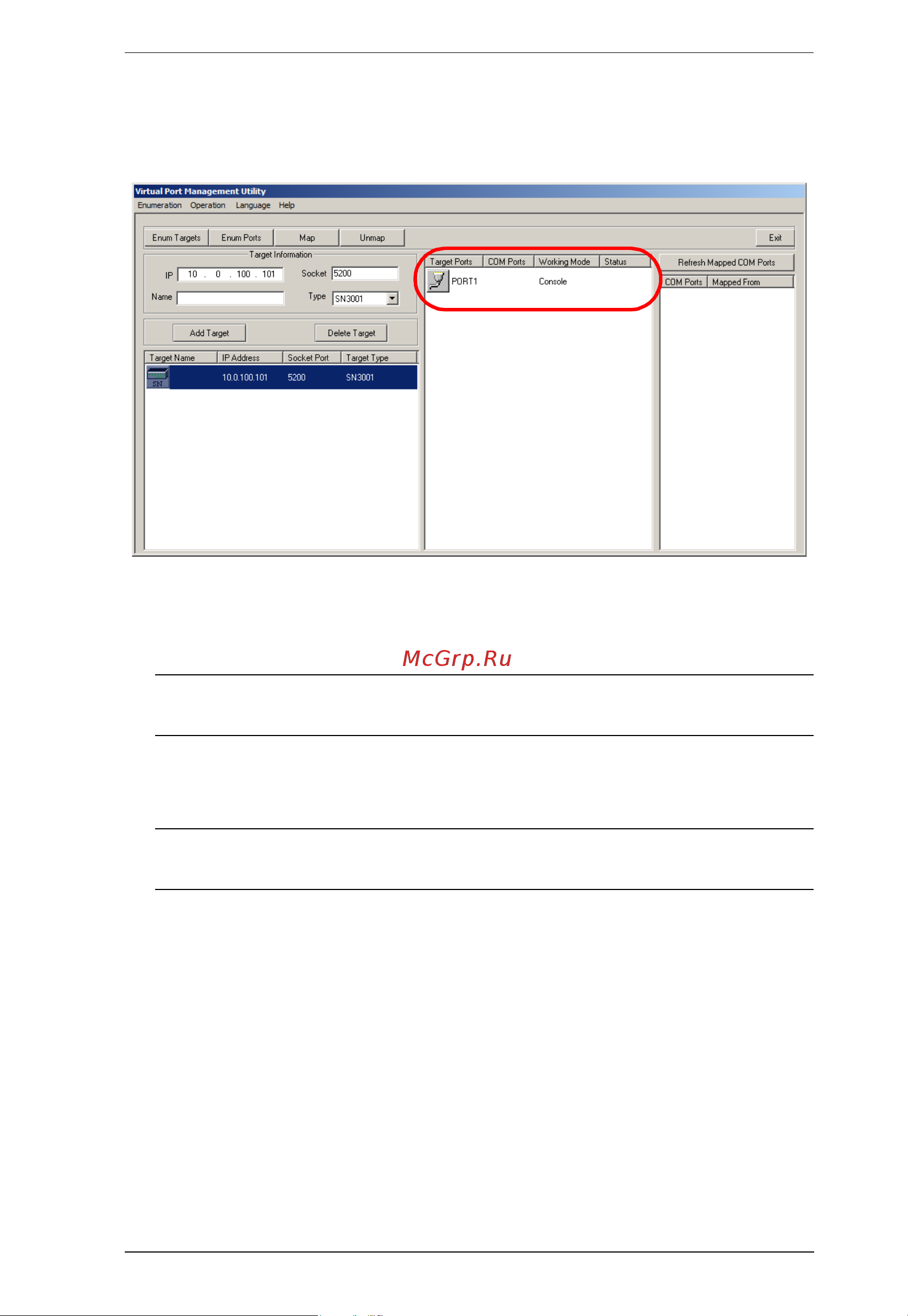

Port List
This list displays the port information of the selected target (only one target can
be selected at a time).
The left column lists the target’s port number, the second column shows
the COM port it is mapped to (if any), the third column shows its working
mode, and the right column shows its status.
Note: The working mode refers to the operating mode that the serial port
is set as. See Operating Mode, page 30, for details.
Double-clicking a port in the Port List brings up the Port Mapping dialog
box. See Port Mapping, page 84 for mapping details.
Note: The Port Mapping dialog box can also be invoked either by clicking
MapTo… on the toolbar or selecting MapTo… from the menu.
