©2014 DJI All Rights Reserved 27 |
(1) Check that propellers and motors are installed correctly and firmly before every flight.
(2) Ensure that all propellers are in good condition before each flight. DO NOT use any ageing,
chipped, or broken propellers.
(3) To avoid injury, STAND CLEAR of and DO NOT touch propellers or motors when they are spinning.
(4) ONLY use original DJI propellers for a better and safer flight experience.

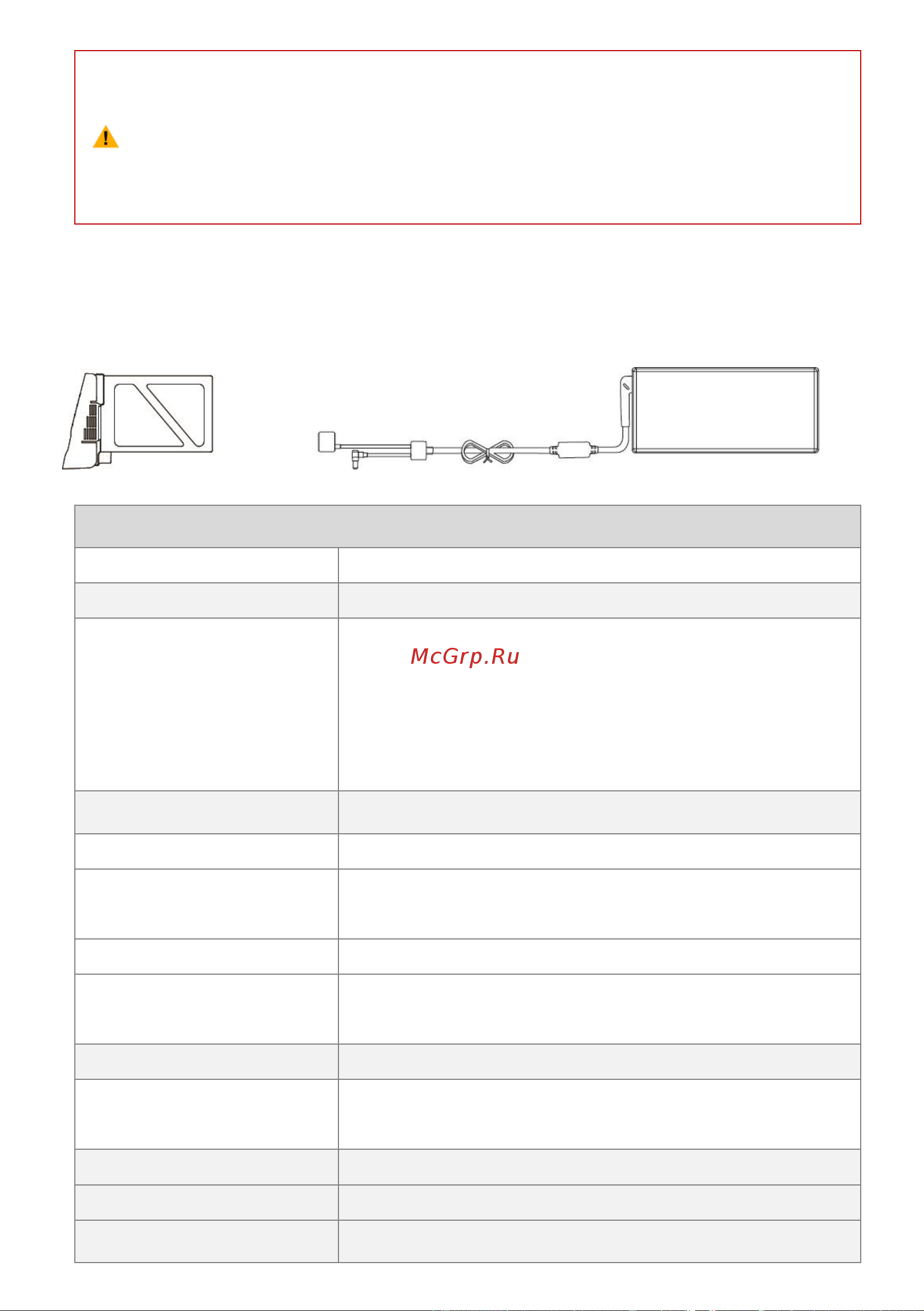

2.10 DJI Smart Battery
The DJI Smart Battery has a capacity of 4500mAh, voltage of 22.2V, and smart charge-discharge functionality. It
can only be charged with an appropriate DJI-approved charger.
DJI Smart Battery Functions
(1) Battery Level Display
LEDs display the current battery level.
(2) Battery Life Display
LEDs display the current battery power cycle.
(3) Auto-discharging function.
Battery discharges automatically to below 65% when it is idle for more
than 10 days to prevent the battery from swelling. It takes around 2 days
to discharge the battery to 65%, It is normal that you may feel moderate
heat emits from the battery during the discharge process. Set the
discharging thresholds in the DJI Pilot App.
(4) Balanced Charging
Automatically balances the voltage of each battery cell when charging.
(5) Over charge Protection
Charging automatically stops when the battery is fully charged.
(6) Temperature Detection
The battery will only charge when the temperature is between 0℃
(32°F) and 40℃ (104°F).
(7) Over Current Protection
Battery stops charging when high amperage (more than 10A) is detected.
(8) Over Discharge Protection
Discharging automatically stops when the battery voltage reaches 18V to
prevent over-discharge damage
(9) Short Circuit Protection
Automatically cuts the power supply when a short circuit is detected.
(10) Battery Cell Damages
Protection
DJI Pilot App shows warning message when damaged battery cell is
detected.
(11) Battery Error History
Browse the battery error history from the DJI Pilot App.
(12) Sleep Mode
Sleep mode is entered after 10 minutes of inactivity to save power.
(13) Communication
Battery voltage, capacity, current, and other relevant information is
