5 DJI Inspire 1 App

The DJI Inspire 1 app is a new mobile app designed specifically for your Inspire 1. Use this app to control the gimbal,

camera and other features of your flight system. The app also comes with Aircraft Assistant and a User Center, for

configuring your aircraft and sharing your content with friends.

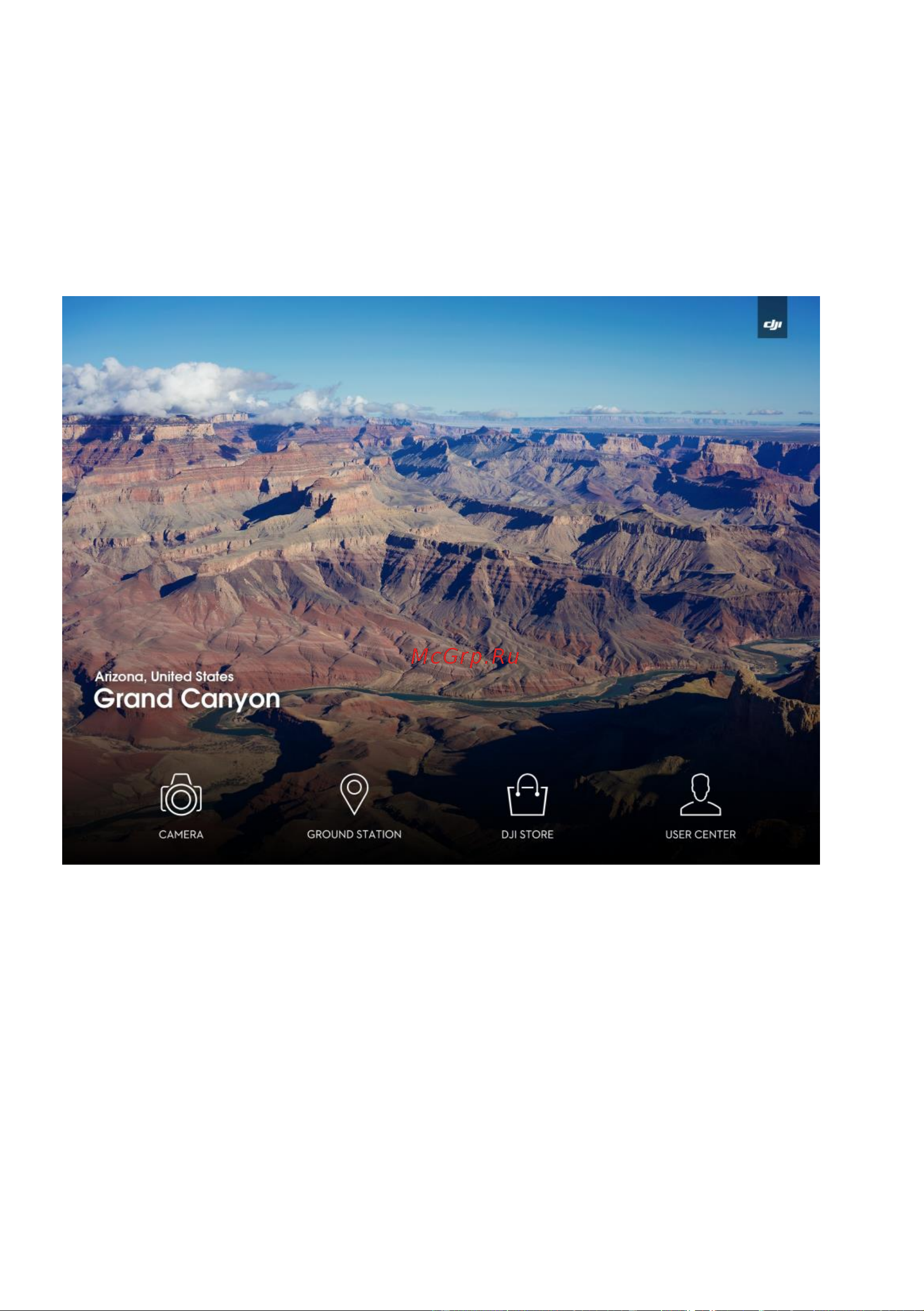

DJI Inspire 1 App GUI

The GUI of Inspire 1 app GUI consists of four pages and a checklist button. In addition, local weather information is

also displayed on the main GUI.

Camera

Camera enables user to preview live HD video feed from the Inspire 1. In addition, it also allows instant playback of

the image from the camera. User can also configure various camera parameters from the camera page.
