3. Press and hold the Linking Button with a pin or other small object to start the linking process. The adjacent
LED will blink red to indicate the aircraft is ready to link to a new remote controller.
4. Power on the new remote controller. Place the remote controller next to the aircraft. The Status LED on the
remote controller and the LED on the aircraft will both turn solid green to indicate that the link is established.
Remote Controller Compliance Version
The remote controller is compliance with both CE and FCC version.
Upgrading Remote Controller
Connect the remote controller to the computer via the Micro-USB port and launch the RC Assistant to upgrade the
firmware of the remote controller.
4 Camera and Gimbal
4.1 Camera Profile
The on-board camera supports 4K video capture up to 4096x2160P24. You may export the video in either MOV or
MP4 format for post editing. Available picture shooting modes include burst, continuous, and timer mode. A live
preview of what the camera is seeing before you shoot videos and pictures is supported through the DJI Inspire 1
App. See the table below for the technical specification of the included camera:
Camera Specification
CMOS size
1/2.33”
Image resolution
4000x3000 in 4:3 mode, 4000x2250 in 16:9 mode
Video Resolution
Max at 4096x2160 p24
FOV
94° FOV
4.1.2 Camera Micro-SD Card Slot

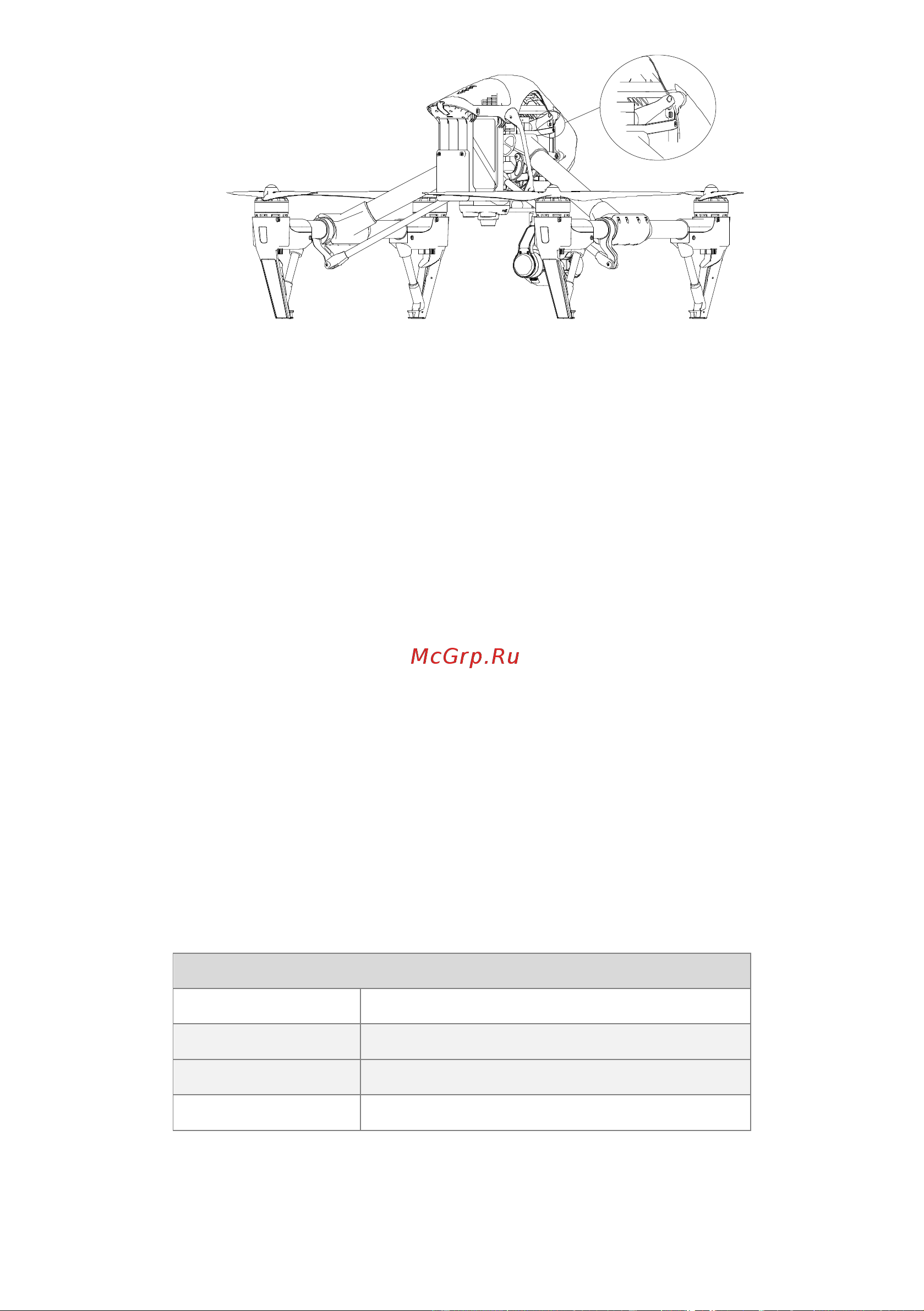

To store your photos and videos, plug in the micro-SD card into the slot shown below before powering on Inspire 1.
