DJI Inspire 1 Remote Controller [14/63] Remote controller diagram

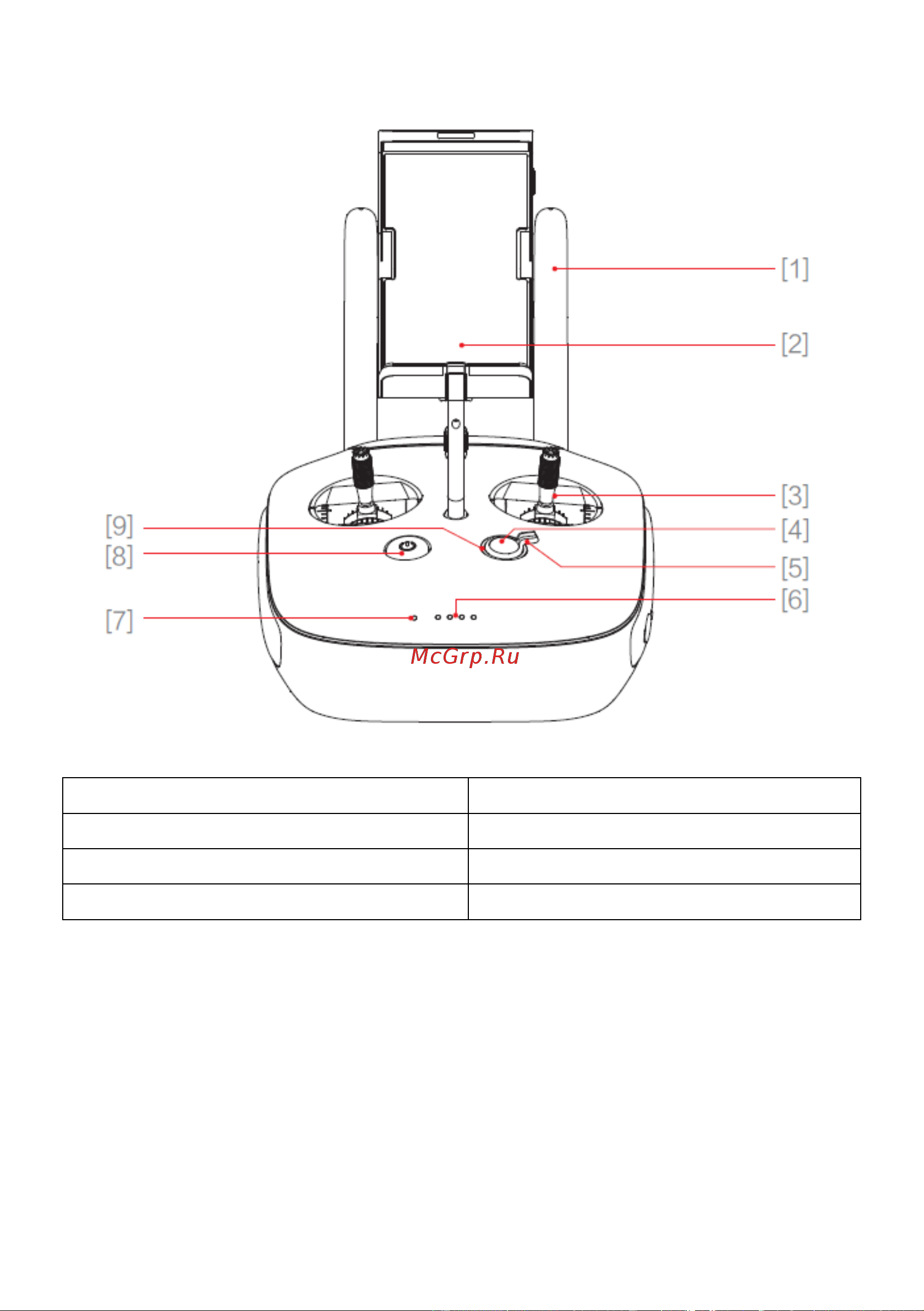

1.3 Remote Controller Diagram

Remote Controller Front View

Figure 21

1. Antenna

5. Transformation Switch

2. Mobile Device Holder

6. Battery Level LEDs

3. Control Stick

7. Status LED

4. Return Home(RTH )button

8. Power Button

1. Antenna

Relays aircraft control and video signal.

2. Mobile Device Holder

Mounting place for the mobile device.

3. Control Stick,

Aircraft orientation control.

4. Return Home (RTH) Button

Press and hold the button to initiate Return to Home (RTH).

5. Transformation Switch
