DJI Inspire 1 Remote Controller [17/63] Aircraft

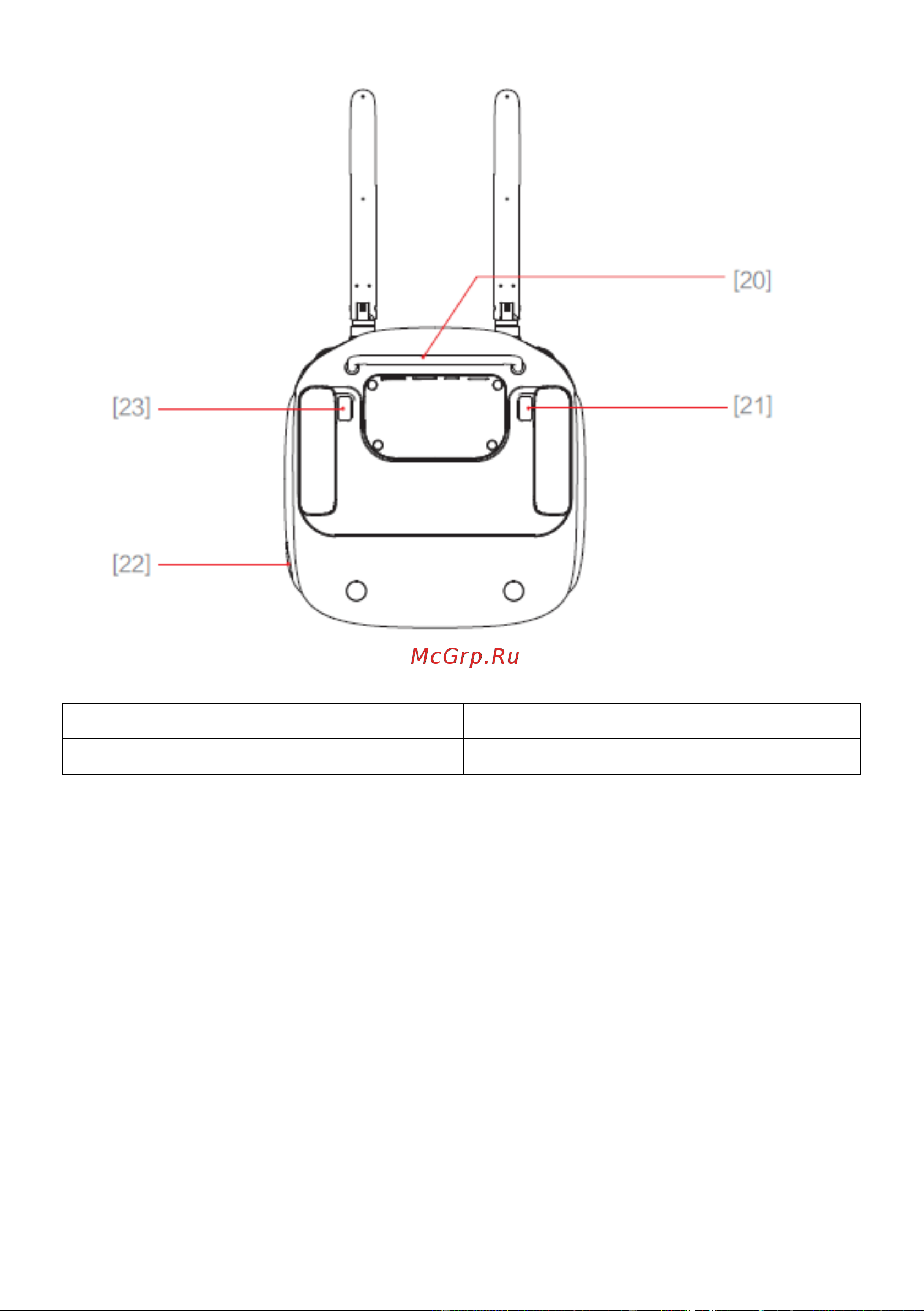

Remote Controller Rear View

Figure 23

20. Handle Bar

22. Power Source Port

21. Back Left Button

23. Back Right Button

20. Handle Bar

Used to carry the remote controller or attach accessories.

21. Back Left Button

Reserved.

22. Power Port

Connect to a power source for to charge the remote controller’s internal battery.

23. Back Right Button

Reserved.

2 Aircraft

2.1 Flight Controller

The Ncore flight controller is based on DJI A2 flight controller with several enhancements. Three flight modes are

available to allow user to switch between GPS and non-GPS flight. Failsafe, Return Home and Dynamic Home Point

features ensures the safe return of your aircraft when signal is lost. The new added flight recorder function stores the
