DJI Inspire 1 Remote Controller [38/63] Connecting mobile device
![DJI Inspire 1 Remote Controller [38/63] Connecting mobile device](/views2/2003190/page38/bg26.png)
©2014 DJI All Rights Reserved 38 |
Connecting Mobile Device

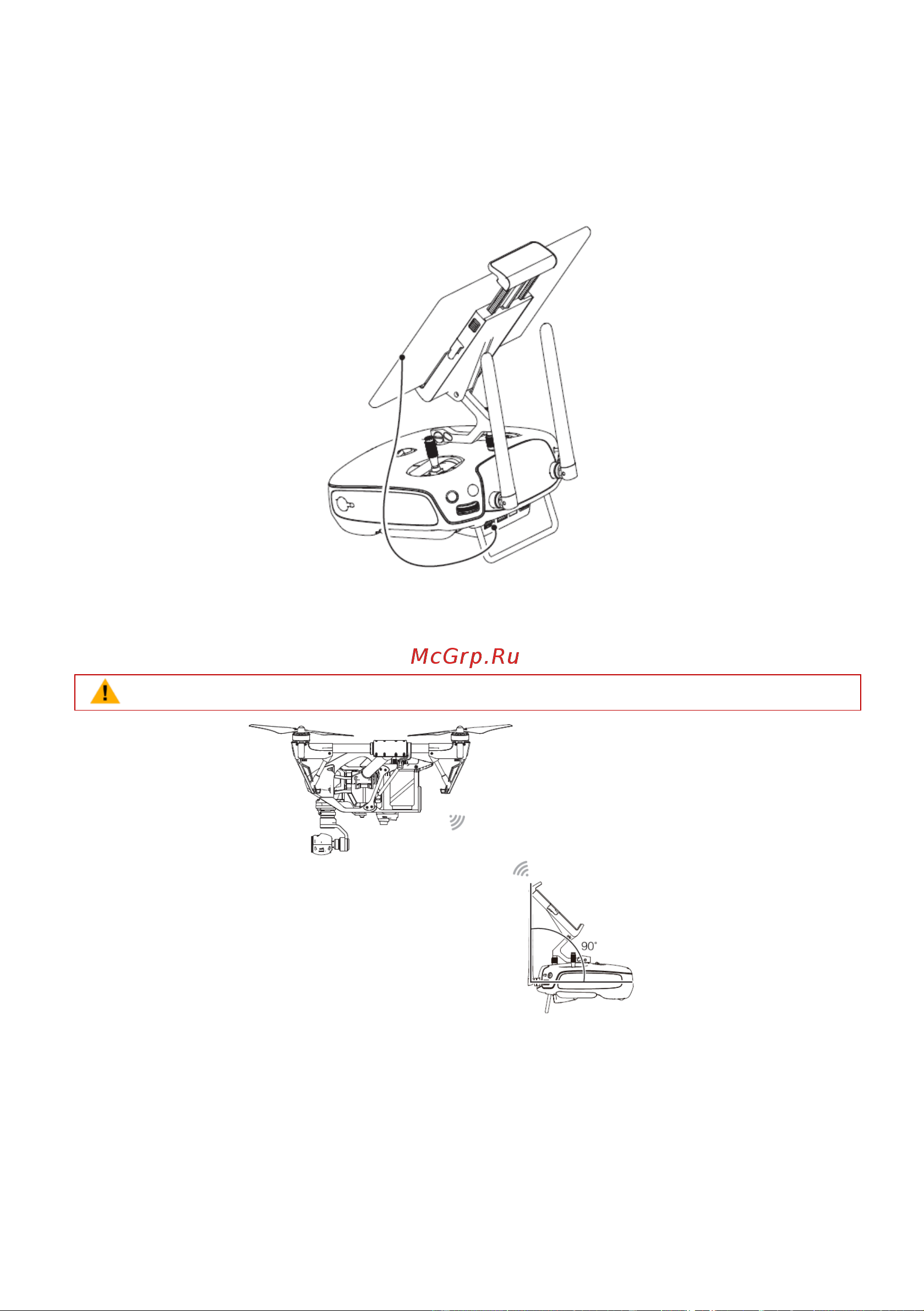

Tilt the Mobile Device Holder to the desired position. Press the button on the side of the Mobile Device Holder to
release the clamp, and then place your mobile device into the clamp. Adjust the clamp to secure your mobile device.
Then connect your mobile device to the remote controller with a USB cable. Plug one end of the cable into your
mobile device, and the other end into the USB port on the back of the remote controller.
Remote Controller Antennas Orientation
Ensure the antenna’s position is perpendicular to the body of the remote controller for optimal transmission quality.
Do not use other 2.4GHz devices at the same time, to avoid signal interference.
Multi Remote Controllers Connection
More than one remote controller can connect to the same aircraft in Master-and-Slave mode. Under Master-and-Slave
mode, the “Host” remote controller operator can control the orientation of the aircraft, while the “Slave” remote
controller can control the pitch and pan movement of the gimbal and also control the camera operation.
