©2014 DJI All Rights Reserved 30 |

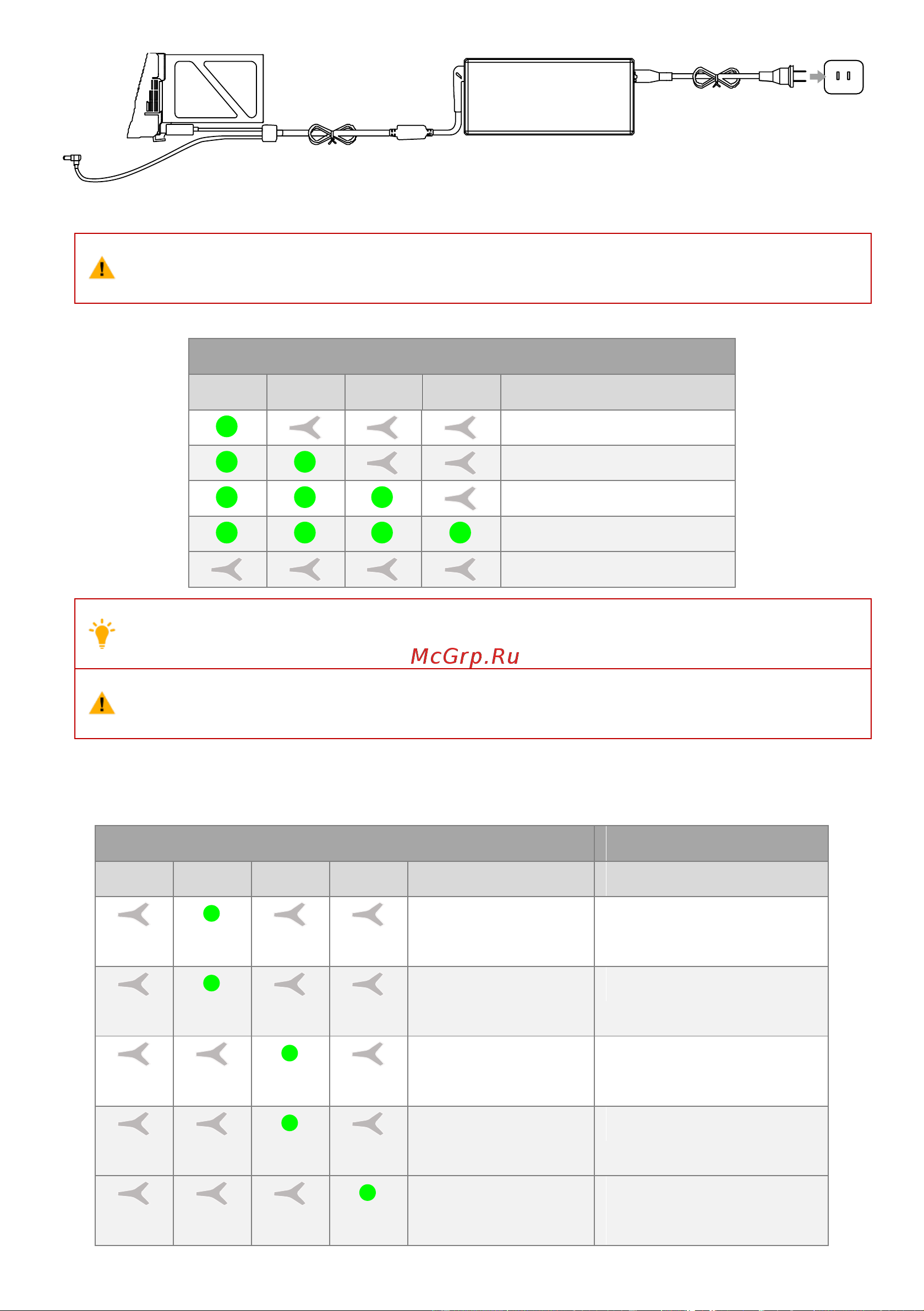

Figure 7
Do not charge the Smart Battery and remote controller at the same time, otherwise the charger may
overheat.
Battery Level Indicators while Charging
LED1
LED2
LED3
LED4
Battery Level
0%~25%
25%~50%
50%~75%
75%~100%
Fully Charged
The Smart Battery can only be charged with a DJI-approved charger. Contact your authorized dealer or
DJI customer service for details.
(1) DJI does not take any responsibility for damage caused by third-party chargers.
(2) If the current battery level is over 95%, the battery should be turned on before charging.
Charing Protection LED Display
The table below shows the battery protections and its corresponding battery LED displaying pattern.
Battery Level Indicators while Charging
LED1
LED2
LED3
LED4
Blinking Pattern
Battery Protection Item
LED2 blinks twice per
second
Over current detected
LED2 blinks third times
per second
Short circuit detected
LED3 blinks twice per
second
Over charging detected
LED3 blinks third times
per second
Over-voltage charger.
LED4 blinks twice per
second
Room temperature is too long
for charging
