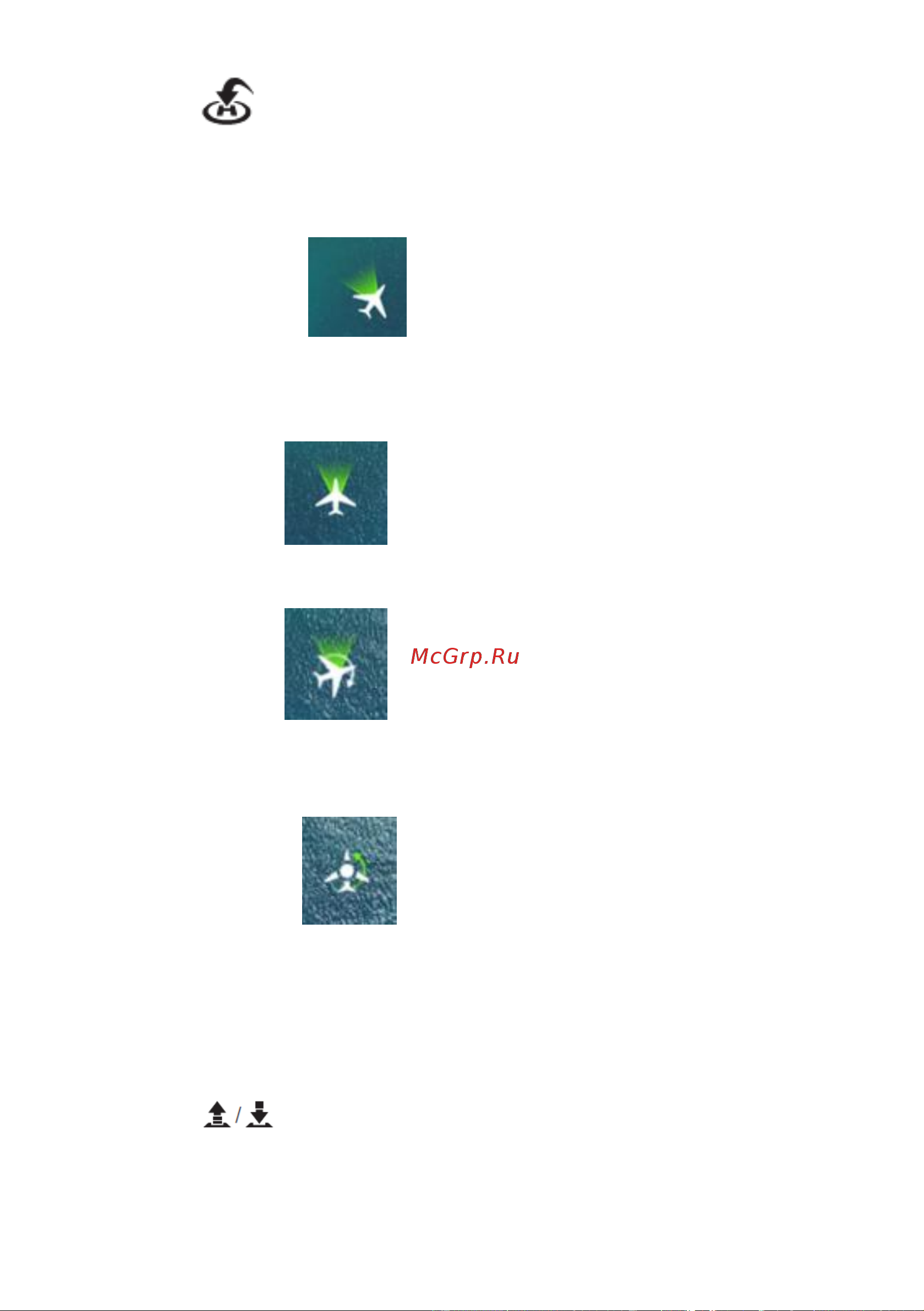

: Initiate RTH home procedure. Aircraft returns to the latest home point.
16. Gimbal Working Mode.
Follow Mode - ：The angle between Gimbal’s orientation and aircraft’s nose
remains constant at all times. One user alone can control the pitch motion of the Gimbal, but a
second user is required to control the roll motion using a second remote controller.
FPV Mode - ： The Gimbal will lock to the movements of the aircraft to provide a
First-Person-View flying experience.
Free Mode- ：The Gimbal’s motion is independent of the aircraft’s orientation.
One user alone can control the pitch motion of the Gimbal, but a second user is required to control
the roll motion using a second remote controller.
Re-alignment ：Tap to force the Gimbal orientation to re-align with aircraft’s
orientation by panning from gimbal’s current orientation. Pitch angle will remain unchanged
during the re-alignment.
17. Auto Takeoff/Landing
: Tap to initiate auto takeoff or landing.
18. Back to Home.
Tap to return to the main GUI.
