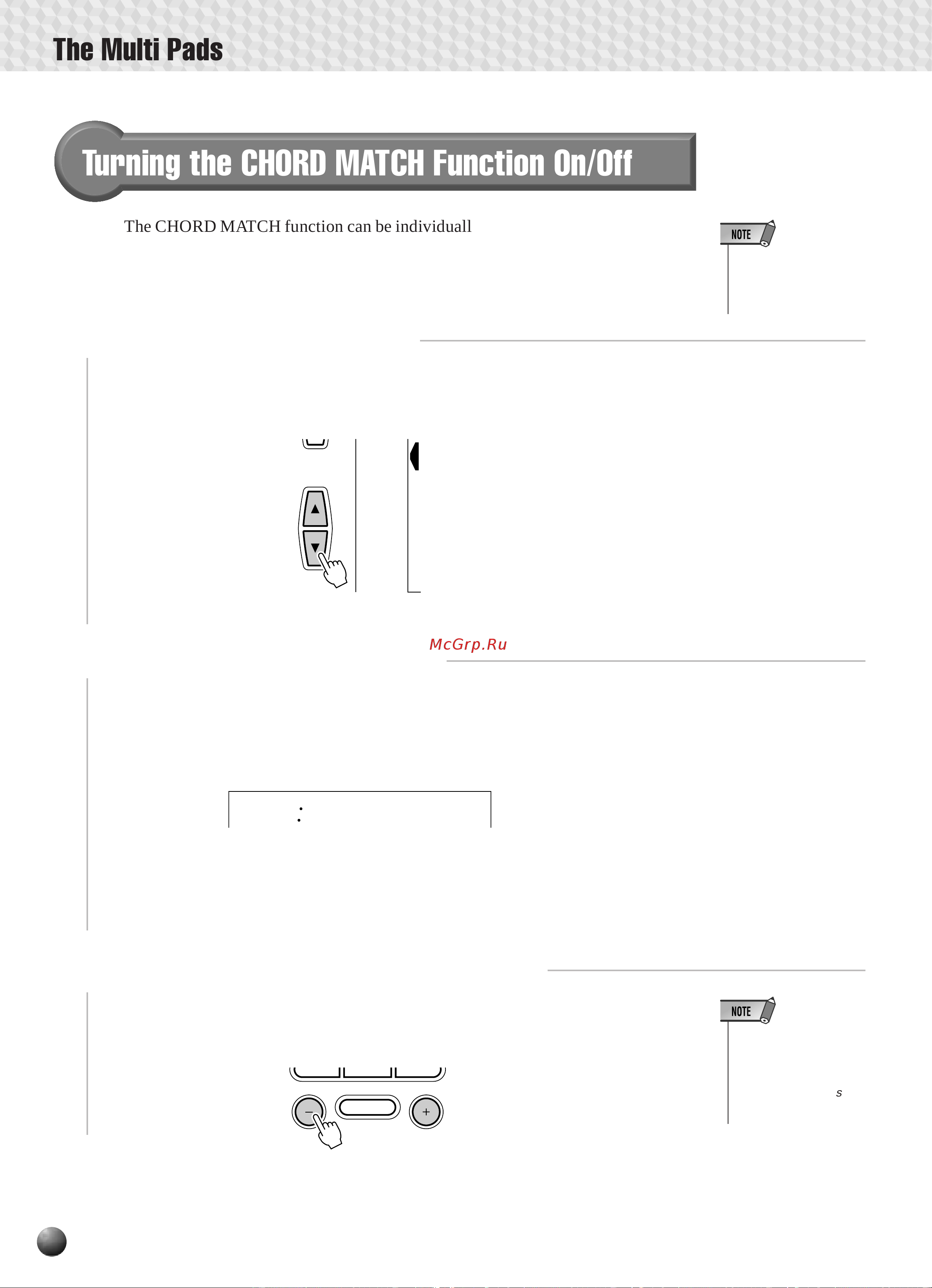

The Multi Pads
Turning the CHORD MATCH Function On/Off
The CHORD MATCH function can be individually turned on or off for each of the
MULTI PADs, as described below.
• The chord match
function has no effect
with pads that contain
percussion phrases.
1
Select the MULTI PAD Function
Use the MENU [▲] and [▼] buttons to select the MULTI PAD function so that the
triangular indicator in the display appears next to “MULTI PAD” to the left of the
display.
2
Select a CHORD MATCH Function
Use the SUB MENU [▲] and [▼] buttons to select “Pad1Chd”, “Pad2Chd”,
“Pad3Chd”, or “Pad4Chd”, depending on the pad for which you want to turn the
CHORD MATCH function on or off.
3
Turn the CHORD MATCH Function On or Off
Use the [–] and [+] buttons to turn the CHORD MATCH function for the selected
pad “on” or “off” as required.
OVERALL
DIGITAL
EFFECT
MIDI
MULTI PAD
on
Pad1Chd
78
0
9
NO YES
• The CHORD MATCH
ON/OFF setting is re-
stored to its original
status when a new
MULTI PAD set is se-
lected.
