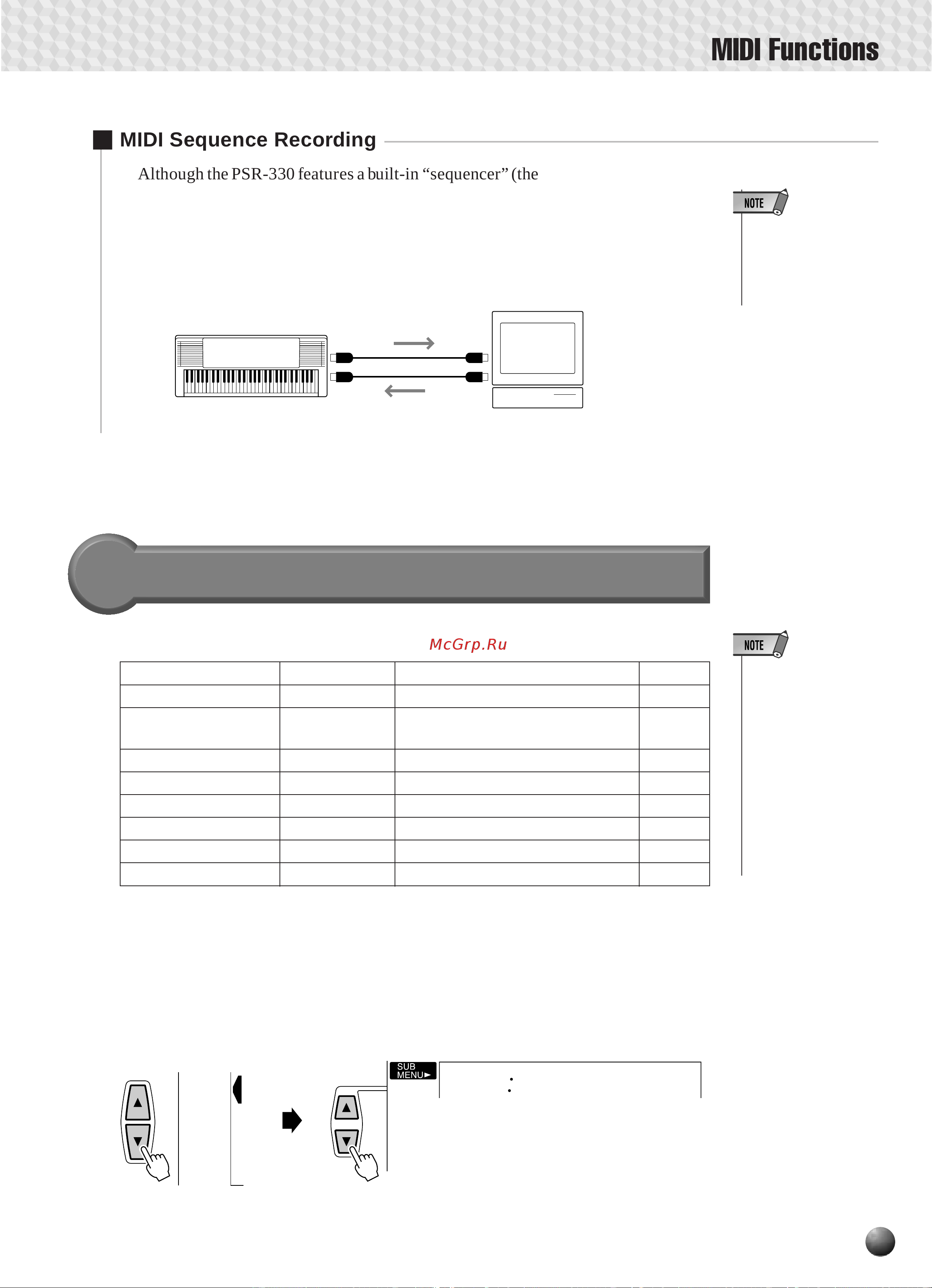

MIDI Functions
■ MIDI Sequence Recording
Although the PSR-330 features a built-in “sequencer” (the SONG recorder is a type
of sequencer), the same type of musical information transfer described above can be
used for more sophisticated MIDI sequence recording using an external sequencer or
music computer. A MIDI sequence recorder or music computer can be used to
“record” MIDI data received from a PSR-330, for example. When the recorded data
is played back, the PSR-330 automatically “plays” the recorded performance in
precise detail.
• Never use MIDI
cables longer than
about 15 meters.
Cables longer than
this can pick up noise
which can cause data
errors.
PSR-330
MIDI INMIDI OUT
MIDI OUTMIDI IN
The PSR-330 MIDI Functions
The PSR-330 has the following MIDI functions.
To access a MIDI function first use the MENU [▲] and [▼] buttons to move the
triangular indicator in the display next to “MIDI”, then use the SUB MENU [▲] and
[▼] buttons to select the desired function from within the MIDI menu. When a
function is selected the current setting will appear on the top line of the display. Once
the function has been selected, use the [–] and [+] buttons (or number buttons, where
applicable) to set the function as required.
01
Tr.Ch
OVERALL
DIGITAL
EFFECT
MIDI
Computer
(Sequencer)
Function Display Settings Page
Transmit Channel Tr.Ch~~~ 1 … 16 68
Transmit Track Tr.Trk~~ r1, r2 , L, rH1, rH2, bAS, CH1 ,
CH2, PAd, PH1, PH2, oFF
68
Receive Channel Rcv.Ch~~ 1 … 16 69
Receive Mode Rcv.Mod~ nor, oFF, rE 69
Local Control Local~~~ oFF, on 70
External Clock ExtClock oFF, on 70
Bulk Data Send BlkSnd?~ None 70
Initial Data Send InitSnd? None 71
• No MIDI transmission
or reception occurs
while the song track
icons in the display
are active (i.e. when
they are framed). In
other words, no MIDI
transmission or recep-
tion occurs during
song playback, song
stop, song recording,
song record standby,
or the song rehearsal
mode.
