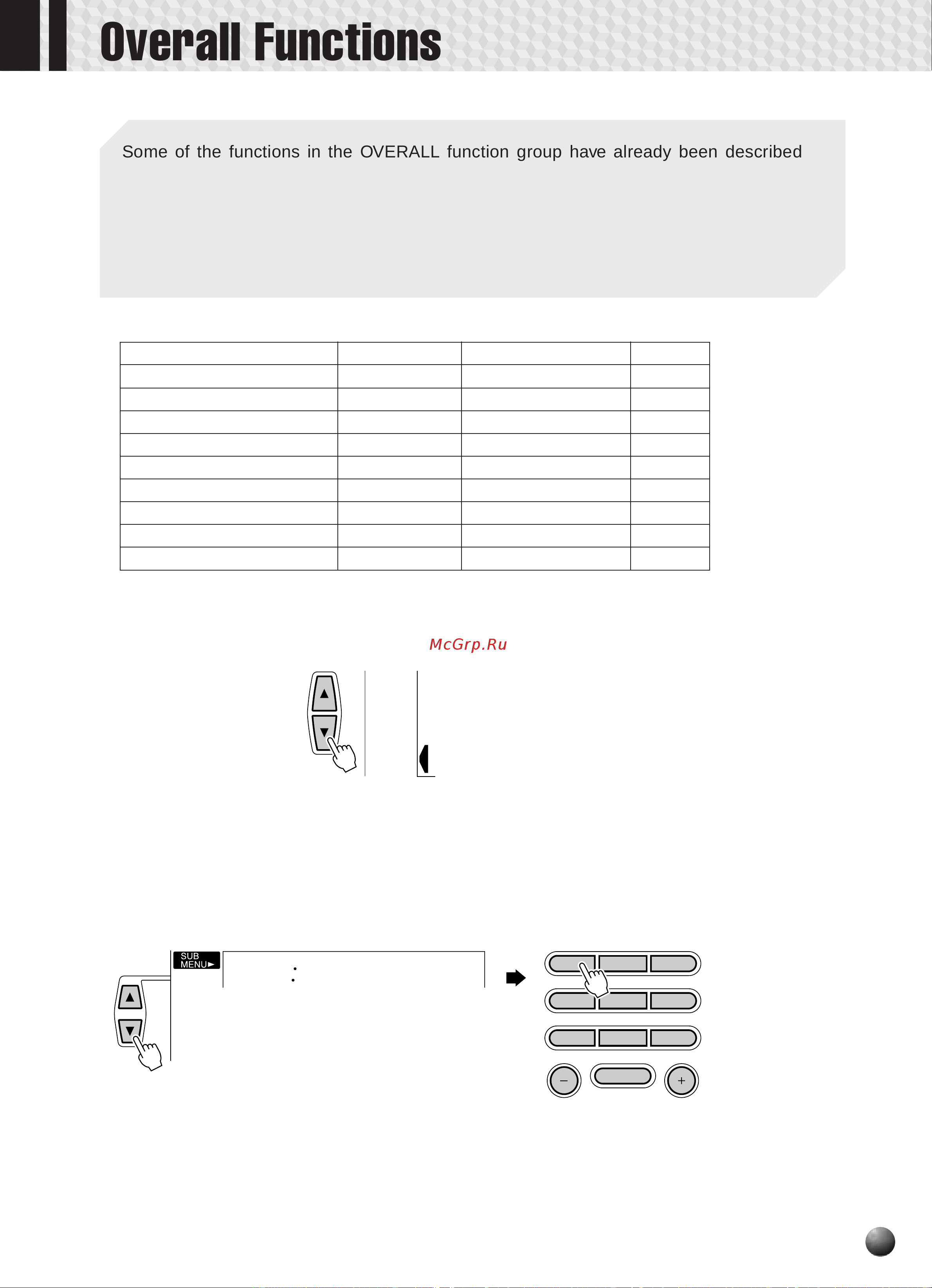

Overall Functions
Some of the functions in the OVERALL function group have already been described in
appropriate sections of this manual. Others will be introduced for the first time in this section.
Refer to the chart below for the page numbers on which each function is described. The chart
also lists the full name of each function, the abbreviated name which appears on the display,
and the available settings or range of settings. Ranges are indicated by two or more values
separated by ellipsis (…).
Function Display Settings Page
Touch Sensitivity TouchSns 0 … 127 64
Master Tuning Tuning~~ –50 … +50 64
Scale Tuning Note SC.Note~ C … b 64
Scale Tuning SC.Tune~ –64 … 63 64
Metronome Metronom oFF, on 65
Split Voice Split Point S.Split~ 0 … 127 18
Accompaniment Split Point AccSpPnt 0 … 127 27
Fingering Mode FngrngMd SF, F1, F2, FuL, MuL 28
Voice Set VoiceSet oFF, on 65
To access an OVERALL function first use the MENU [▲] and [▼] buttons to move
the triangular indicator in the display next to “OVERALL”.
123
456
789
0
100
TouchSns
Then use the SUB MENU [▲] and [▼] buttons to select the desired function from
within the OVERALL menu. When a function is selected the current setting will
appear to the left of the function name on the top line of the display. Once the function
has been selected, use the [–] and [+] buttons (or number buttons, where applicable)
to set the function as required.
OVERALL
DIGITAL
EFFECT
MIDI
