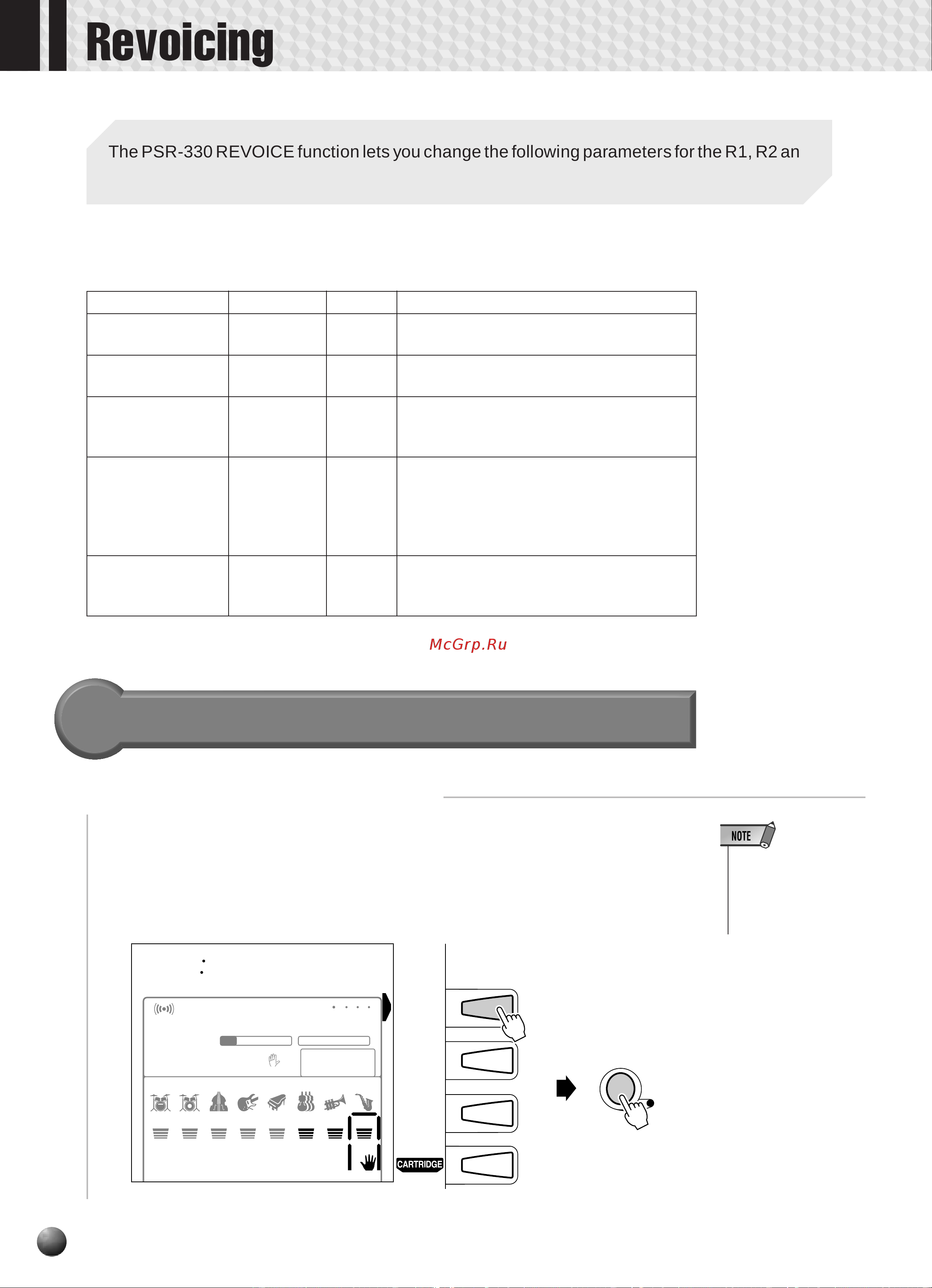

Revoicing
The PSR-330 REVOICE function lets you change the following parameters for the R1, R2 and
L voices, the AUTO ACCOMPANIMENT tracks, and the user SONG tracks.
● Revoice Parameters
Parameter Display Range Comments
Voice Voice Name 1 … 264 Assigns a voice number to the specified PSR-
330 voice or track.
Volume Volume 0 … 127 Sets the volume of the specified PSR-330
voice or track.
Octave Octave –2 … 2 Shifts the pitch of the specified voice or track
up or down by one or two octaves. A setting of
“0” produces normal pitch.
Pan Pan –7 … 7 Positions the sound of the specified voice or
track from left to right in the stereo sound field.
“–7” is full left, “7” is full right, “0” is center, and
all other settings are corresponding positions
in between.
Reverb Send Level RevSndLv 0 … 127 Sets the reverb send level for the specified
voice or track, and thus the amount of reverb
effect applied to that voice or track.
1
Select the VOICE REVOICE Mode
While the VOICE menu is selected, press the [REVOICE] button (actually, the
order here is not important: you can also press the [VOICE] button after pressing the
[REVOICE] button). The [REVOICE] button indicator will light and a frame will
appear around the R1 voice icon in the display (i.e. the R1 voice is initially selected
for revoicing).
• The VOICE REVOICE
mode cannot be se-
lected while the song
record mode is en-
gaged.
Revoicing the R1, R2, and L Voices
MELODY
1234
MELODY MELODY MELODY
ACCOM-
PANIMENT
VOICE VOICE VOICE
RHYTHM
1
BASS CHORD
1
CHORD
2
PAD PHRASE
1
PHRASE
2
FINGERING
REGISTRATION MULTI PAD
RHYTHM
2
LR2R1
001
VOICE L VOICE R2 VOICE R1
46 51 1
GrandPno
REVERB TRANSPOSE
0
REPEAT
1
MEASURE
HARMONY TEMPO
116
SYNC
STOP
VOICE
STYLE
SONG
1
REVOICE
