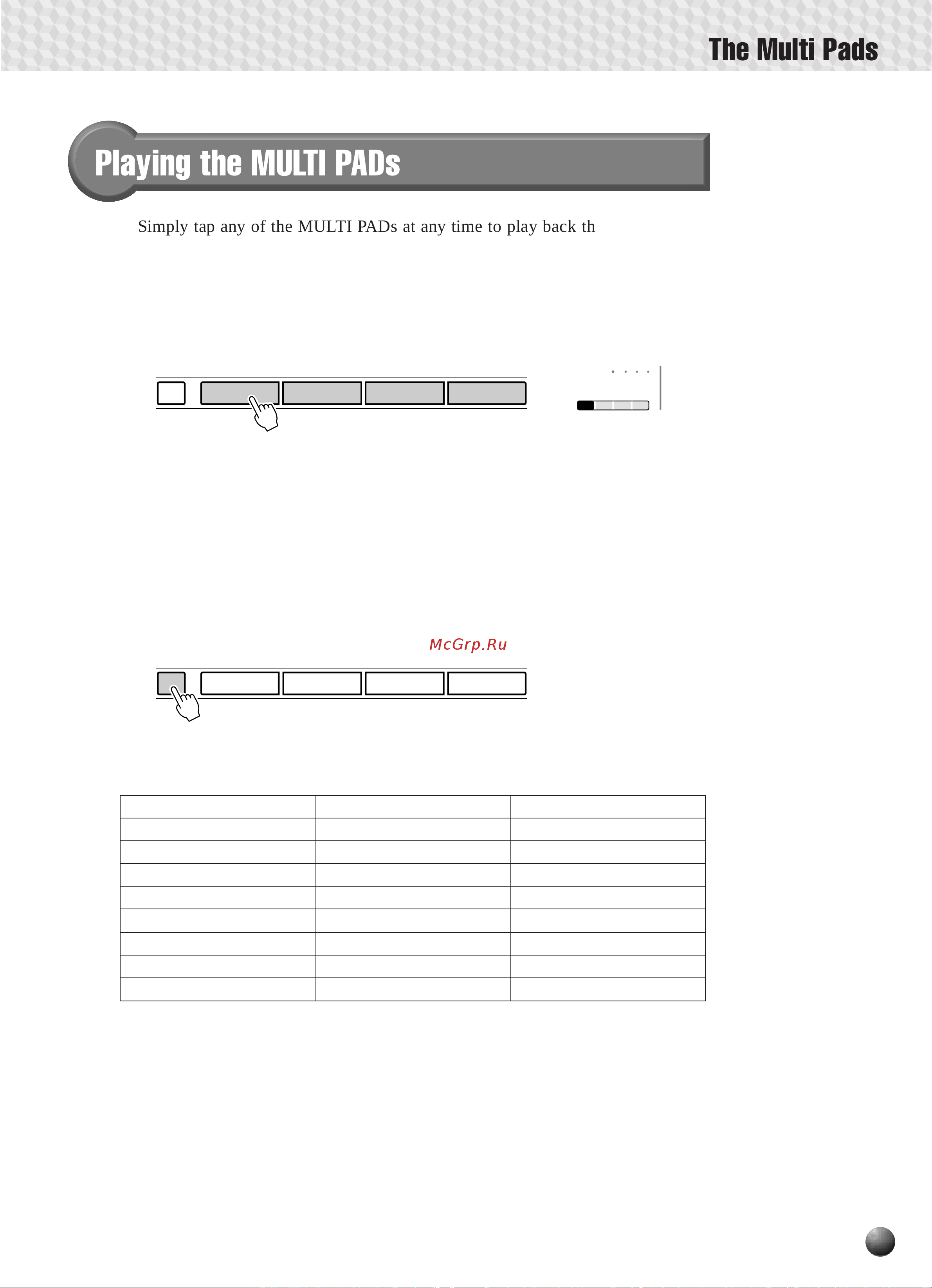

The Multi Pads
Playing the MULTI PADs
Simply tap any of the MULTI PADs at any time to play back the corresponding
phrase at the currently set tempo. MULTI PAD playback begins as soon as the button
is pressed. You can even play two, three, or four MULTI PADs at the same time (only
one pad can be played during SONG playback). Also, you can create “retriggered
sample” effects by repeatedly pressing a pad before its contents are completely played
back.
The MULTI PAD voices are indepedent from the voices you have currently selected
for keyboard performance. You could, for example, play piano on the keyboard while
a MULTI PAD plays a brass chord stab.
When the CHORD MATCH function for a pad is turned on, the corresponding
phrase will be automatically transposed to match chords played using the PSR-330
Auto-accompaniment feature.
MULTI PAD playback can be terminated by pressing the MULTI PAD [STOP]
button.
STOP
21
MUTLI PAD
43
1234
MULTI PAD
1
MEASURE
● The Multi Pad Sets
STOP
21
MUTLI PAD
43
1 Funky
2 Techno 1
3 Techno 2
4 Guitar Play
5 Pianist
6 Strings
7 Arpeggio
8 Twinkle
9 Brass Hit
10 Synth Brass
11 Fanfare 1
12 Fanfare 2
13 Jingle 1
14 Jingle 2
15 Sound Effect
16 Crystal
17 Rock Kit
18 Tom Flam
19 Techno Kit
20 Techno Sequence
21 Analog Kit
22 Anlaog Sequence
23 Latin Percussion 1
24 Latin Percussion 2
25 Bongo Sequence
26 Timbales
