VP-439 - Operating and Controlling the VP-439

3. Highlight the network adapter you want to use to connect to the device and

click Change settings of this connection.

The Local Area Connection Properties window for the selected network

adapter appears as shown in Figure 3.

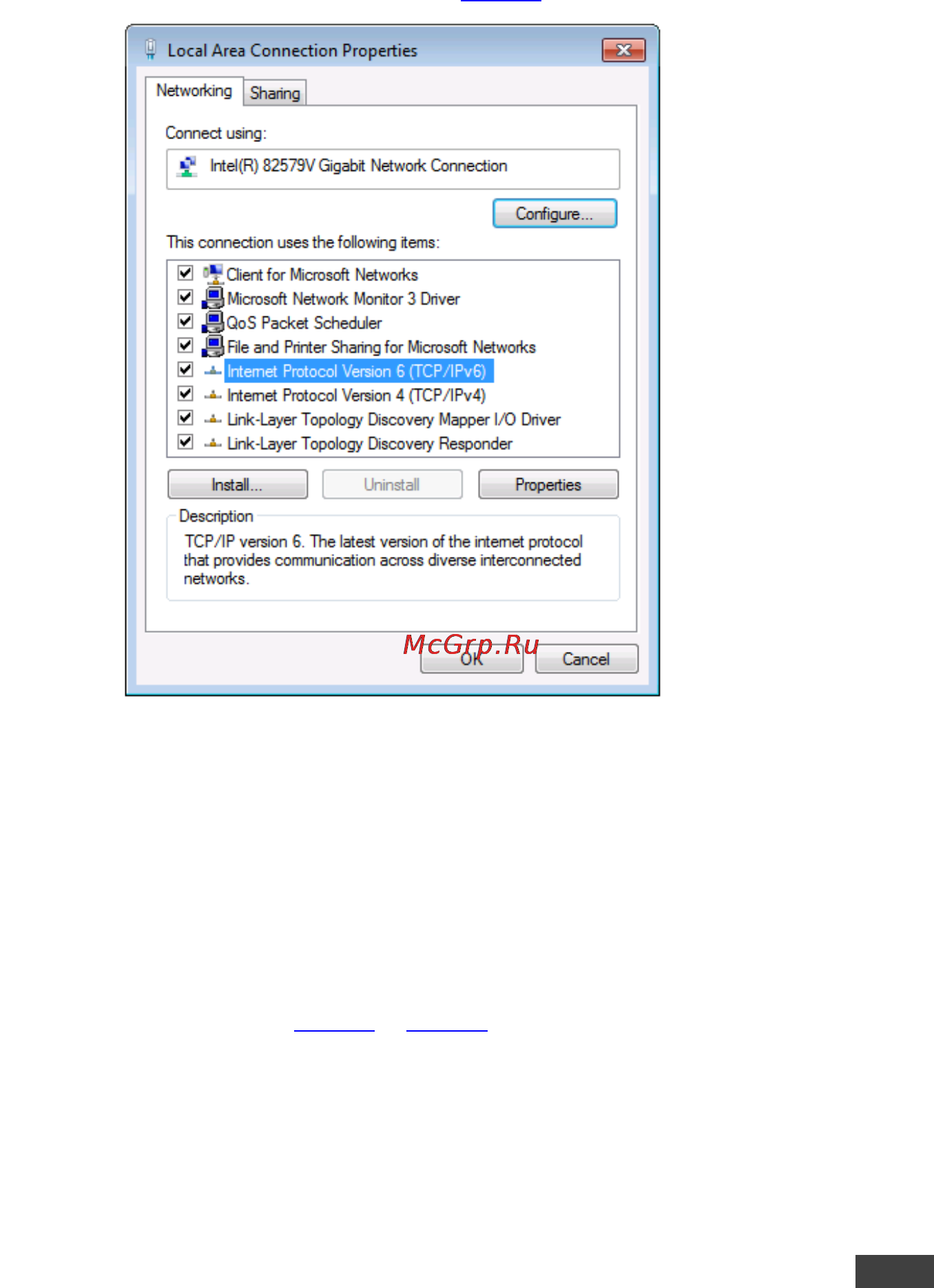

Figure 3: Local Area Connection Properties Window

4. Highlight either Internet Protocol Version 6 (TCP/IPv6) or Internet

Protocol Version 4 (TCP/IPv4) depending on the requirements of your IT

system.

5. Click Properties.

The Internet Protocol Properties window relevant to your IT system appears

as shown in Figure 4 or Figure 5.
