ASUS H81-GAMER

1-11

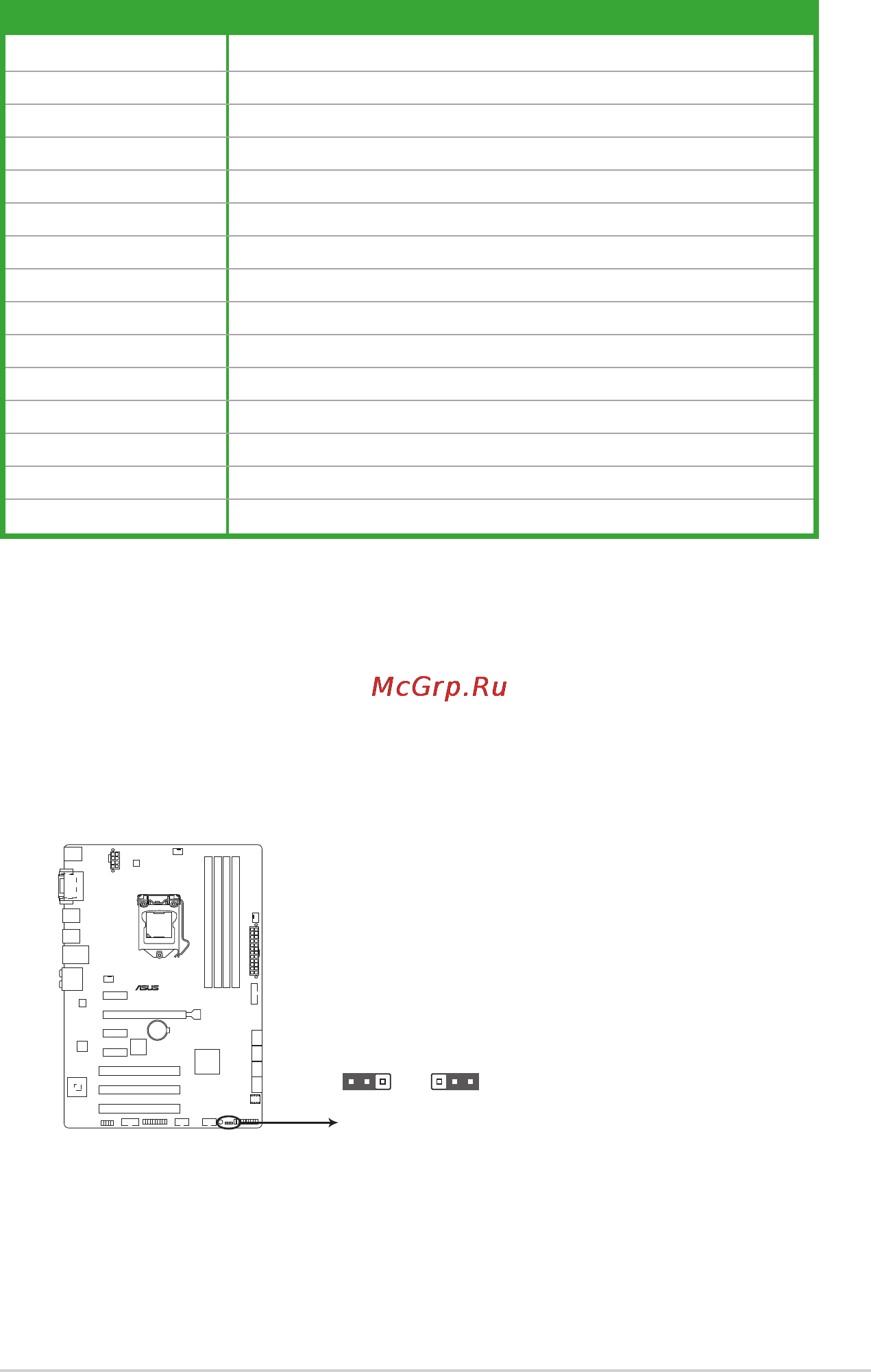

IRQ assignments for this motherboard

A B C D E F G H

I.G.D. Shared

– – – – – – –

PCIex16 Shared – – – – – – –

PCIex1_1 Shared – – – – – – –

PCIex1_2 – Shared – – – – – –

PCIex1_3 Shared – – – – – – –

PCI1 – – – Shared – – – –

PCI2 Shared – – – – – – –

PCI3 – Shared – – – – – –

IntelSATAController – – – Shared – – – –

IntelLAN – – – – Shared – – –

IntelxHCI – – – – – Shared – –

IntelEHCI1 – – – – – – – Shared

IntelEHCI2 Shared – – – – – – –

ASMUSB3.0 Shared

HDAudio

–

– – – –

Shared

–

1.6 Jumpers

1. Clear RTC RAM (3-pin CLRTC)

ThisjumperallowsyoutocleartheRealTimeClock(RTC)RAMinCMOS.Youcan

cleartheCMOSmemoryofdate,time,andsystemsetupparametersbyerasing

theCMOSRTCRAMdata.TheonboardbuttoncellbatterypowerstheRAMdatain

CMOS,whichincludesystemsetupinformationsuchassystempasswords.

H81-GAMER

H81-GAMER Clear RTC RAM

2 3

Normal

(Default)

Clear RTC

CLRTC
