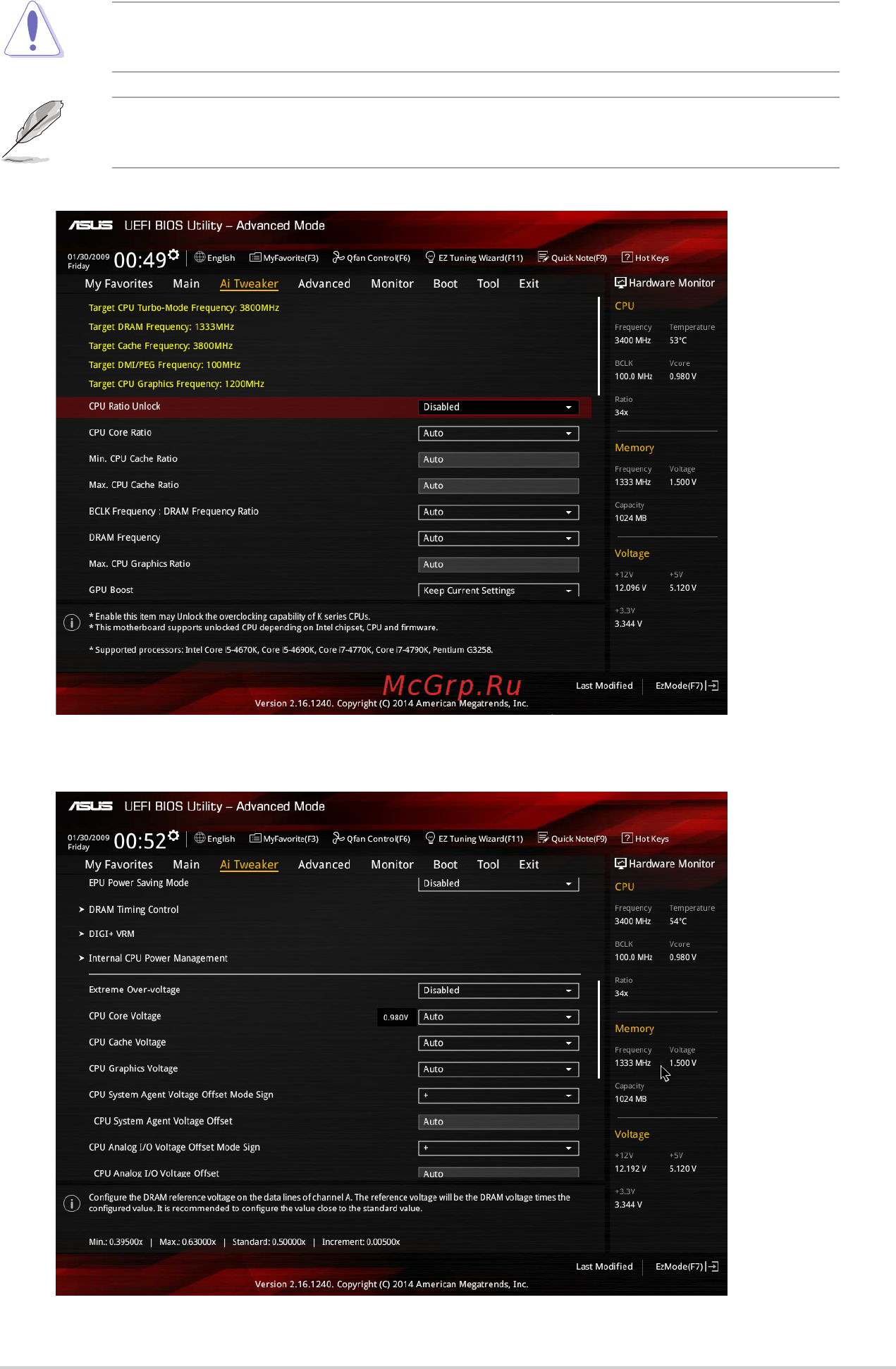

2.5 Ai Tweaker menu

The Ai Tweaker menu items allow you to congure overclocking-related items.

Be cautious when changing the settings of the Ai Tweaker menu items. Incorrect eld

values can cause the system to malfunction.

The conguration options for this section vary depending on the CPU and DIMM model you

installed on the motherboard.

Scroll down to display the following items:
