2-14
Chapter 2: Getting started

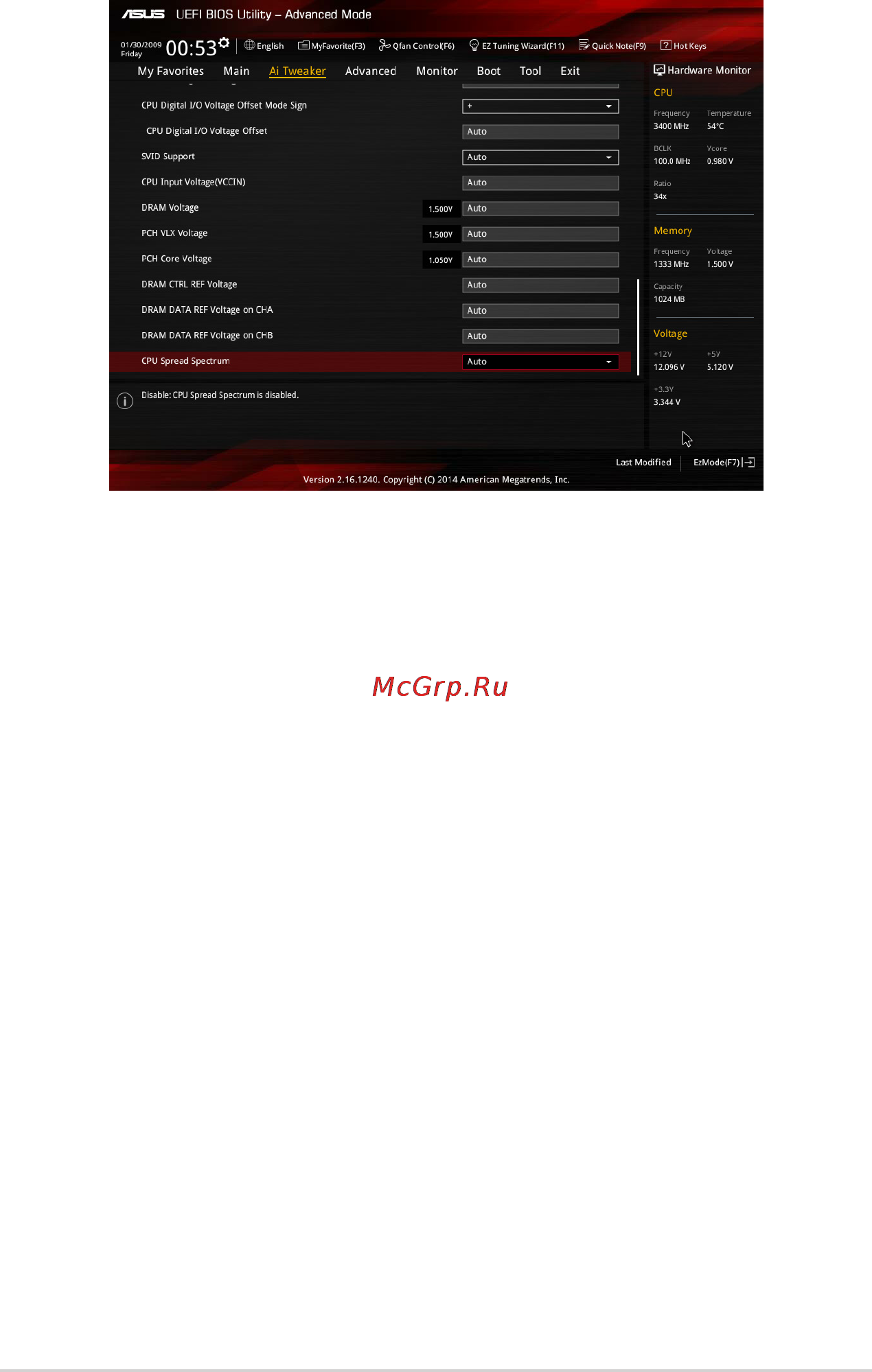

Target CPU Turbo-Mode Frequency : xxxxMHz
Displays the target CPU Turbo-Mode frequency.
Target DRAM Frequency : xxxxMHz
Displays the target DRAM speed.
Target Cache Frequency : xxxxMHz
Displays the target Cache speed.
Target DMI/PEG Frequency : xxxxMHz
Displays the target DMI/PEG clock.
Target CPU Graphics Frequency : xxxxMHz
Displays the target CPU Graphics speed.
2.5.1 CPU Ratio Unlock [Disabled]
Allows you to unlock the overclocking capability of K series CPUs. This motherboard
supports unlocked CPU depending on Intel chipset, CPU and rmware.
2.5.2 CPU Core Ratio [Auto]
Allows you to set the CPU core ratio automatically or manually.
[Auto] Sets all CPU Core Ratio to Intel
®
CPU default settings automatically.
[Sync All Cores] Allows you to set CPU Core Ratio settings for all cores.
[Per Core] Allows you to set CPU Core Ratio individually.
Scroll down to display the following items:
