3-32
Chapter 3: BIOS Setup
Chapter 3

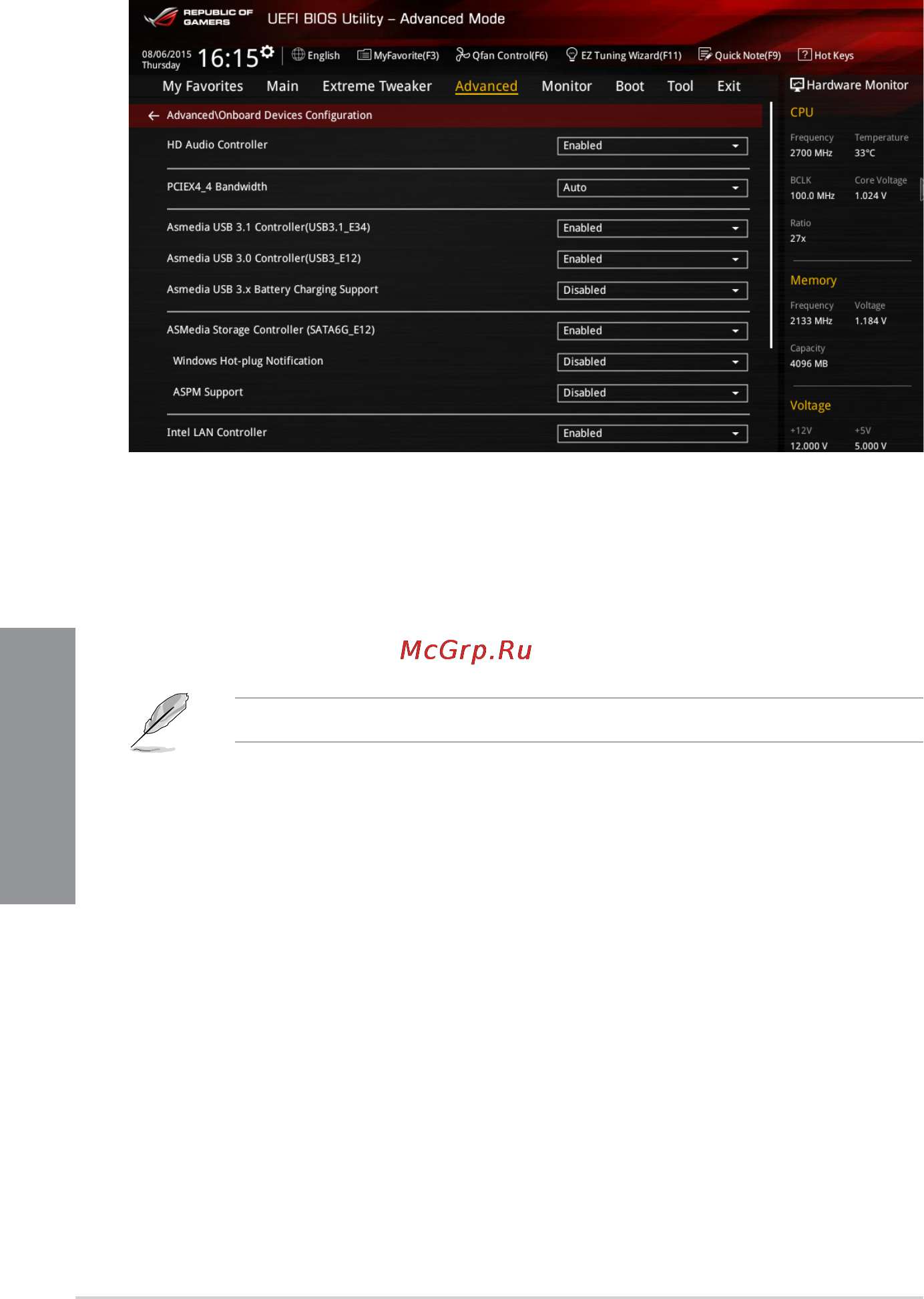

3.6.9 Onboard Devices Configuration
Scroll down to view the other BIOS items.
HD Audio Controller [Enabled]
[Disabled] HDA will be unconditionally disabled
[Enabled] HDA will be unconditionally enabled
PCIEX4_4 Bandwidth [Auto]
[Auto] Run at X2 mode with SATA6G_56 enabled
[X4 Mode] X4 mode
SATA6G_56 will be disabled when [X4 Mode] is selected.
Asmedia USB 3.1 Controller(USB3.1_E34) [Enabled]
This item allows you to disable or enable the ASMedia USB 3.1 controller.
Conguration options: [Disabled] [Enabled]
Asmedia USB 3.0 Controller(USB3_E12) [Enabled]
This item allows you to disable or enable the ASMedia USB 3.0 controller.
Conguration options: [Disabled] [Enabled]
Asmedia USB 3.x Battery Charging Support [Disabled]
This item allows you to disable or enable the ASMedia USB 3.x battery charging support.
Conguration options: [Disabled] [Enabled]
