Asus rog maximus viii extreme [191/226] Chapter 4

ASUS MAXIMUS VIII EXTREME

4-41

Chapter 4

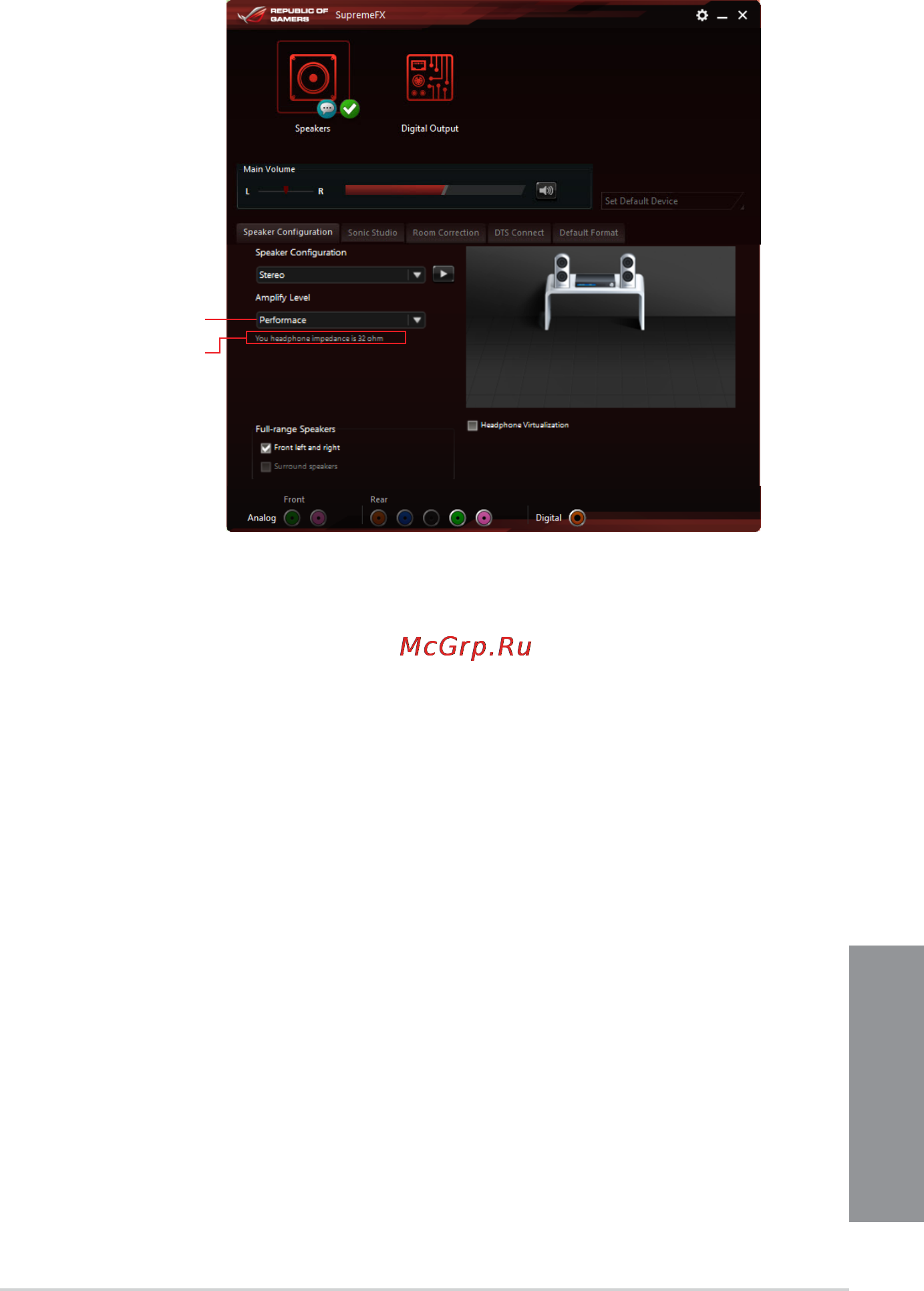

Afteryouclosethepop-window,SonicSenseAmpentersspeakercongurationanddisplays

theadjustedheadphoneimpedance.

Click to manually adjust the

amplify level

Displays the impedance of

your headphone
