Asus rog maximus viii extreme [192/226] Chapter 4

4-42

Chapter 4: Software Support

Chapter 4

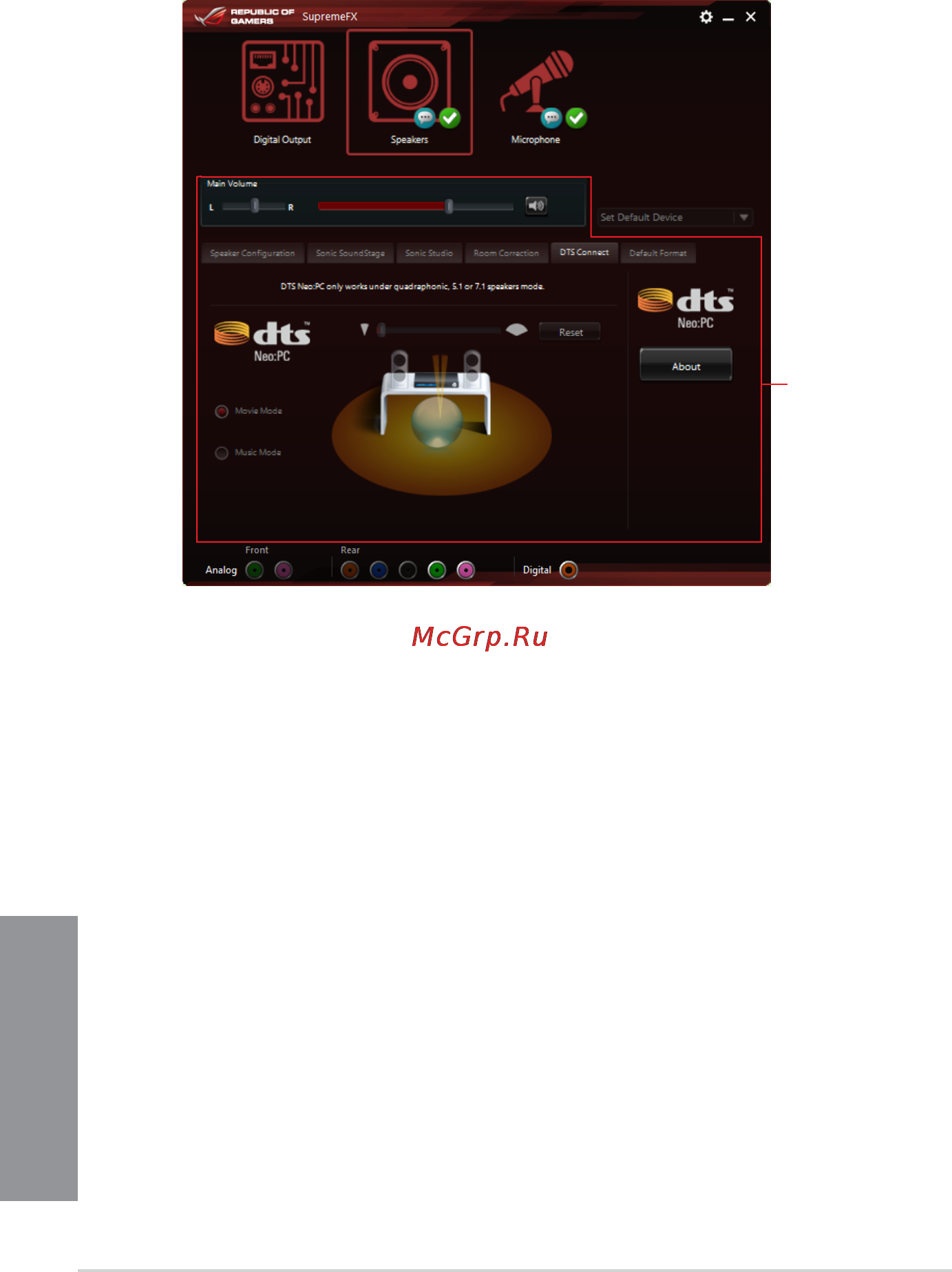

DTS Connect

DTSConnectdeliversexcellentaudioentertainmentacrossallformatsandworkswith4,5.1

and7.1channelsofincrediblesurroundsound.ItalsoallowsyoutoconnectyourPCtoa

hometheatresystem.

Control settings panel
