Asus rog maximus viii extreme [127/226] Hdd sdd smart information

ASUS MAXIMUS VIII EXTREME

3-35

Chapter 3

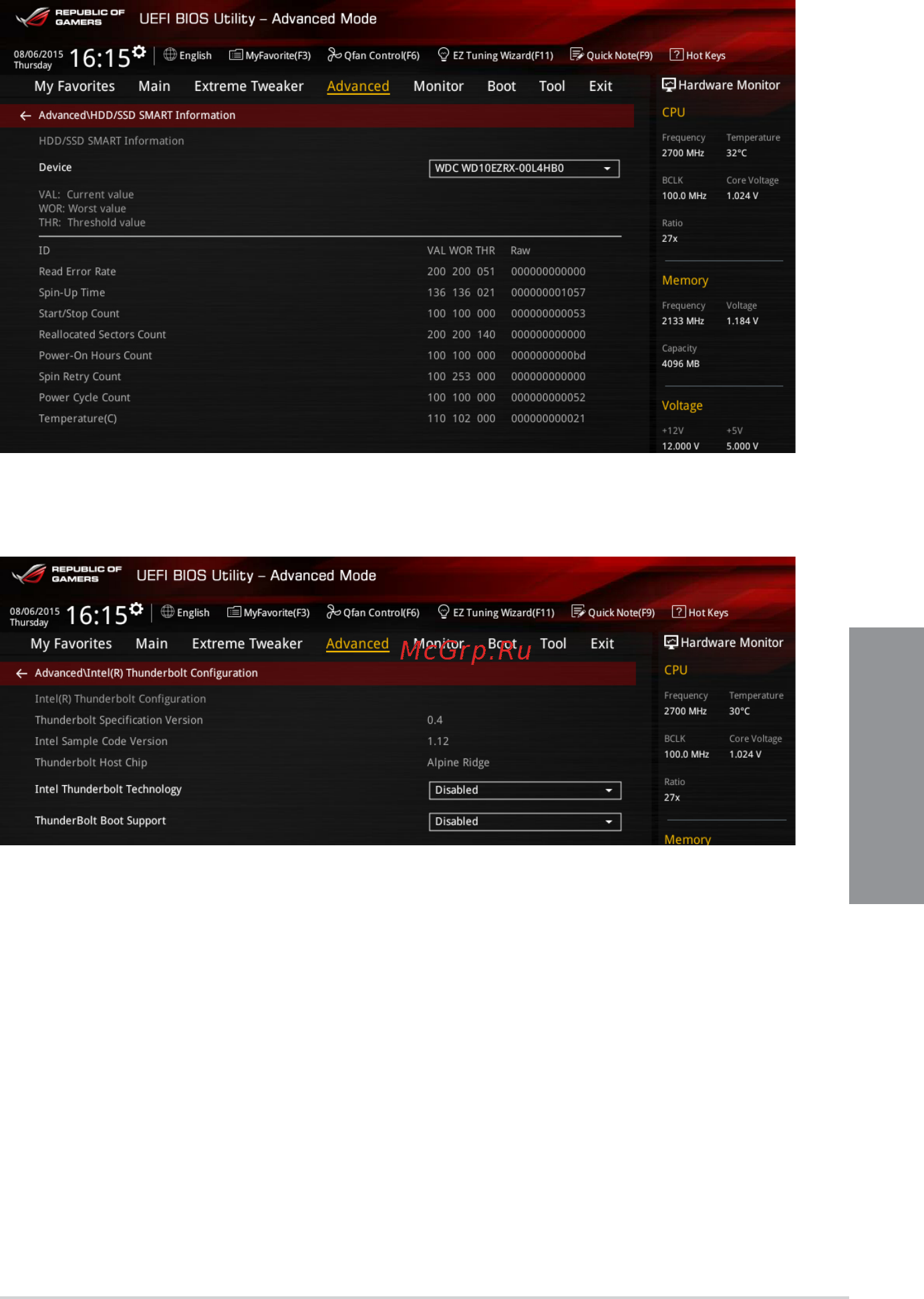

3.6.12 Intel(R) ThunderBolt

Intel Thunderbolt Technology [Disabled]

This item allows you to disable or enable the Intel Thunderbolt Technology.

Conguration options: [Fully Disabled] [Disabled] [Enabled]

ThunderBolt Boot Support [Disabled]

This item allows you to disable or enable the ThunderBolt Boot Support.

Conguration options: [Disabled] [Enabled]

3.6.11 HDD/SDD SMART Information

This menu displays the SMART information of the connected devices.
