Asus rog maximus viii extreme [45/226] Chapter 1

ASUS MAXIMUS VIII EXTREME

1-27

Chapter 1

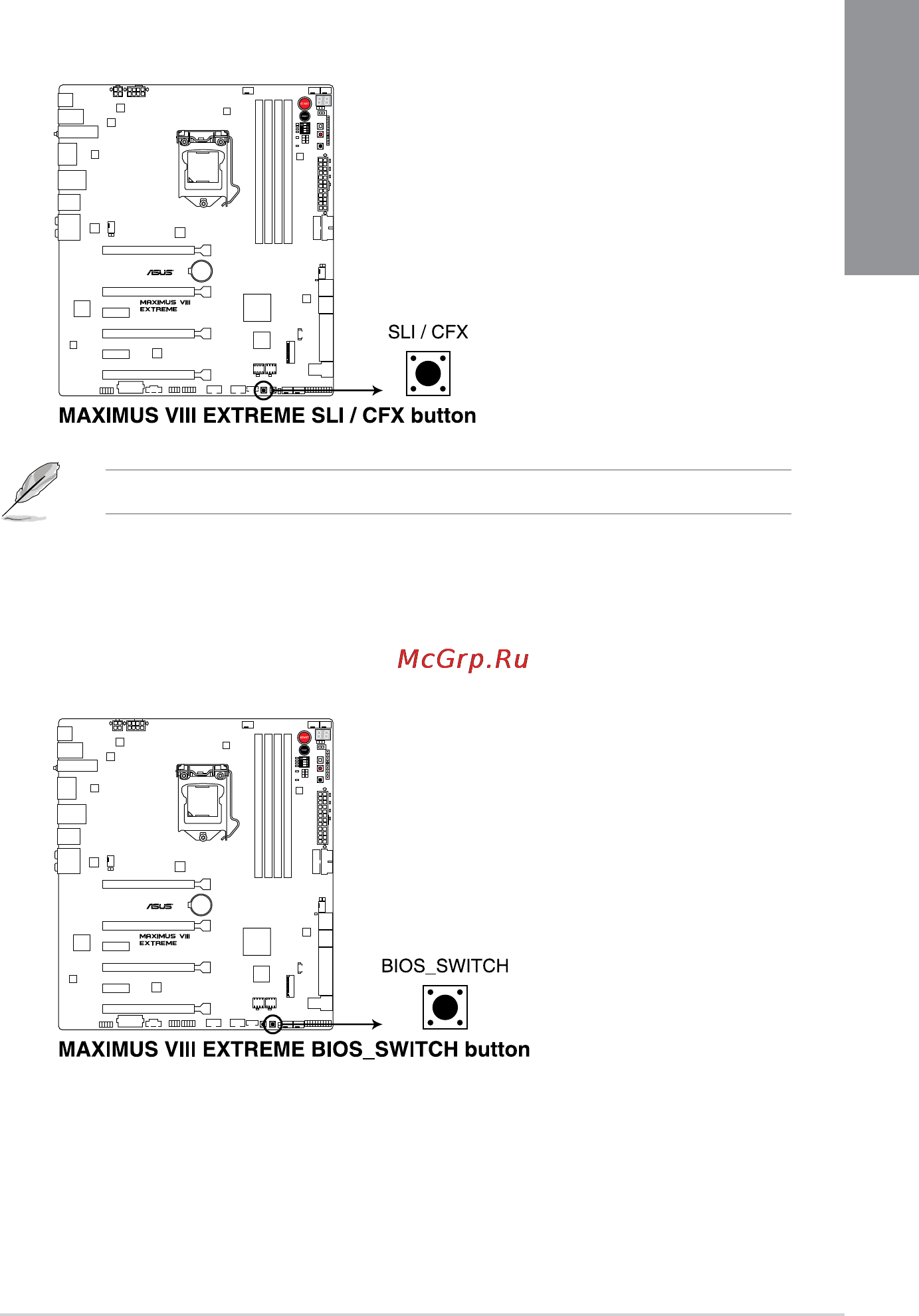

6. SLI/CFX button (SLI/CFX)

The LEDs next to the PCIe slots will indicate the recommended slots for your graphic

cards (2-Way/3-Way/4-Way) when the SLI/CFX button is pressed whilst your system is

turned off.

7. BIOS Switch button (BIOS_SWITCH)

The motherboard comes with two BIOS. Press the BIOS button to switch BIOS and

load different BIOS settings. The nearby BIOS LEDs indicate the currently selected

BIOS.

This function only works when the system is OFF.
