Asus rog maximus viii extreme [197/226] Chapter 4

ASUS MAXIMUS VIII EXTREME

4-47

Chapter 4

Click to begin the

speed test

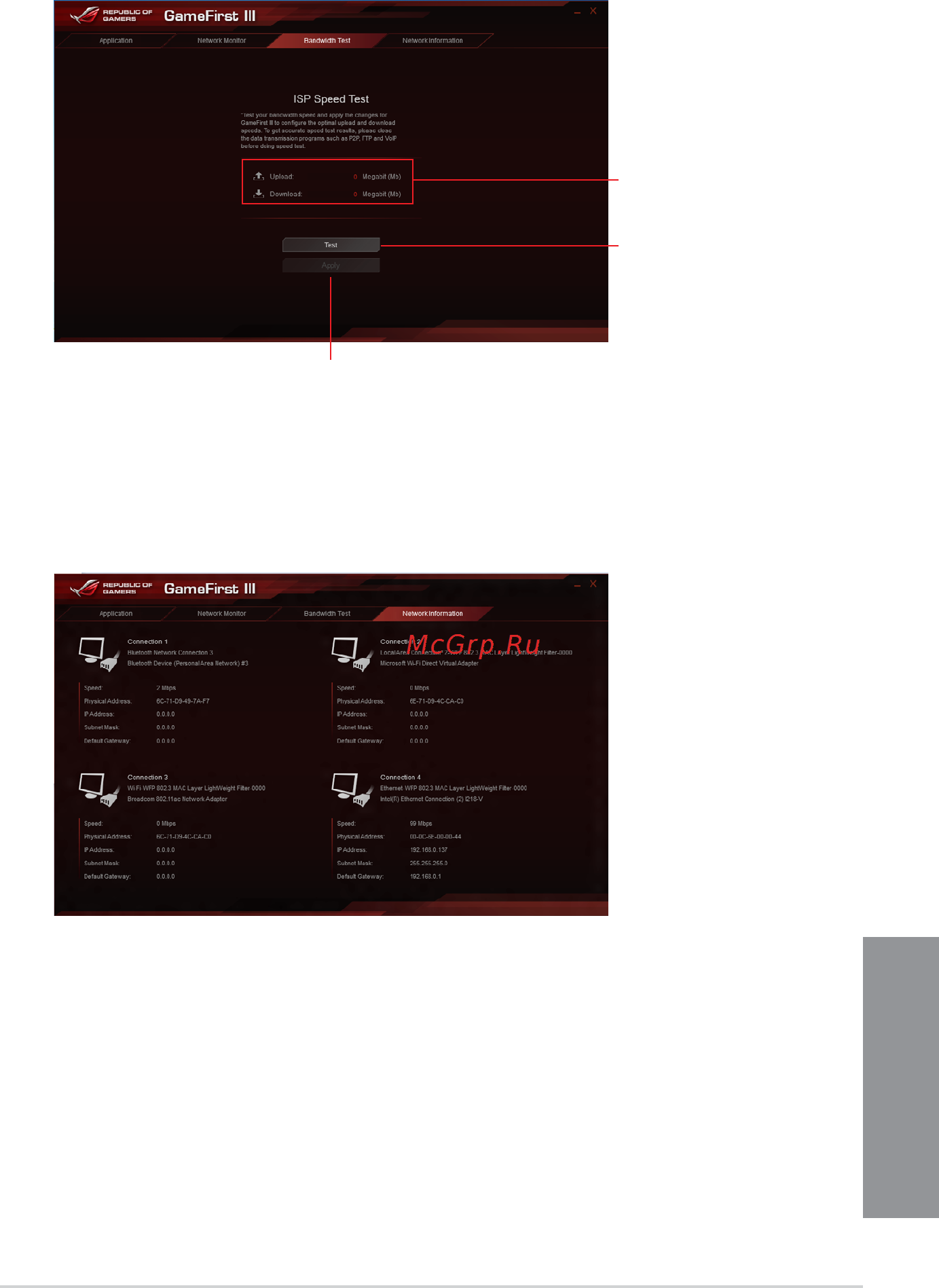

Bandwidth Test

YoucanusethisfeaturetotesttheInternetServiceProvider(ISP)speedormanuallykeyin

thedesireduploading/downloadingspeedandapplythespeedifneeded.

Key in the upload/

download speed

Click to apply the speed after manually keying in the

desired speed or after you performing the speed test

Using the Network Information

Displaysinformationaboutthephysicalnetworkcardsuchasspeed,physicaladdress,IP

address,subnetmask,anddefaultgateway.
