ZyWALL USG Support Notes
101
All contents copyright (c) 2010 ZyXEL Communications Corporation.

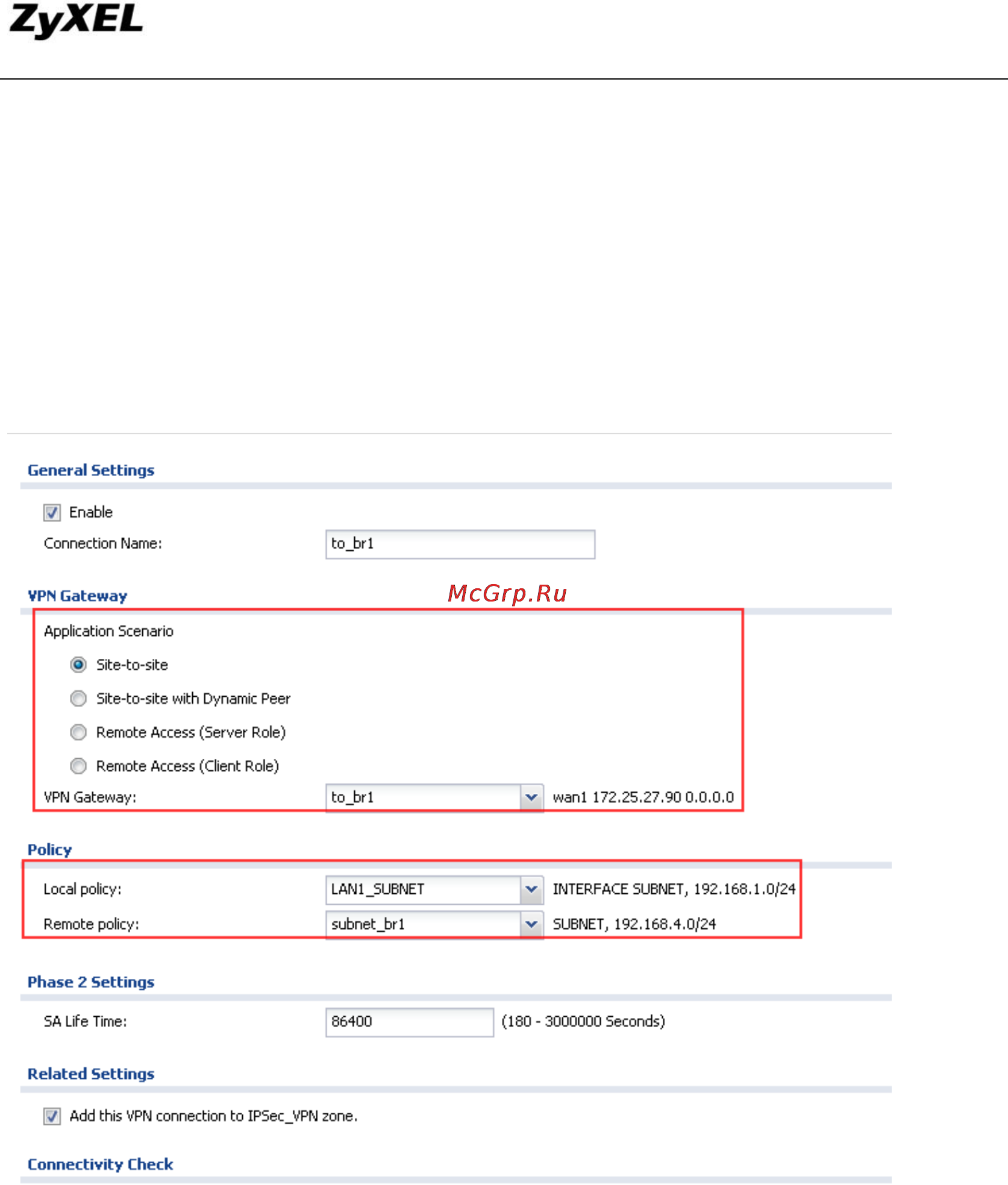

Step4. Go to Configuration > VPN > IPSec VPN > VPN Connection, add VPN
phase2 rules to Br1 and Br2.
To Br1:
Local policy: local LAN1 subnet (192.168.1.0/24)
Remote policy: Br1 local subnet (192.168.4.0/24)
To Br2:
Local policy: local LAN1 subnet (192.168.1.0/24)
Remote policy: Br2 local subnet (192.168.5.0/24)
