ZyWALL USG Support Notes
84
All contents copyright (c) 2010 ZyXEL Communications Corporation.

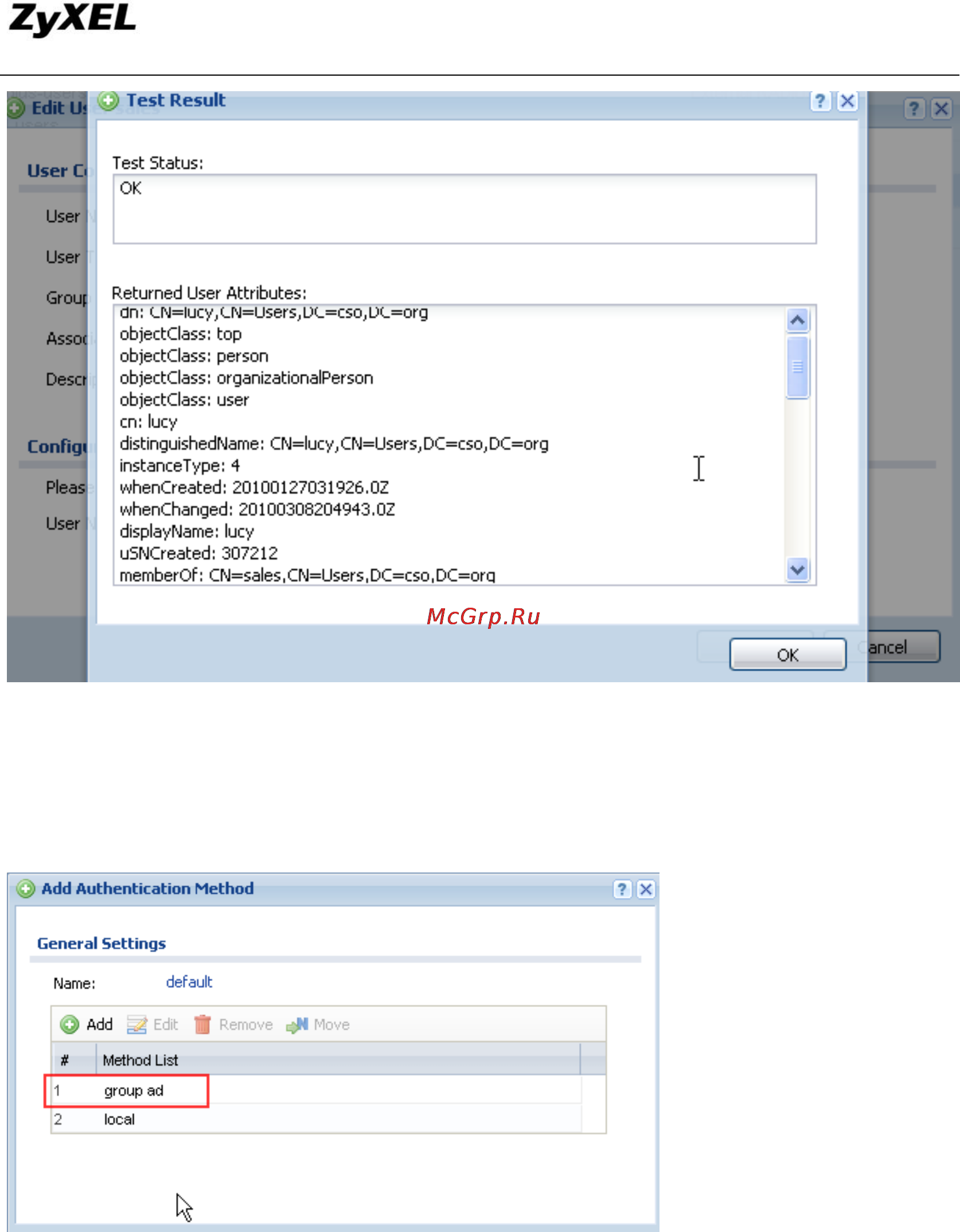

Step4. Go to Configuration > Object >Auth. Method, modify the authentication
method of “default”. Add “group ad”.
Step5. Go to Configuration > System > WWW > Service Control. In the
“Authentication” part, make sure the “Client Authentication Method” is chosen as
“default”.
