ZyWALL USG Support Notes
185
All contents copyright (c) 2010 ZyXEL Communications Corporation.

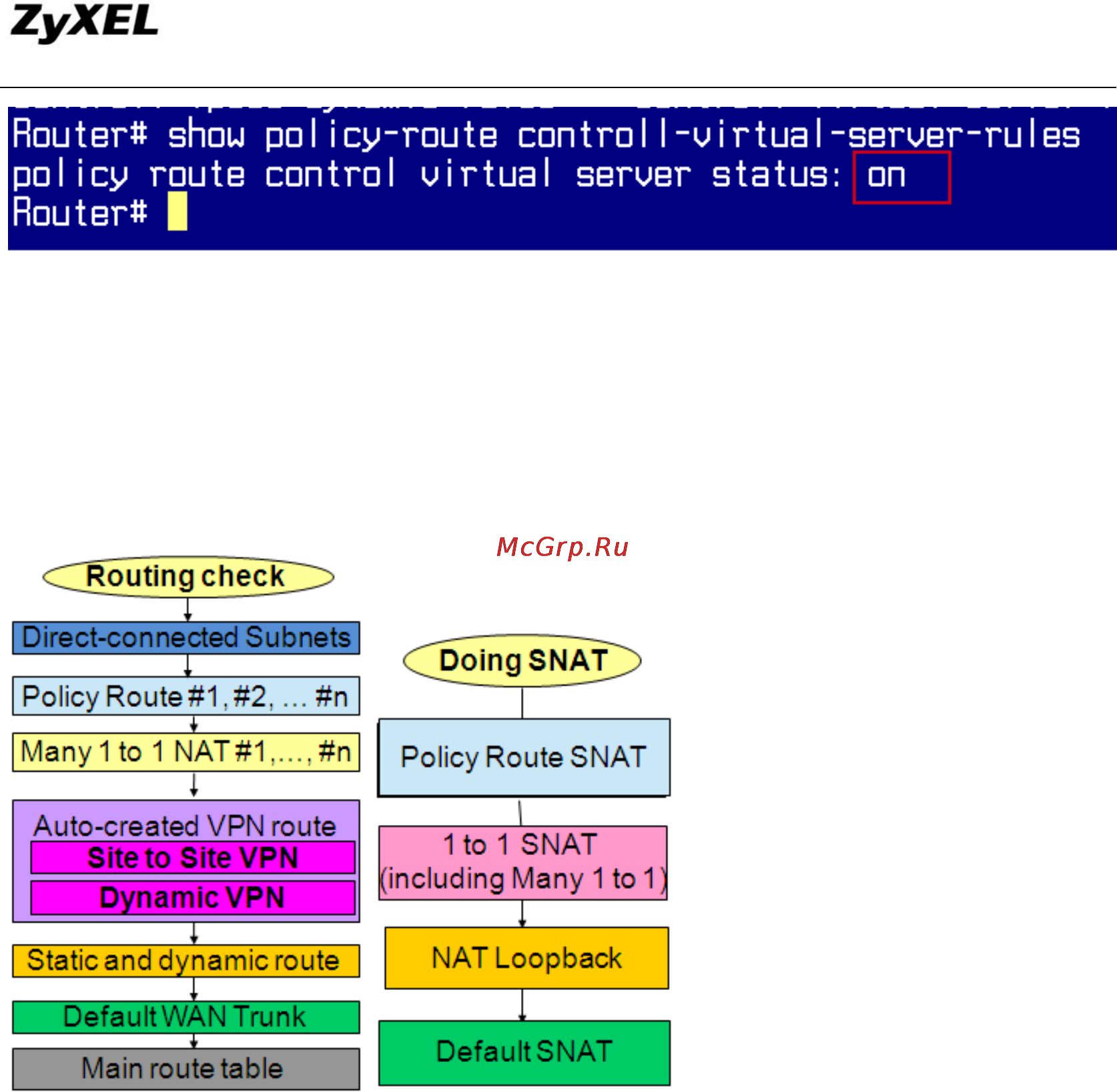

After all these configuration changes, your USG now totally follow the v2.20 new
routing and SNAT priority design. You can leave all the routing tasks of outgoing
traffic from local to internet, NAT 1:1 mapping, NAT Loopback, and VPN site-to-site
to the system automatically generated routes.
