ZyWALL USG Support Notes
180
All contents copyright (c) 2010 ZyXEL Communications Corporation.

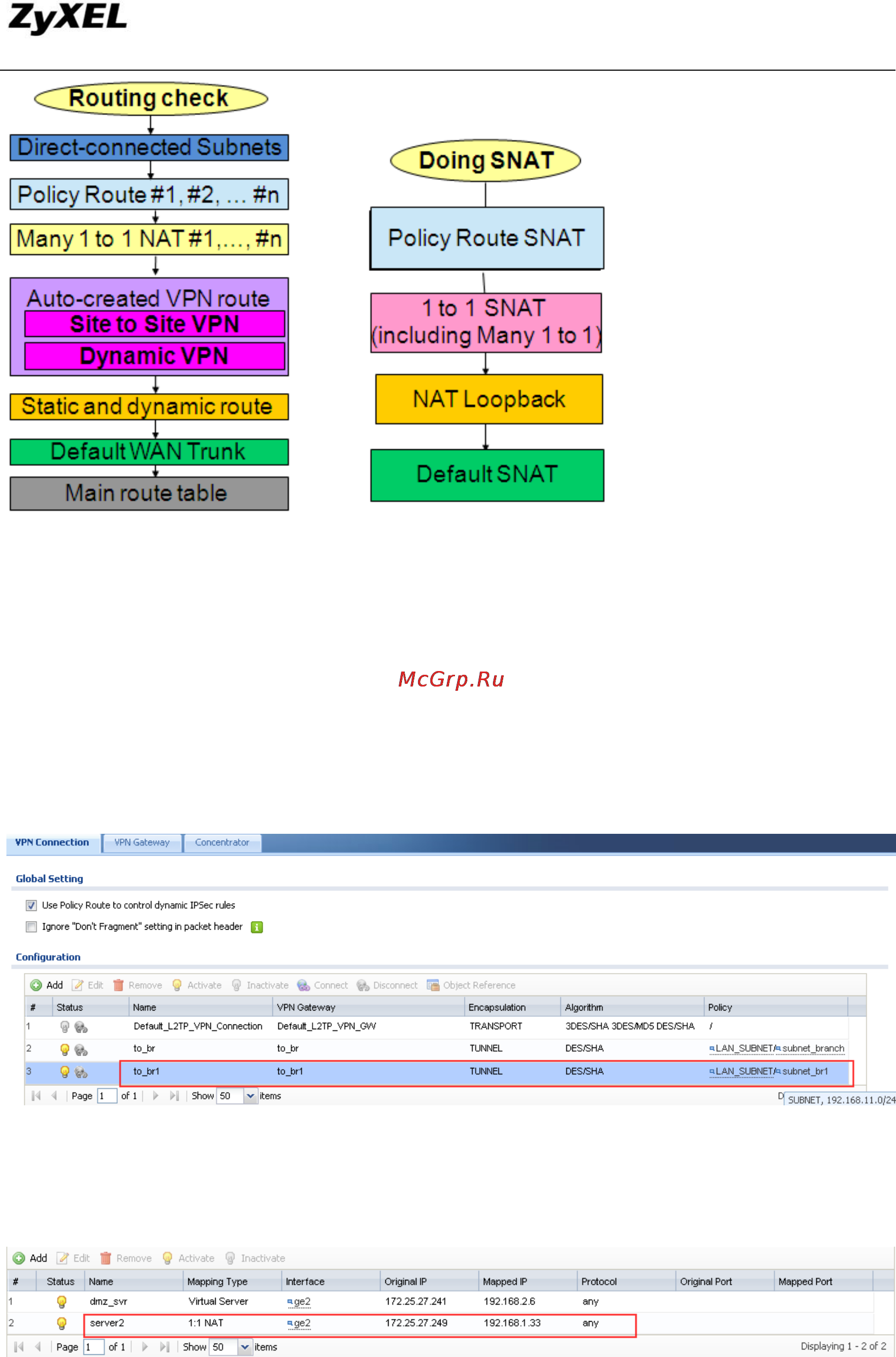

If you want to add new IPSec VPN rules or new 1:1 NAT rules based on original
configuration files, the system auto created routing rules for VPN traffic or 1:1
mapping rules will be overridden by the original policy routes according to the
routing priority table.
IPsec VPN phase2 rule:
1:1 NAT rule:
Policy routes:
