ZyWALL USG Support Notes
112
All contents copyright (c) 2010 ZyXEL Communications Corporation.

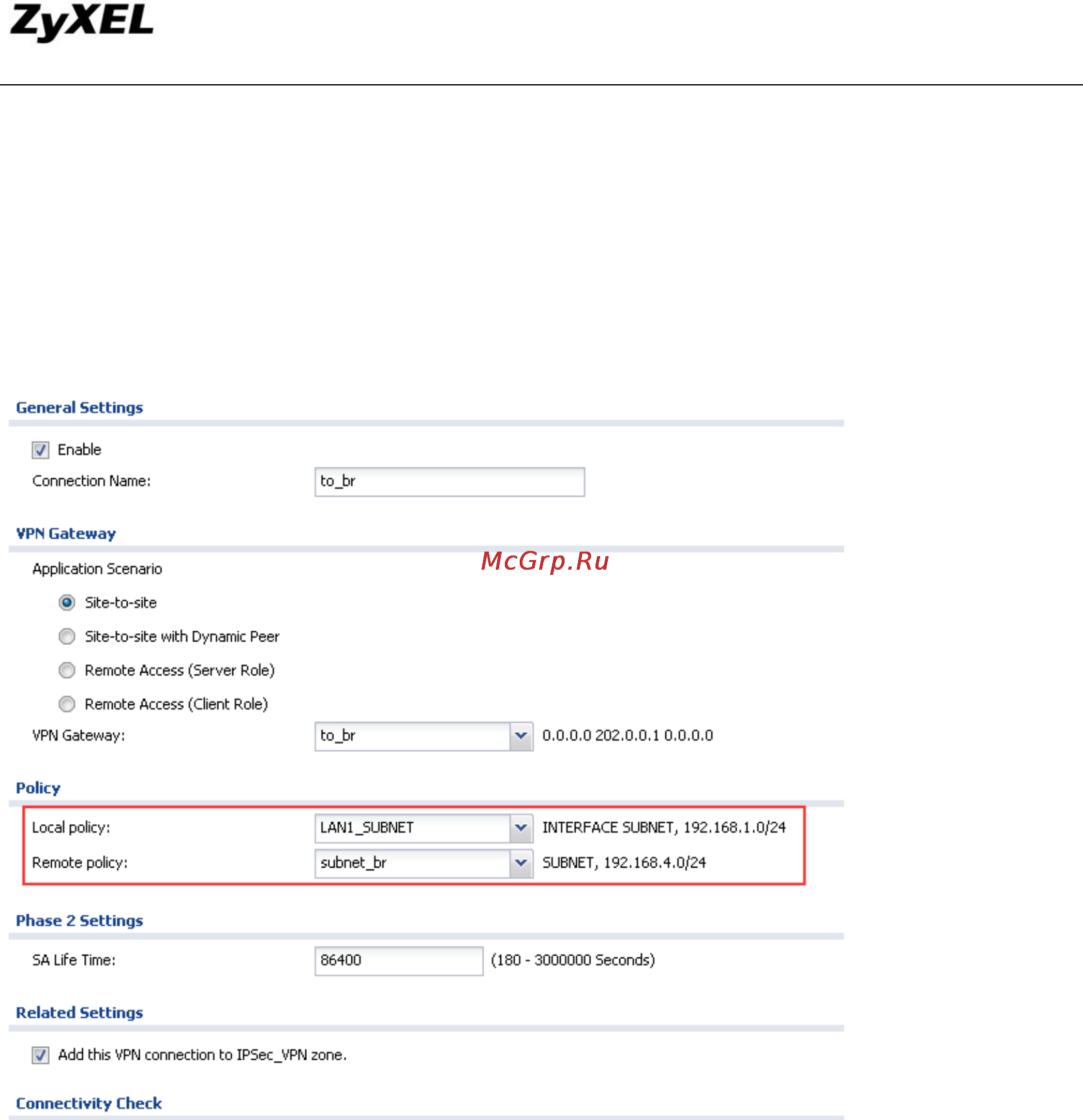

Step4. Go to Configuration > VPN > IPSec VPN > VPN Connection, add VPN
phase2 rule for tunnel to branch USG.
Local policy: local LAN1 subnet (192.168.1.0/24)
Remote policy: Branch local subnet (192.168.4.0/24)
In ZLD v2.20, system will automatically create routes for VPN traffic according to
VPN phase2 (VPN Connection) local/remote policy. Traffic whose source is in the
local policy and destination is in the remote policy will be sent to the corresponding
VPN tunnel. Thus there‟s no need to add policy route.
On branch USG:
Step1. Go to Monitor > System Status > Interface Status, check the interface IP
information, which will be used later in IPSec VPN configuration.
