ZyWALL USG Support Notes
123
All contents copyright (c) 2010 ZyXEL Communications Corporation.
On Br1 USG:

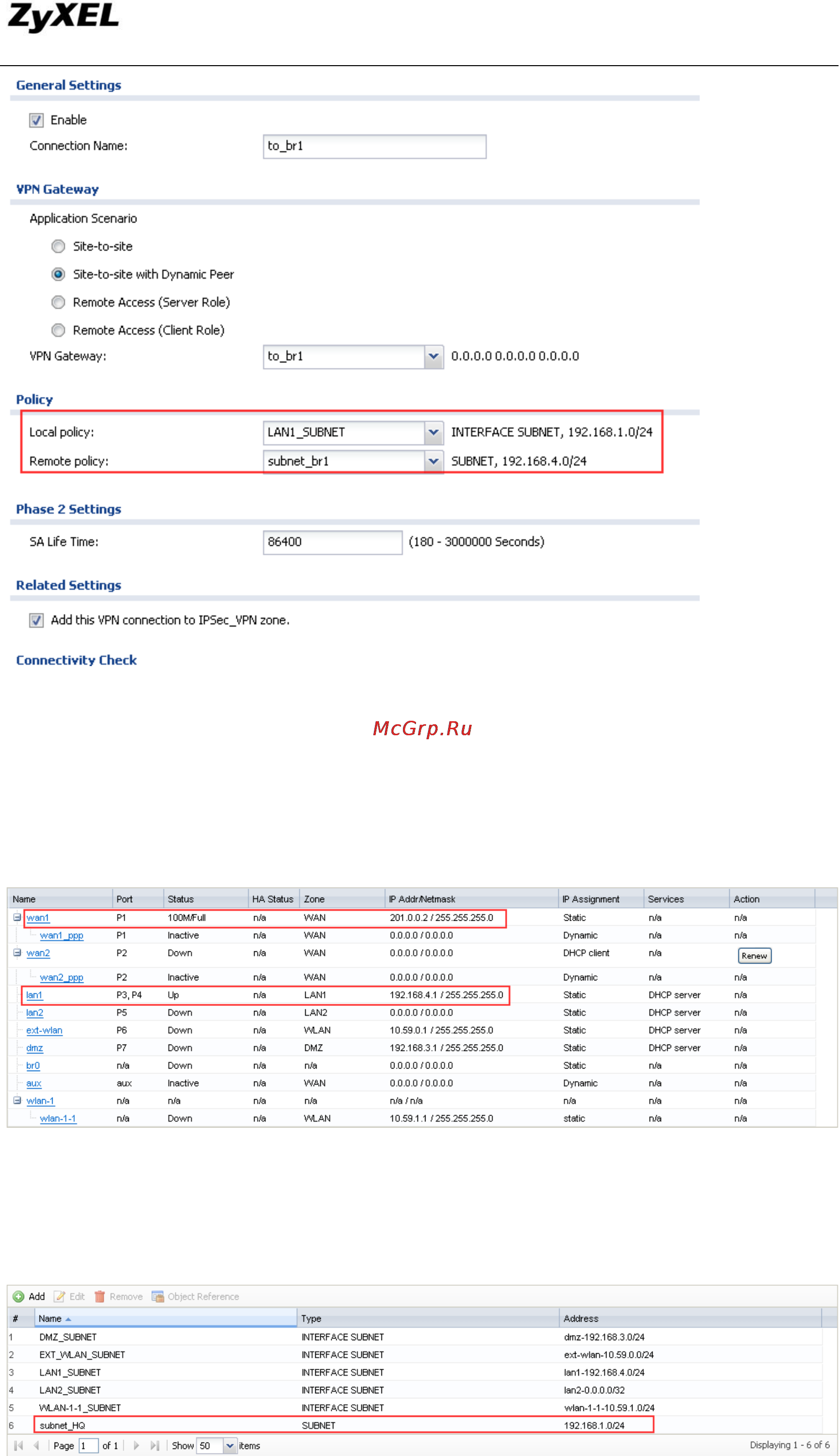

Step1. Go to Monitor > System Status > Interface Status, check the IP address
information for later use in IPSec configuration.
Step2. Go to Configuration > Object > Address, add address object for HQ local
subnet, subnet_HQ (192.168.1.0/24).
