ZyWALL USG Support Notes
113
All contents copyright (c) 2010 ZyXEL Communications Corporation.

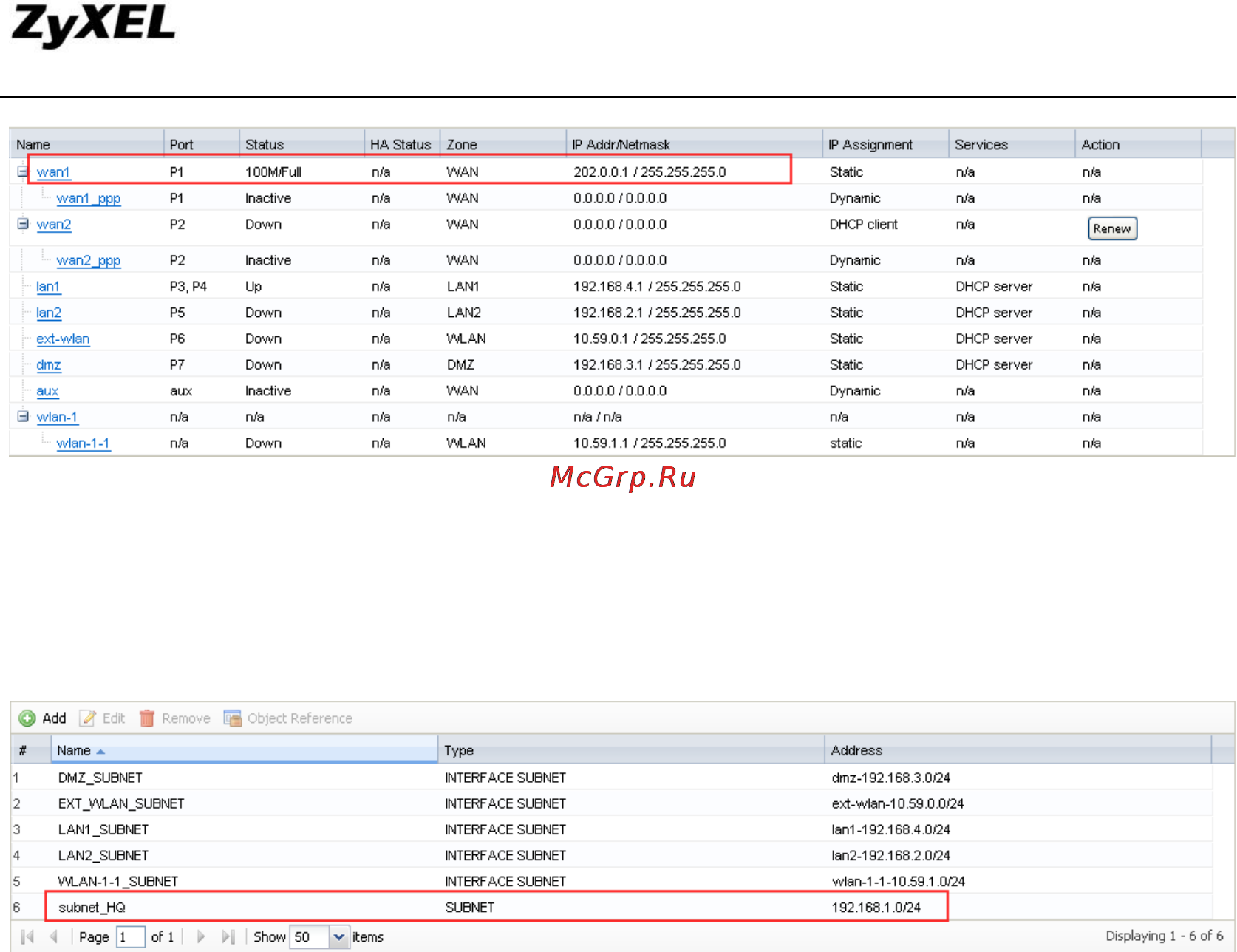

Step2. Go to Configuration > Object > Address, add address object for HQ office
local subnet subnet_HQ (192.168.1.0/24).
Step3. Go to Configuration > VPN > IPSec VPN > VPN Gateway, add VPN phase1
rule for tunnel to HQ office.
My Address: WAN IP (202.0.0.1)
Peer Gateway Address:
Please choose Static Address.
Primary: HQ WAN1 IP (200.0.0.1)
Secondary: HQ WAN2 IP (201.0.0.1)
Enable “Fall back to Primary Peer Gateway when possible”.
Set “Fall Back Check Interval” a period in the range of 60s~86400s.
