ZyWALL USG Support Notes
63
All contents copyright (c) 2010 ZyXEL Communications Corporation.

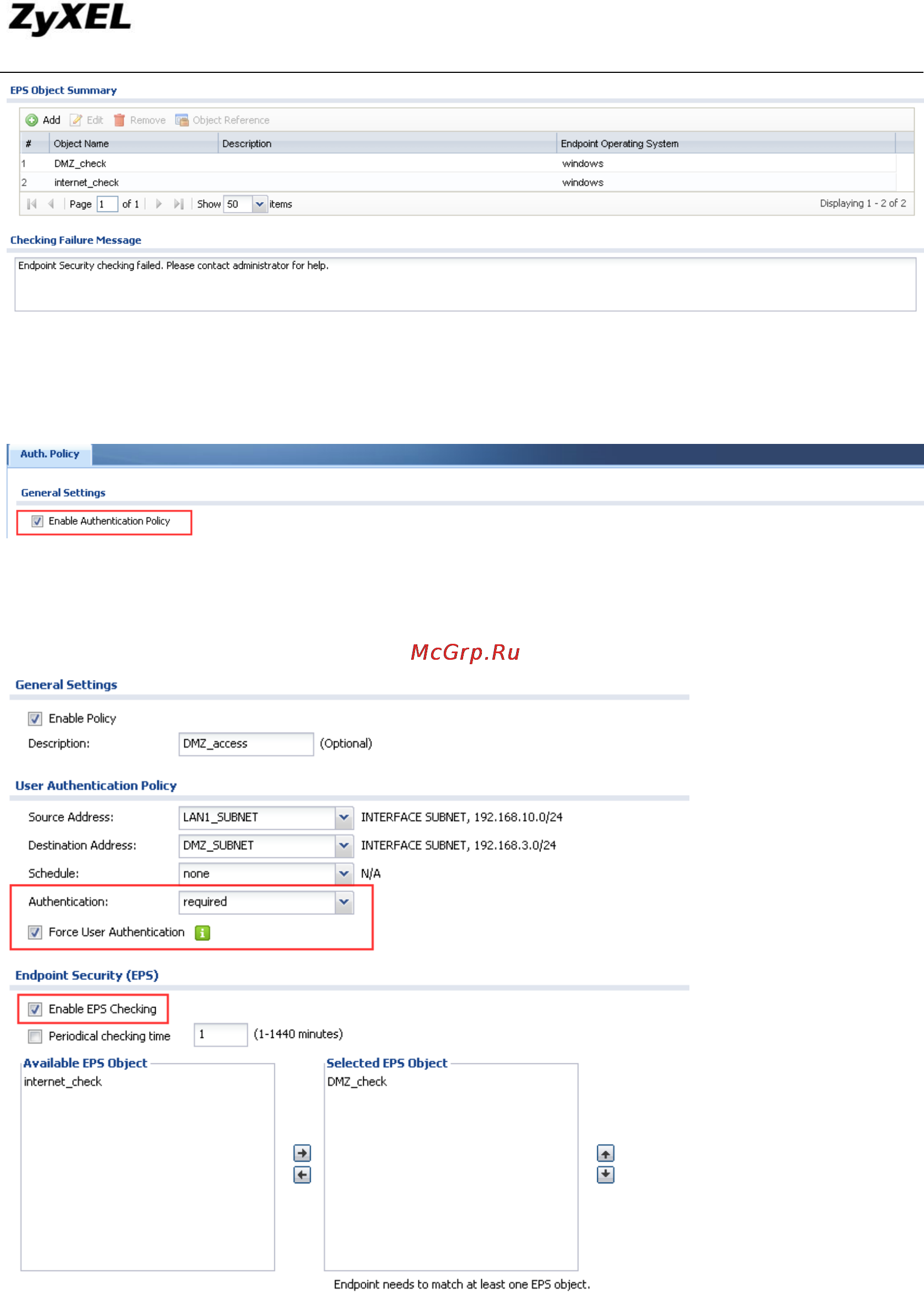

Step2. Go to Configuration > Authentication Policy, enable Authentication Policy.
Add authentication policies for DMZ access and internet access checking.
