ZyWALL USG Support Notes
26
All contents copyright (c) 2010 ZyXEL Communications Corporation.
1.3.2. Configuration steps

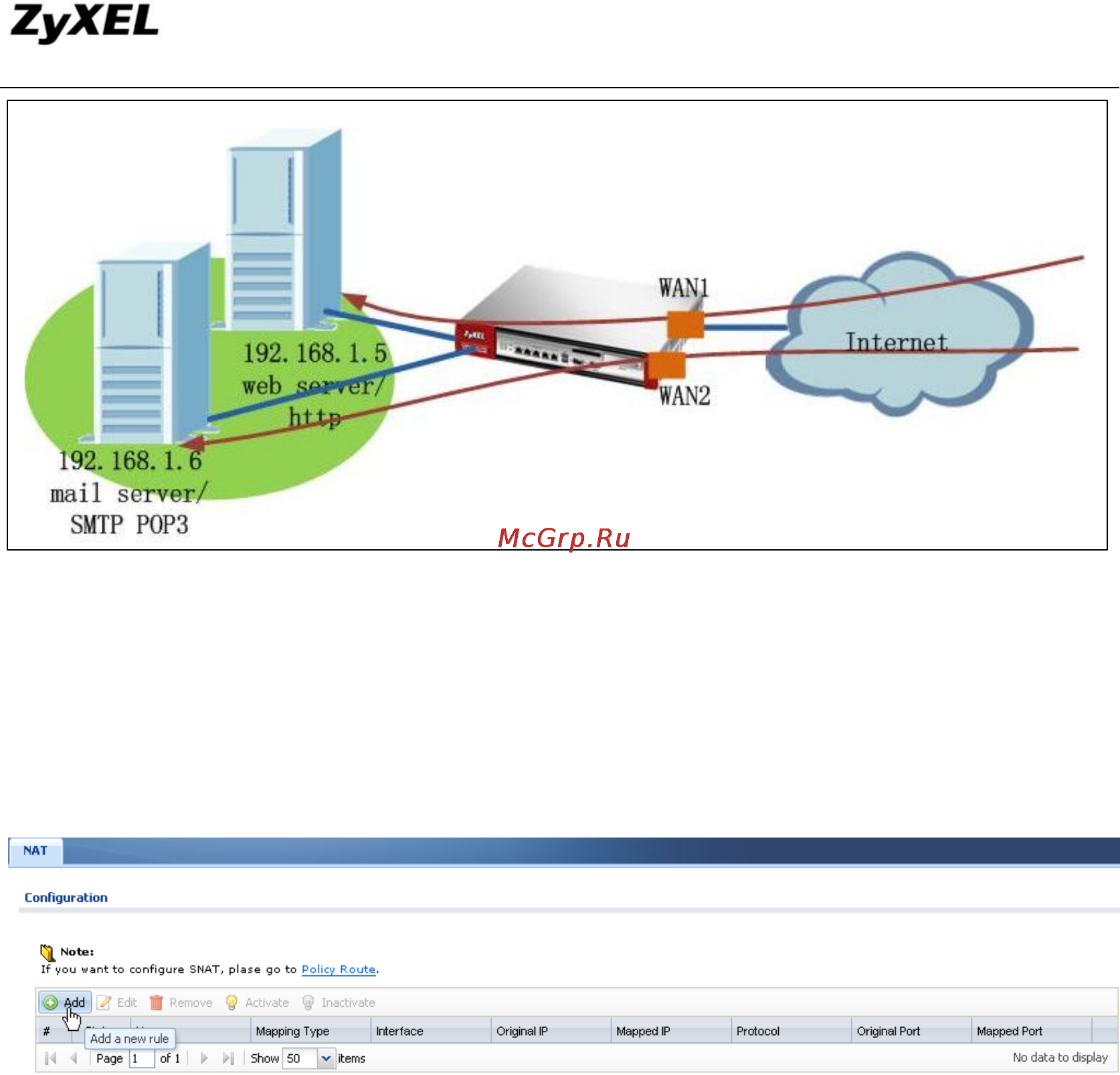

Step1. Go to Configuration > Network > NAT, click Add button to add one NAT rule.
Step2. In the rule editing window, fill in all the necessary fields.
Port Mapping Type: Select Virtual Server
Incoming Interface: For the web server, since you want it to be accessed from WAN1,
select wan1.
Original IP: You can choose User Defined, and manually enter the WAN1 IP. Or you
can first create one address object from the Create new Object field, and then choose
this object from the Original IP dropdown list.
Mapped IP: Specify the server IP address. In this case, it‟s 192.168.1.5. You may also
first create one object then select from the dropdown list.
Port Mapping: In this case, to avoid conflicting with the http port of USG itself, we
set the original port as TCP 8080, and mapped port as TCP 80.
