ZyWALL USG Support Notes
48
All contents copyright (c) 2010 ZyXEL Communications Corporation.

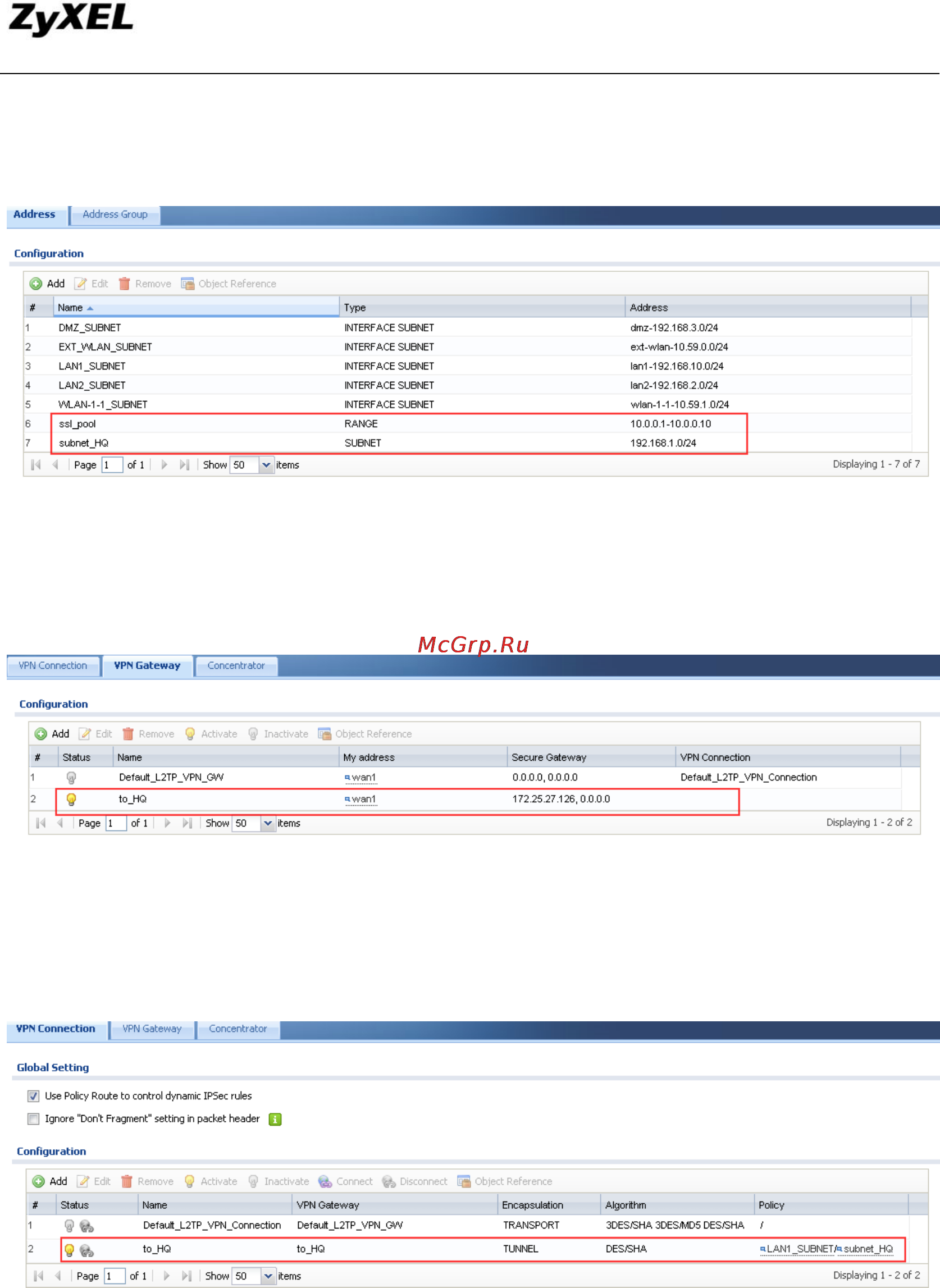

Step1. Go to Configuration > Object > Address, add two address objects. One is
subnet_HQ (192.168.1.0/24), the other is ssl_pool (10.0.0.1~10.0.0.10).
Step2. Go to Configuration > VPN > IPSec VPN > VPN Gateway, add one phase1
rule to HQ.
Go to Configuration > VPN > IPSec VPN > VPN Connection, add corresponding
phase2 rule to HQ. Local/Remote policy: 192.168.10.0/192.168.1.0.
Step3. Go to Configuration > Network > Routing > Policy Route, add one policy
route to route the SSL VPN traffic (from local subnet to the SSL VPN client) back to
the IPSec VPN tunnel.
Source: LAN1_Subnet (192.168.10.0/24)
Destination: ssl_pool (10.0.0.1~10.0.0.10)
Next Hop: IPSec VPN tunnel to_HQ
SNAT: none
