ZyWALL USG Support Notes
176
All contents copyright (c) 2010 ZyXEL Communications Corporation.

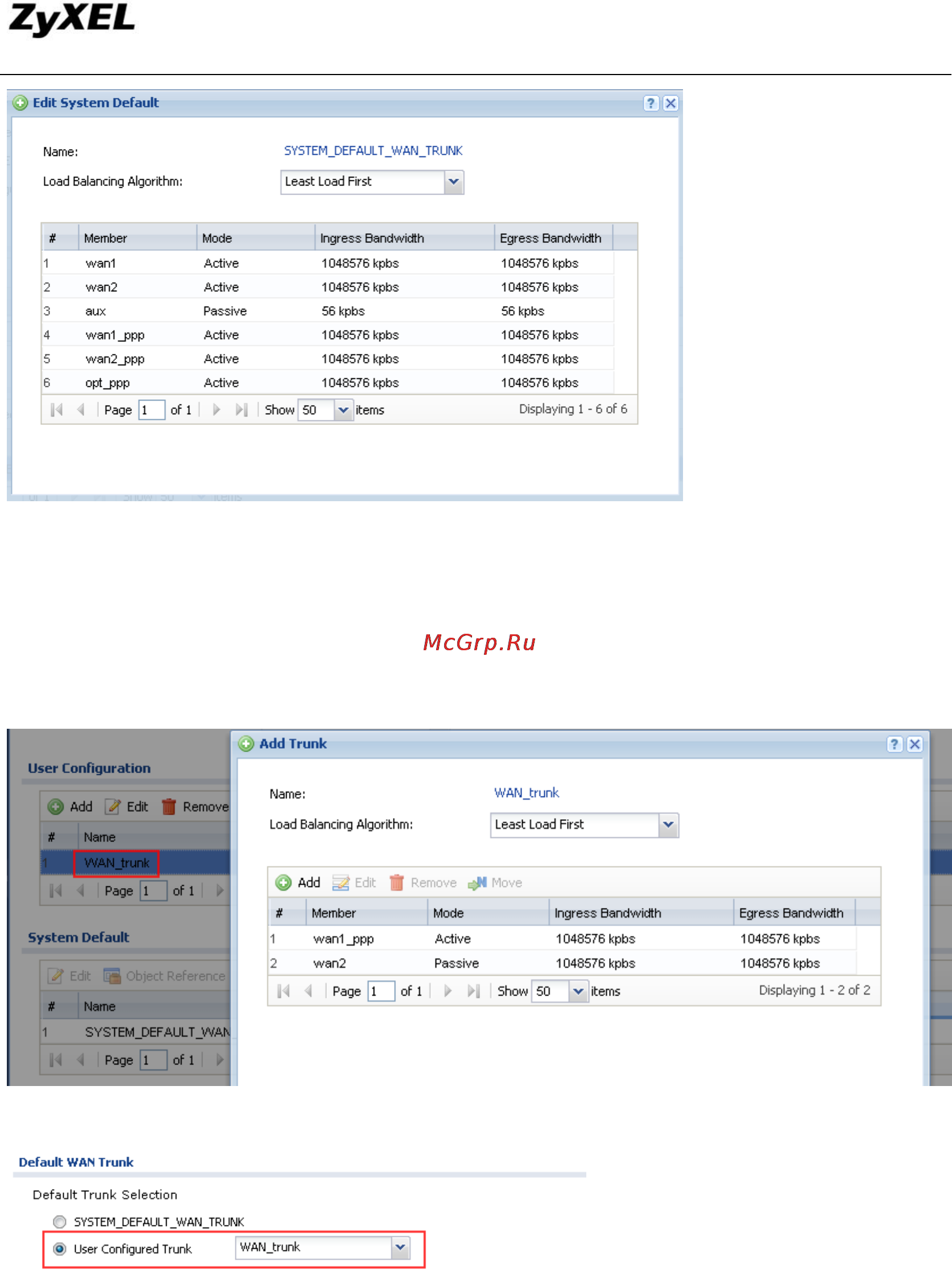

All the traffic received from Internal interfaces and destination to internet, will be sent
out from the system default WAN Trunk.
User can also define customized WAN Trunk, and set the customized WAN Trunk as
the system default WAN Trunk.
Q02. In ZLD v2.20, when I configure a NAT 1:1 mapping rule,
there’s not the option of “add corresponding policy route for
NAT 1:1 mapping”. Then how does the USG achieve the NAT
1:1 mapping?
