ZyWALL USG Support Notes
125
All contents copyright (c) 2010 ZyXEL Communications Corporation.
On Br2 USG:

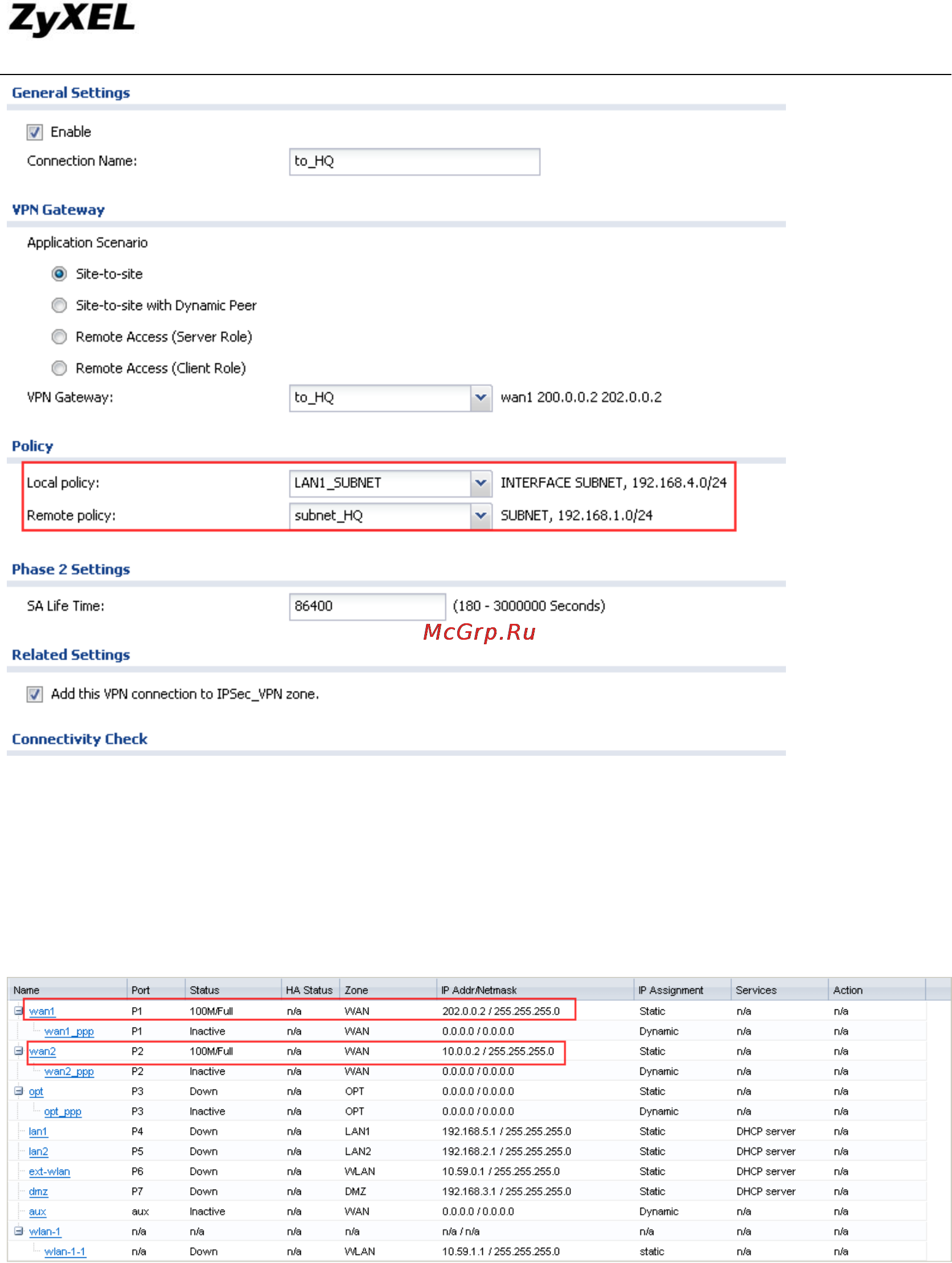

Step1. Go to Monitor > System Status > Interface Status, check the IP address
information for later use in IPSec configuration.
Step2. Go to Configuration > Object > Address, add address objects for HQ local
subnet and Br1 local subnet.
HQ local subnet: subnet_HQ (192.168.1.0/24).
Br1 local subnet: subnet_br1 (192.168.4.0/24)
