ZyWALL USG Support Notes
102
All contents copyright (c) 2010 ZyXEL Communications Corporation.

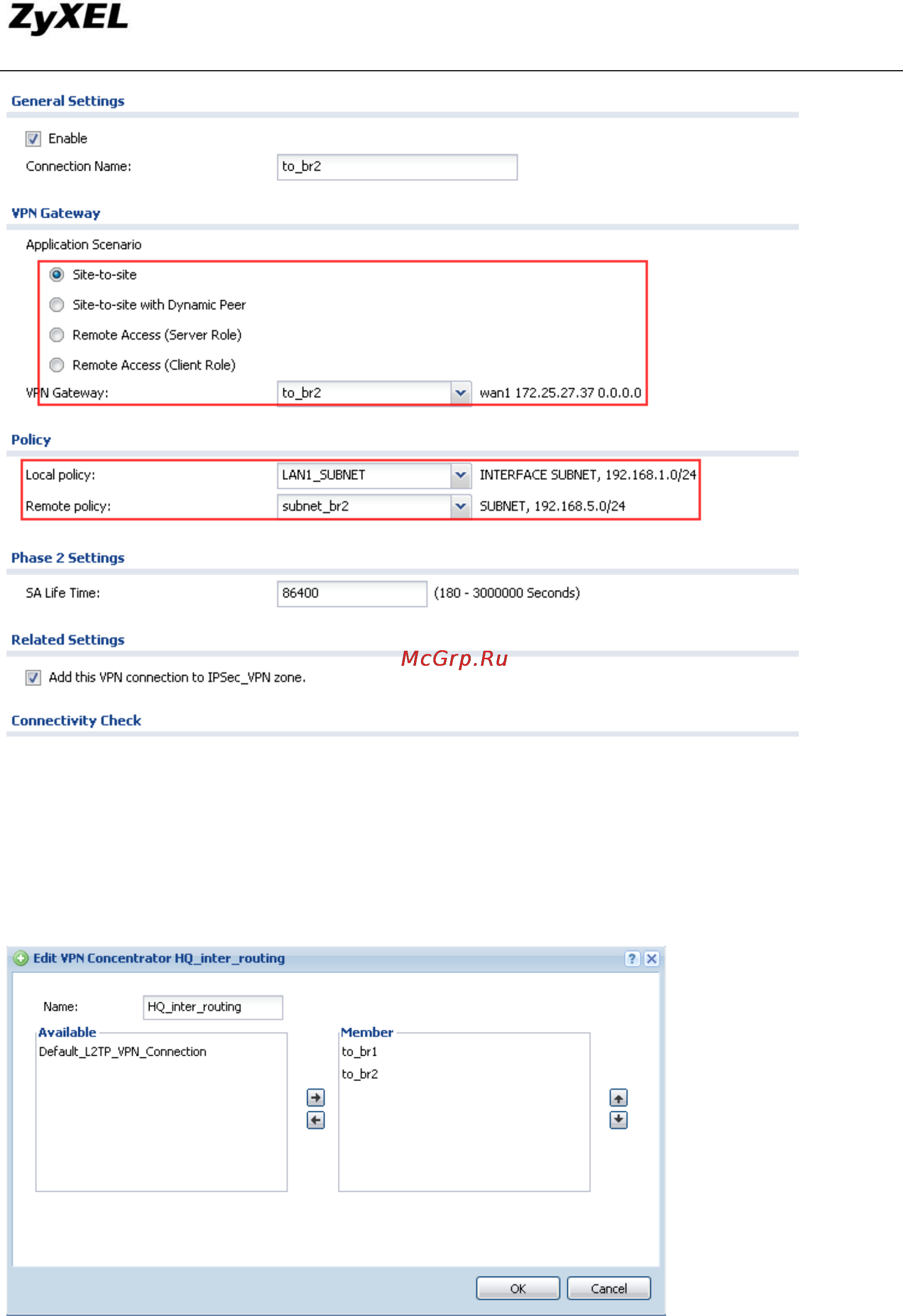

Step5. Go to Configuration > VPN > IPSec VPN > Concentrator, create on VPN
concentrator. This concentrator should include all the IPSec VPN tunnels to branch
offices.
Step6. Go to Configuration > Network > Zone. By default, Block Intra-zone is
enabled for IPSec VPN zone. We should disable it.
