Parts
333347K 107

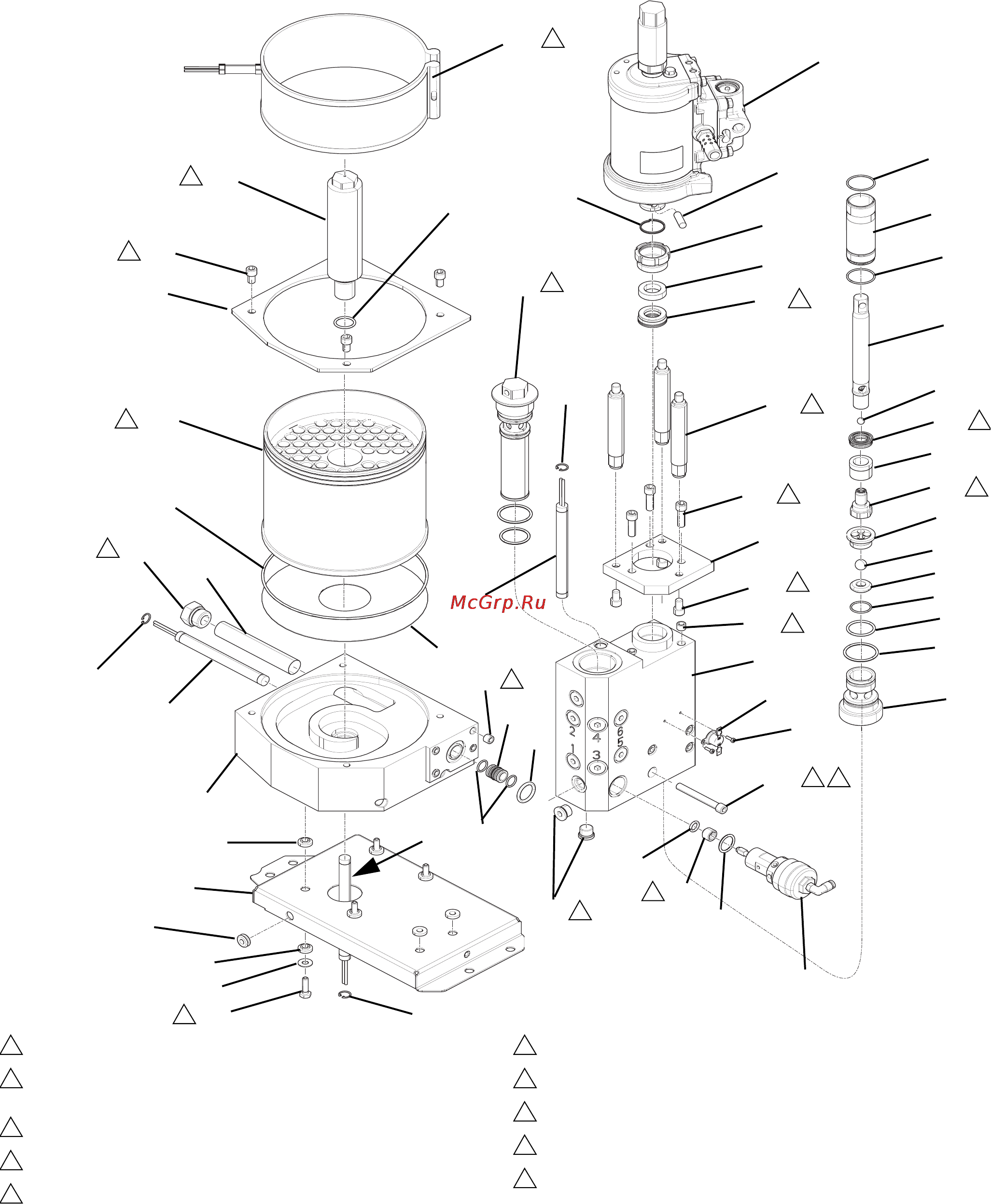

Melter and Pump Assembly
WLE
Lubricate all seals and o-rings with grease.
Orient melter (202) sensor hole in line with band heater (208)
clamp.
Torque to 5-11 ft-lb (7-15 N•m).
Torque to 24-30 ft-lb (33-41 N•m).
Orient u-cups (225, 234) with springs in direction shown.
Assemble inserts (252) 0.01-0.05 in. (0.3-1.3 mm) below surface.
Assemble inserts (252) 0.01-0.05 in. (0.3-1.3 mm) below surface.
Torque to 27-33 in.-lb (3-3.8 N•m).
Apply anaerobic thread sealant on threads.
Torque to 12-18 ft-lb (16-24 N•m).
1
2
3
4
5
6
7
8
9
10
HM25, 24V169
HM50, 24V542
208
2
205
4
211
10
204
254
202
2
207
253
215
10
213
206
210
201
249
257
258
249
268
259
3
206
209
252
6
269
214
270
247
10
210
236
4
206
218
239
238
235
233
234
220
240
219
5
3
3
211
252
203
251
255
246
242
243
244
245
10
7
9
10
8
217
216
217
223
224
225
226
222
221
227
228
229
231
232
230
5
4
