Maintenance
333347K 47
4. When the melter temperature is the desired tem-
perature, tur n main power switch OFF.
5. Disconnect cable from ADM, push cable through
plastic shroud, then remove plastic shroud from sys-
tem.
6. Place a piece of cardboard beneath the inlet filter
cap (215) to route fluid away from system into a
waste container in the event the adhesive is a fluid.
7. Use 1 in. socket to remove inlet filter cap (215).
8. If the adhesive is a thin enough gel to remove the
inlet filter: Use an o-ring pick or small allen wrench
to remove filter screen (213) from system.
Otherwise:
a. Install inlet filter cap (215).
b. Install shroud and ADM.
c. Tur n main power switch ON.
d. Once ADM software finishes starting up,
press to enable the heaters.
e. Wait for temperature to rise 20°F (11°C) beyond
previous temperature.
f. Go to step 4.
9. Slide new screen (213) into melter base
manifold (201).
10. Install filter cap (215) then use a 1 in. socket to
tighten.
11. Feed ADM cable through plastic shroud (29) then
install shroud onto system. Connect cable to
ADM (30).
Replace Funnel Filter
Disassembly (see FIG. 27):
1. Turn main power switch OFF.
2. Rotate funnel cap (706) and remove. Lift out funnel
filter (705).
Reassembly (see FIG. 27):
1. Insert filter (705) in funnel assembly. Tighten funnel
cap (706) on funnel.

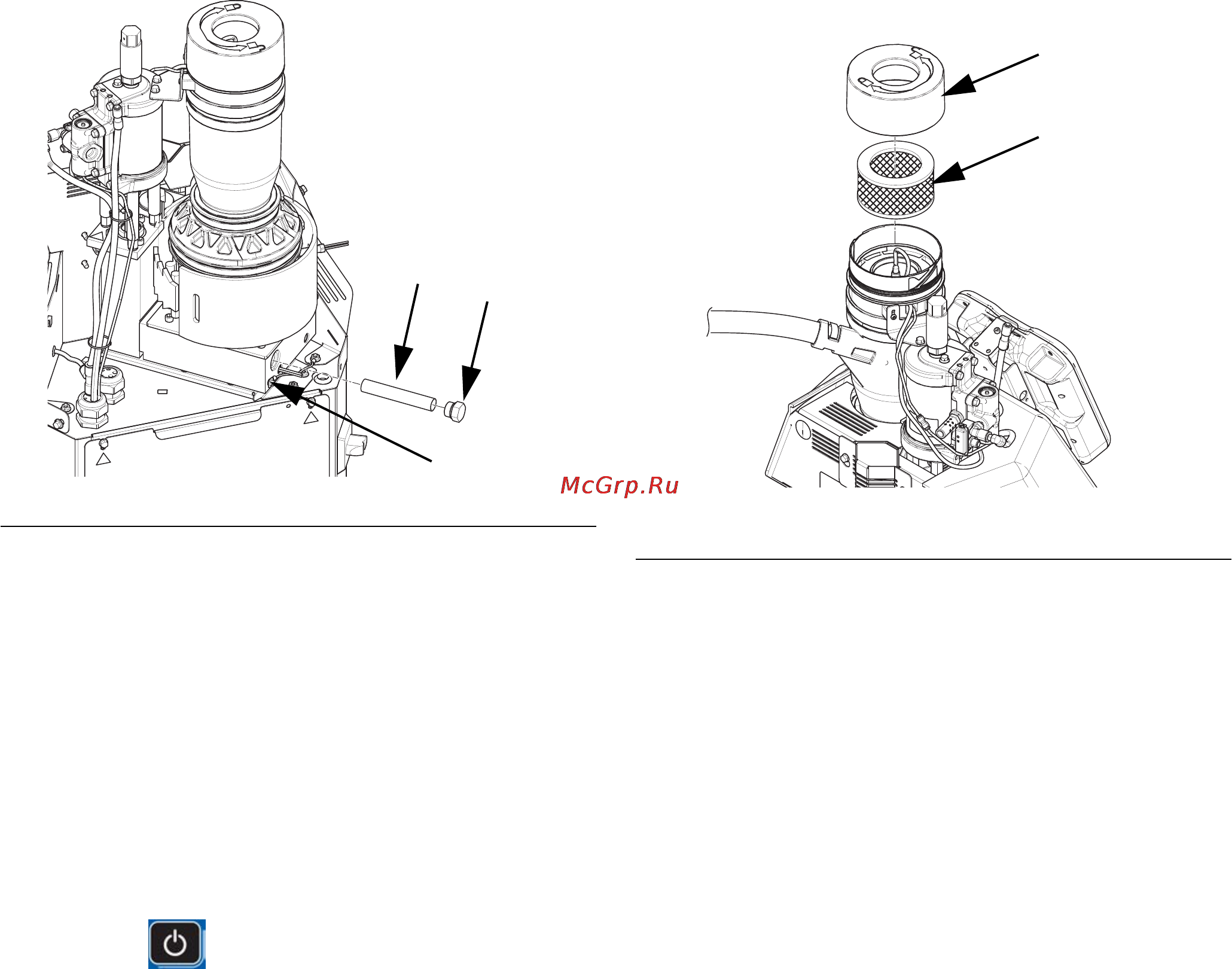

FIG.26
WLD
215
213
201
FIG.27
WLD
706
705
