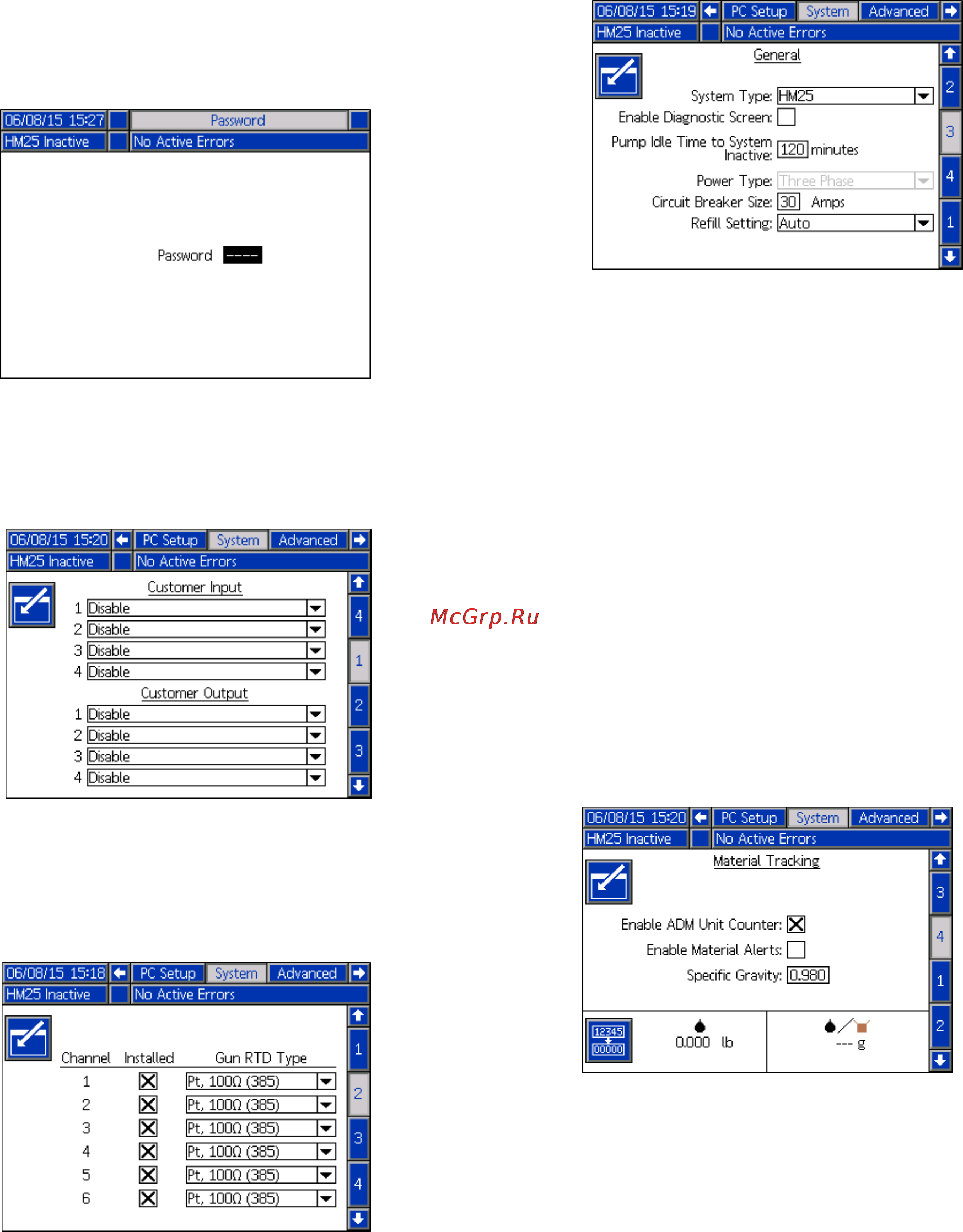

Setup Screens

NOTE: It is important to set all settings in the System

screens correctly to ensure optimal system perfor-

mance.

Password

If the password is not “0000”, the password must be

entered to access the setup screens.

System 1

A PLC can be used to control or monitor the system.

See PLC Connection on page 31 for instr uctions.

System 2

Use this screen to enable the installed channels and

specify the type of applicator RTD type used. See

Select ADM Settings on page 28.

System 3

System Type: Choose the model of the system.

Enable Diagnostic Screen: Choose whether to hide

the Diagnostic screen.

Pump Idle Time to System Inactive: The heating sys-

tem will be disabled after the pump has been idle for the

set amount of time

Power Type: Select the system power type.

Circuit Breaker Size: Select the circuit breaker size.

Refill Setting: To use the automatic vacuum transfer,

select Auto. To disable the automatic vacuum transfer,

select Manual. The main reason to disable automatic

refill is while flushing. However, if an issue is present

with the automatic refill system that cannot be solved in

a timely manner, manual refill can be used to return the

system to service. See Manual Refill on page 39.

See Select ADM Settings on page 28.

System 4

Use this screen to enable ADM unit counter, enable

material alerts and calibrate material tracking.
