Accessories
118 333347K

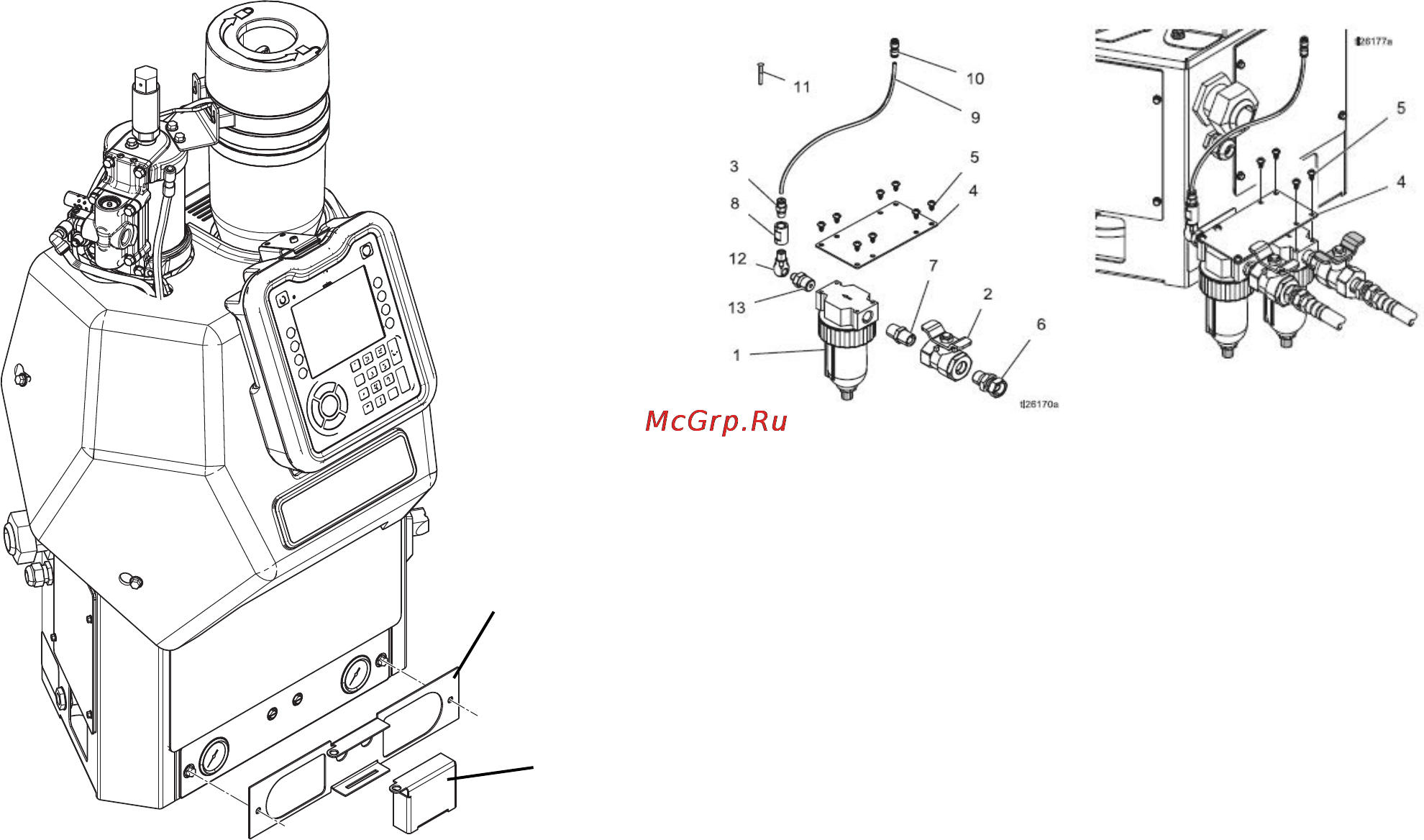

Air Adjustment Lock, 24R084
Panel enables locking access to the air adjustment
screws.
Air Adjustment Lock Installation
1. Remove screws from system air panel.
2. Use screws to install panel (801).
3. Snap bracket (802) into panel (801).
4. Insert lock through hole in panel and bracket to lock
access to the air controls. Lock not included in kit.
Feed Sensor Dedicated Air Kit,
17F699
For connecting a dedicated air source to the feed sensor
on InvisiPac
™
systems.
Ref Part Description Qty
801 --- PANEL, lock, air control 1
802 --- BRACKET, lock, air control 1
WLD
NOTE: Screws are part of the base system and are
not included in the kit.
801
802
Ref Part Description Qty
1 106148 FILTER, air, 3/8 npt 1
2 110224 VALVE, vented 2-way 1
3 198177 FITTING, push, straight 1
4 128264 BRACKET 1
5 128277 SCREW, self-tap, 10-24 x 3/8 8
6 155665 UNION, adapter 1
7 167702 NIPPLE, pipe 1
8 16T779 RESTRICTOR, air, 0.0225 in.
orifice
1
9 598095 TUBE, 5/32 in. OD, nylon; 3 ft
(1 m)
1
10 127660 FITTING, 5/32 in. OD tube,
push-to-connect
1
11 128292 PLUG, push-to-connect, 5/32 1
12 191892 FITTING, elbow, street, 90° 1
13 C20467 FITTING, nipple, reducing;
1/8-27 npt x 3/8-18 npt
1
14 110110 SEALANT, pipe, sst; 6 ml 1
