Graco InvisiPac HM50 [91/150] Systems with internal pattern controller
![Graco InvisiPac HM50 [91/150] Systems with internal pattern controller](/views2/1193782/page91/bg5b.png)

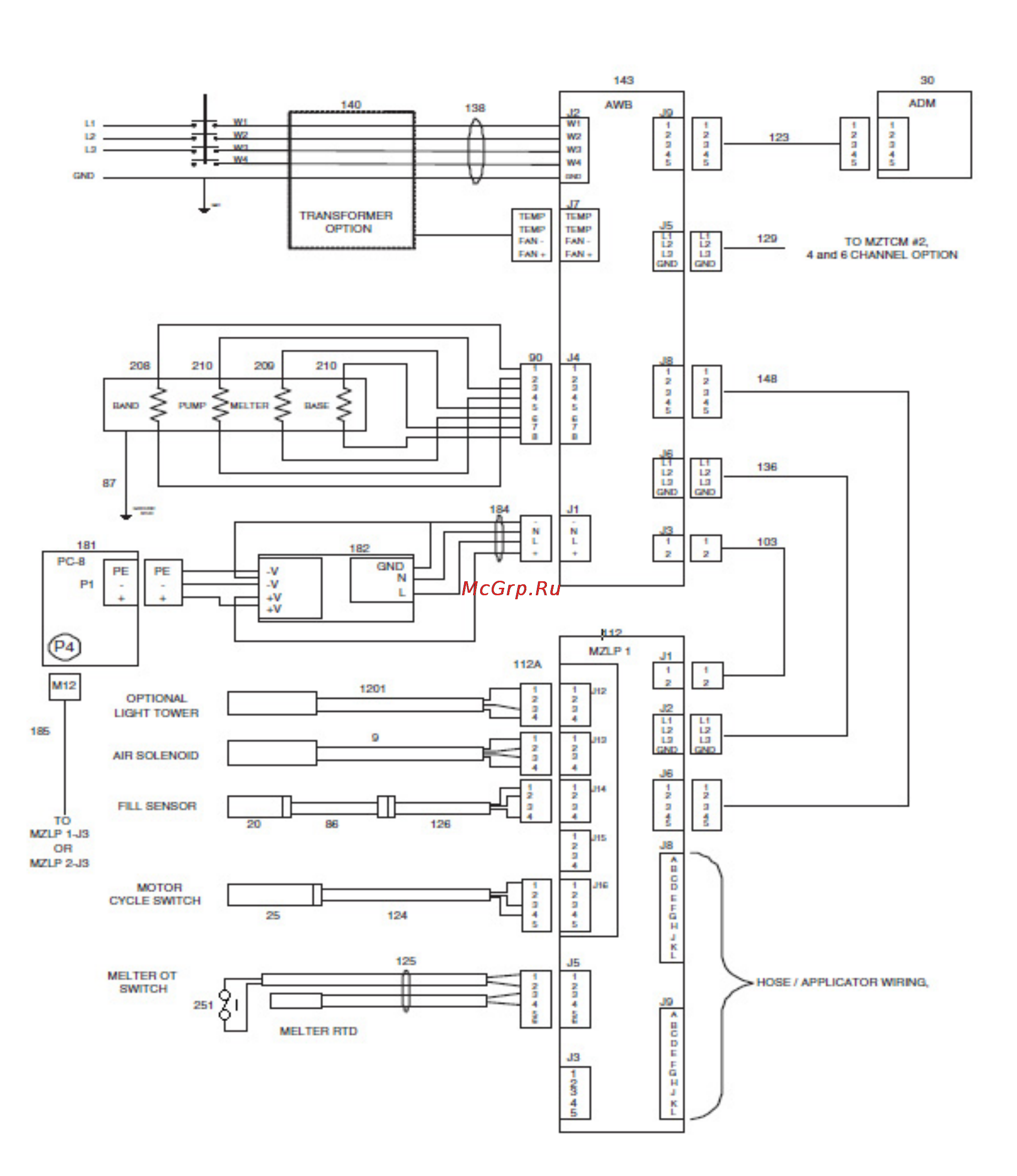

Electrical Schematics
333347K 91
Systems With Internal Pattern Controller
Review Connect Electrical
Cord section, Figure 16
To MZLP #2, 4, and 6
Channel Option, see
page 117 and 11.
To MZLP #2 or Pattern
Control Board, see page 88.
