Accessories
333347K 127

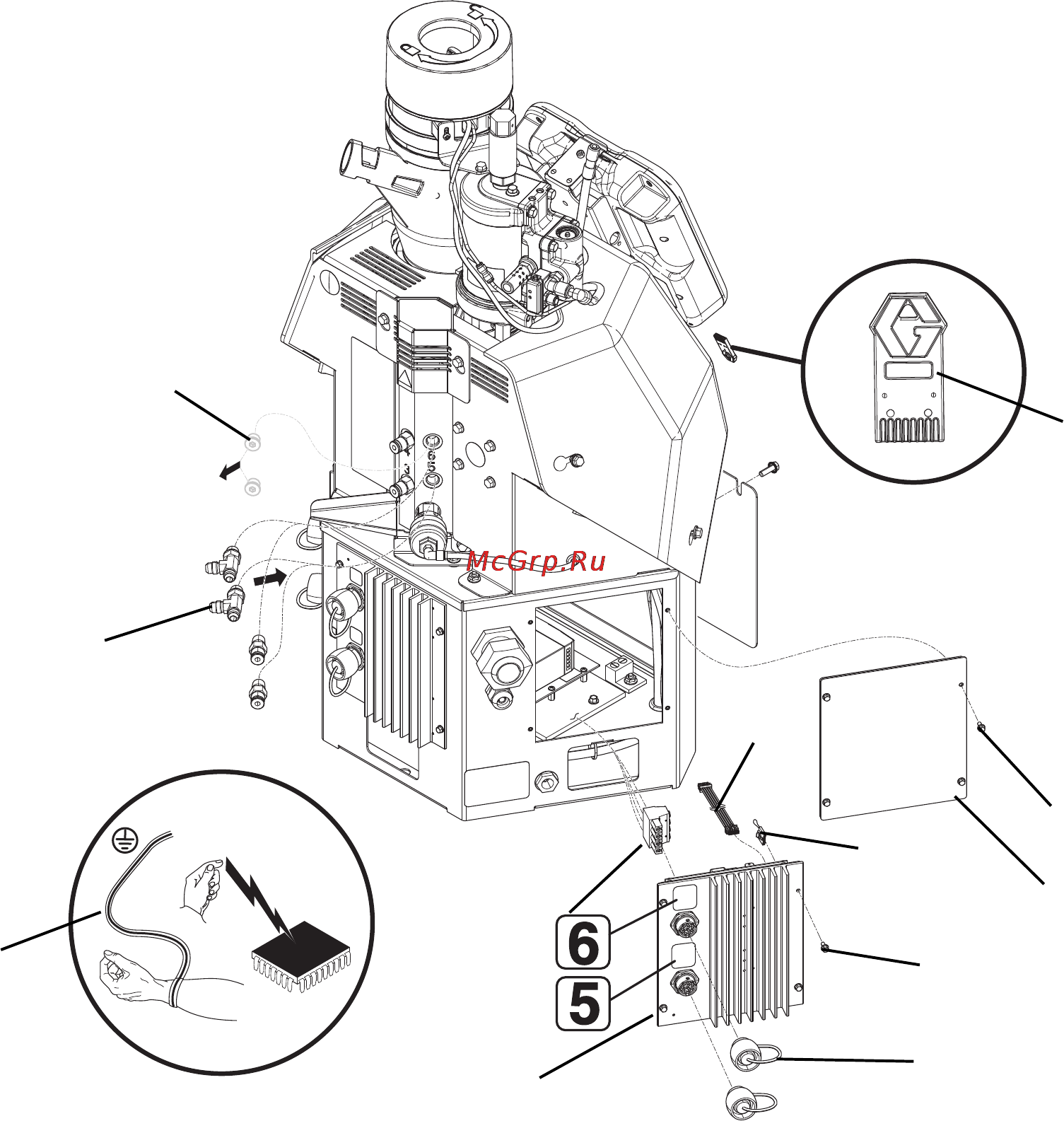

6 Channel Upgrade Kit, 24V529
Use this kit to upgrade a 4 channel system to a 6 channel system.
WLD
1301
1302
1304
1305
BB
BB
AA
1303
1306
1308
CC
1307
Ref Part Description Qty
1301 --- MODULE, GCA, MZLP 1
1302 16T087 CABLE, jumper, male/male, 4 in. 1
1303 112190 STRAP, wrist, grounding 1
1304 24R324 TOKEN, software upgrade 1
1305 16T440 CAP, jam nut, sealing 2
1306 --- HARNESS, MZLP #3 1
1307 16W035 CONNECTOR, jumper 1
1308 --- FITTING, tee 2
