Graco InvisiPac HM50 [112/150] Air controls assembly
![Graco InvisiPac HM50 [112/150] Air controls assembly](/views2/1193782/page112/bg70.png)
Parts
112 333347K

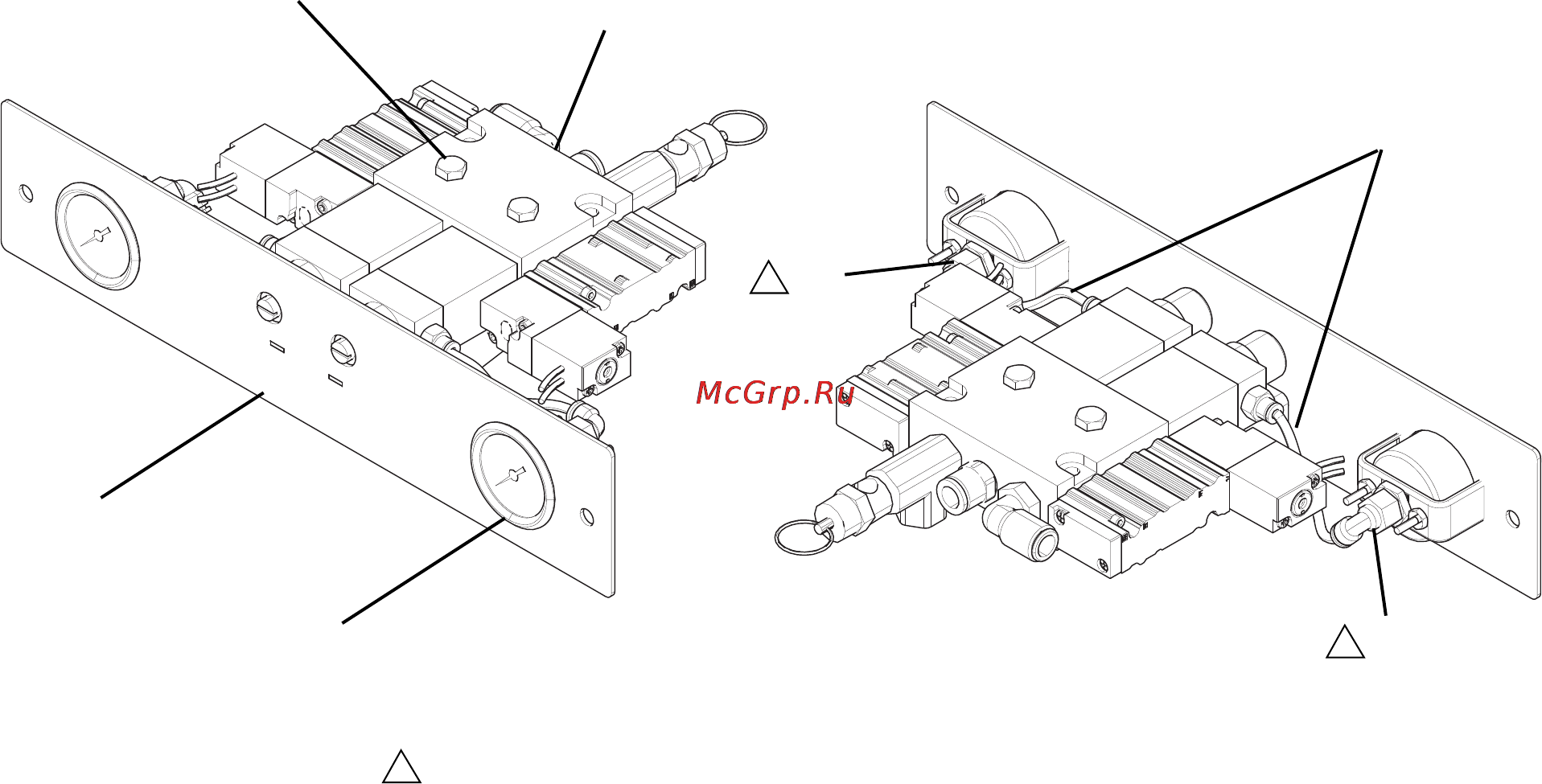

Air Controls Assembly
Air Controls Assembly Parts
--- Not for sale.
WLD
Apply sealant to all non-swiveling pipe threads.
1
405
403
401
402
406
404
404
1
1
Ref Part Description Qty
401 --- PANEL, air, controls 1
402 24V520 CONTROL, air, vacuum trans-
fer and pump
1
403 128260 GAUGE, pressure, air, panel
mount, 1/8 in. npt
2
404 15T498 FITTING, 90 degree, swivel,
5/32 in. tube x
1/8 in. female npt
2
405 100058 SCREW, cap, hex head 2
406 054753 TUBE, nylon, round, black 2
407 C38321 TIE, cable, 3.62 in. 1
