TC-6000 Series Expansion Modules Hardware Connection Description
3-2
Installing the TC-6000 Series Expansion
Modules

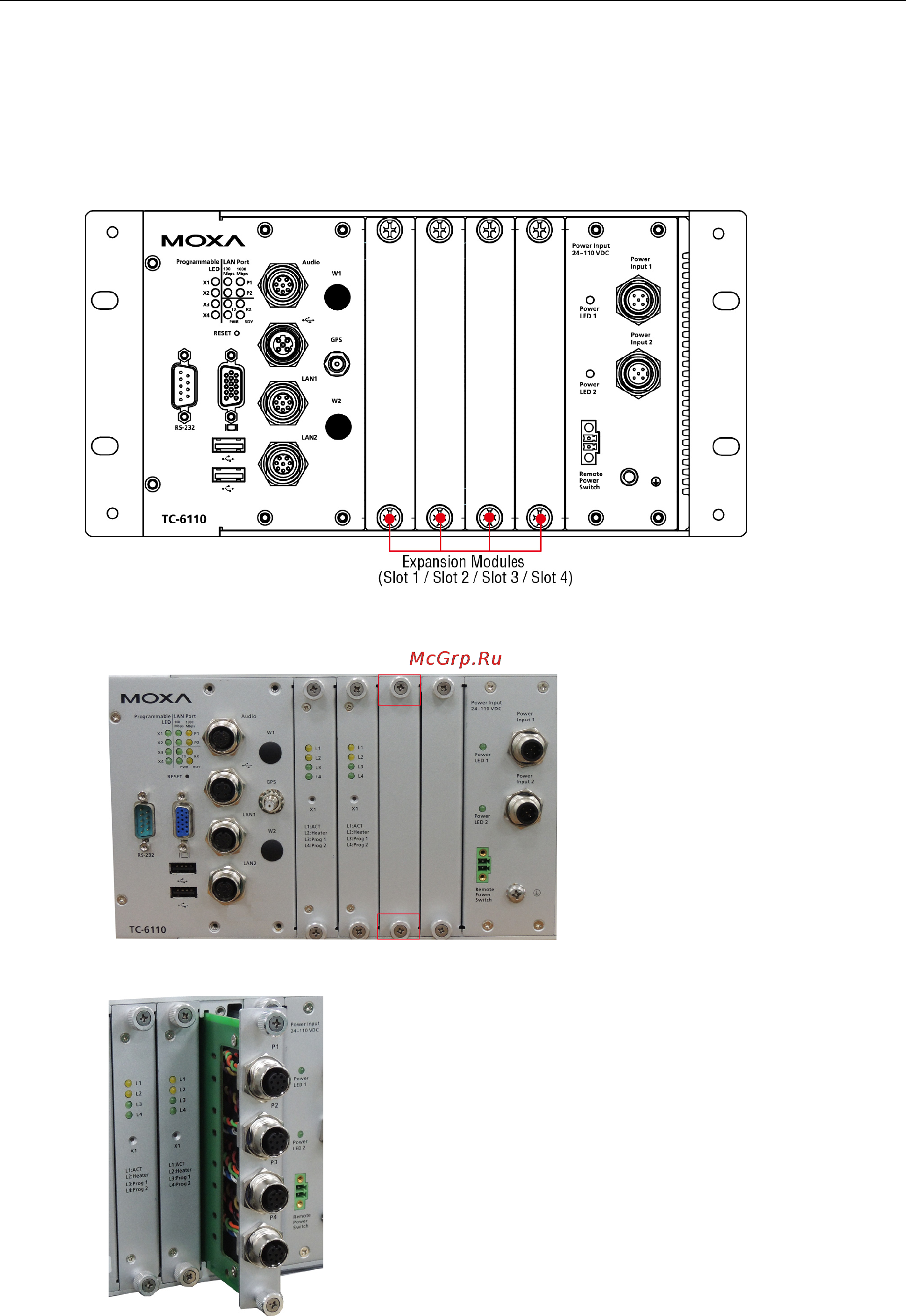

The TC-6000 train computers come with four expansion module slots on the front panel. Refer to the following
figure for the location of these slots.
To insert the TC-6000 series expansion modules into the TC-6000 train computer, follow the steps below.
1. Loosen the thumbscrews and remove the coverplate.
2. Insert the module into the slot, being careful not to damage the card as you slide it into to the motherboard
connector. Once you have secured it into the slot, fasten the screws to lock it in.
