TC-6000 Series Expansion Modules Software Installation and Programming Guide
4-22

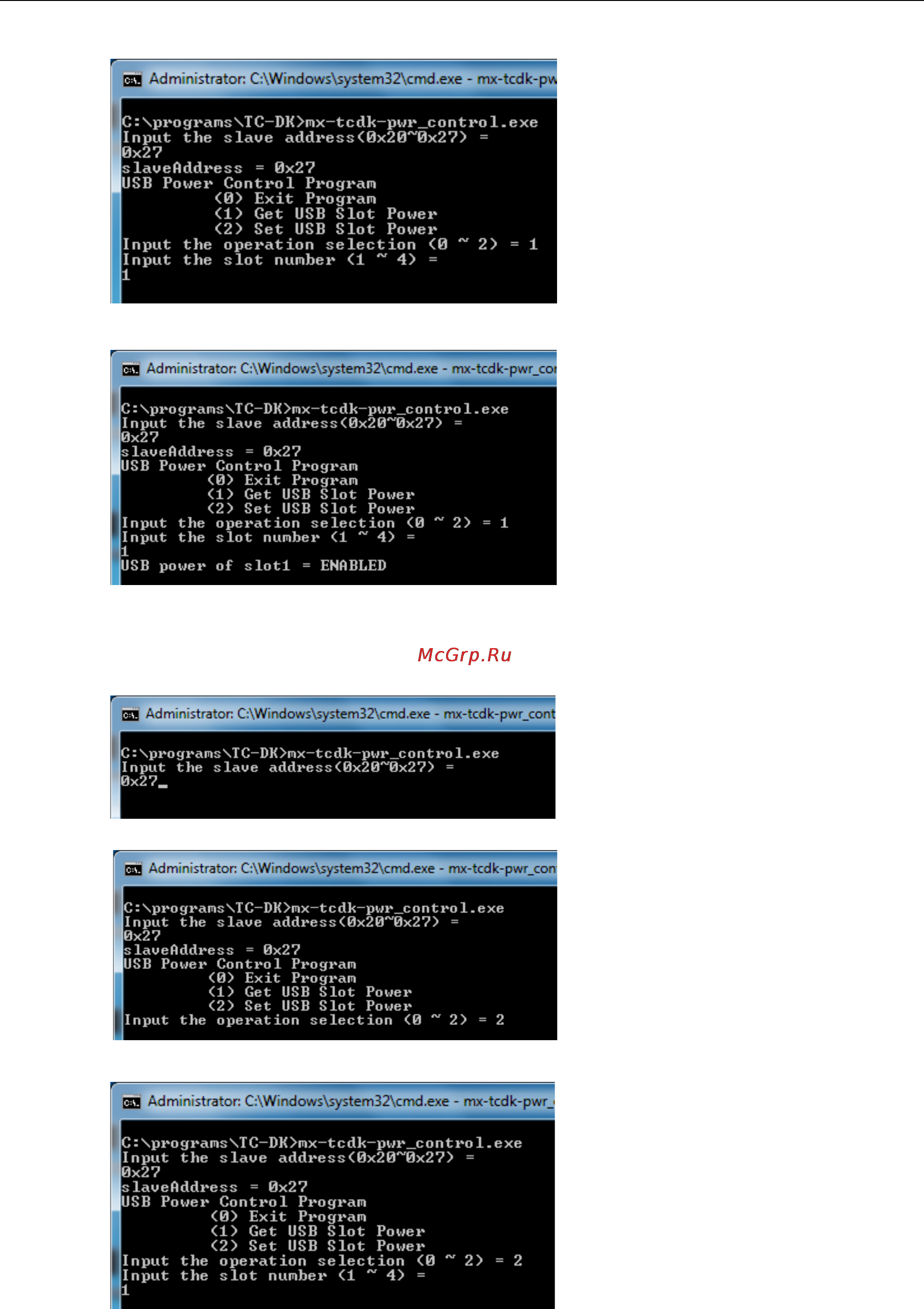

4. Select the slot number. (For example, 1 for socket 1)
5. You will get the USB power status of socket 1.
Take the following steps to disable/enable the USB power.
1. Execute mx-tcdk-pwr-control.exe.
2. Enter the slave address according to the switch jumper on TC-DK10-T/TC-DK20-T modules.
3. Select (2) Set USB Slot Power to get the current USB power status.
4. Select the slot number. (For example, 1 for socket 1).
