TC-6000 Series Expansion Modules Software Installation and Programming Guide
4-18

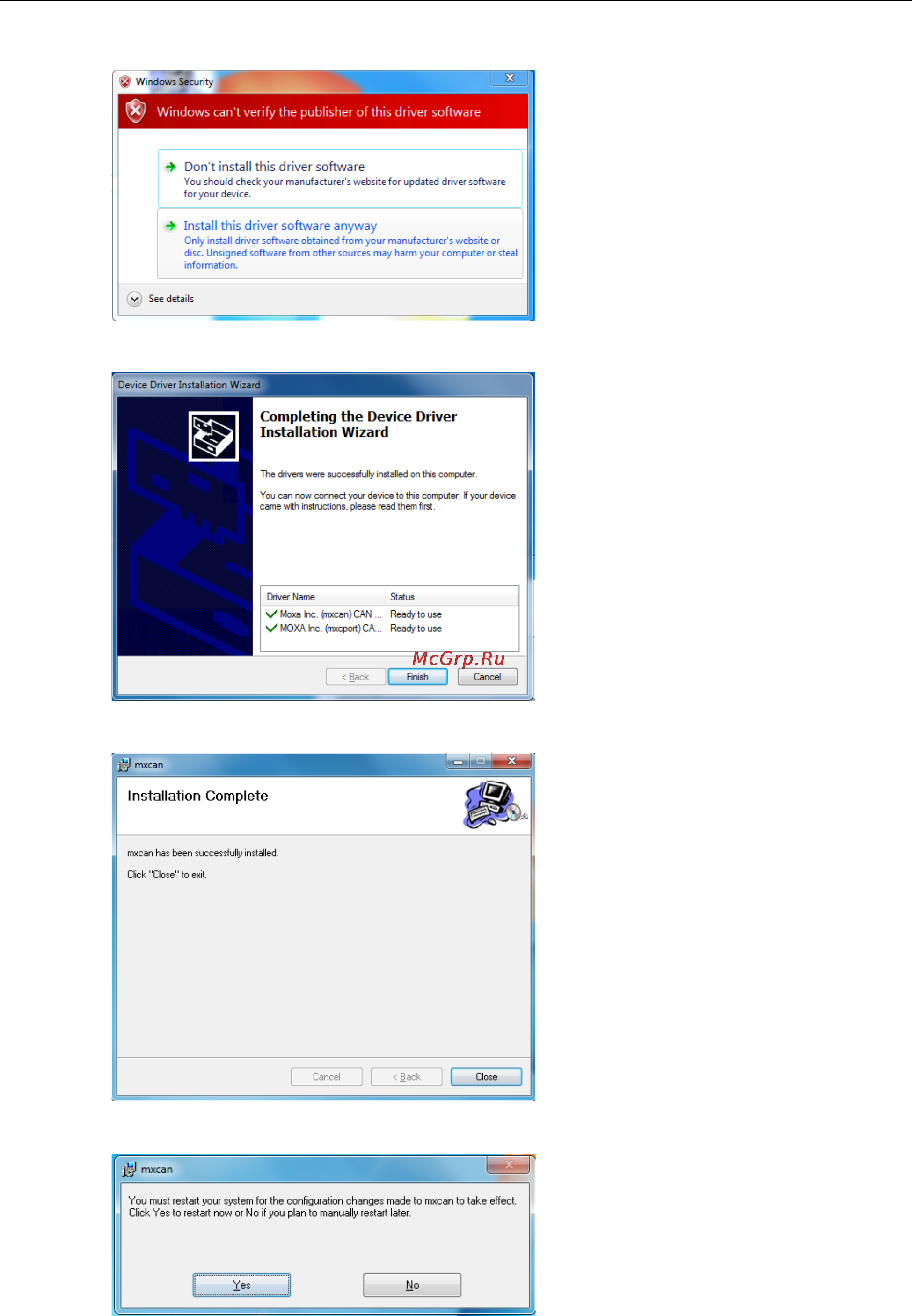

5. Select Install this driver software anyway twice to continue.
6. Click Finish.
7. After the driver is installed, click Close to complete the driver setup.
8. Click Yes to shut down the computer and install the TC-CP02 driver and then boot up again.
