TC-6000 Series Expansion Modules Hardware Connection Description

3-8

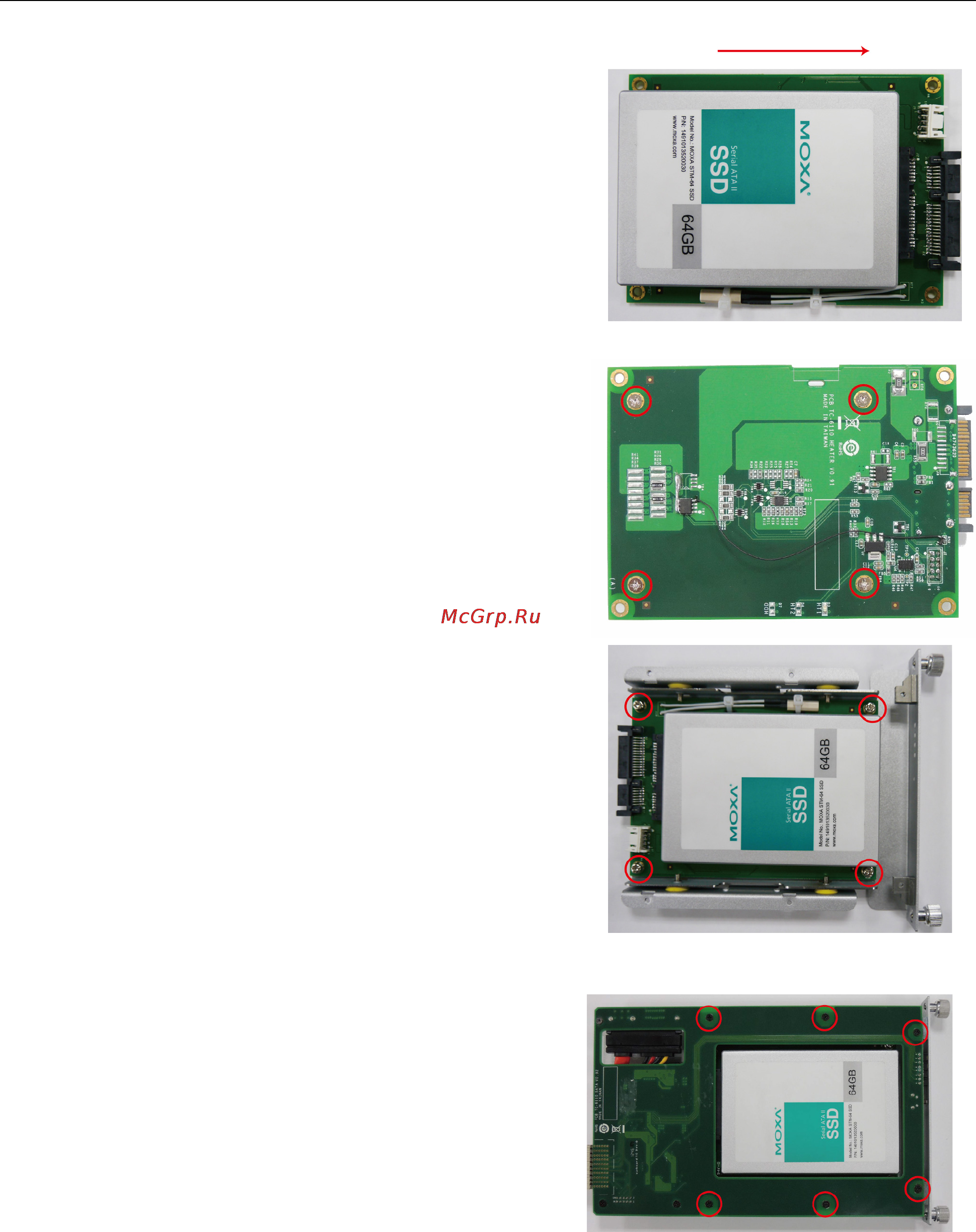

5. Slide the SSD/HDD into the lower PCB in such a way that

the module’s data and power interface securely connect

with the PCB’s power and data interface.

6. Carefully turn the tray over and fasten the drive to the

PCB using the holes indicated in the photo.

7. Fasten the lower PCB to the module’s tray (drive-side up,

as shown) using the four screw holes shown at right.

8. First, connect the upper PCB / main board’s power and

data cables to the lower PCB interface. Then complete

the installation by fastening the drive tray to the main

PCB using the six screws.

9. You may now insert the storage tray back into the TC-6110 and tighten the external thumbscrews.

Note that each removable drive module has a hot-swap button and four LED indicators. To hot swap storage

drives you will need to first install the Moxa hot swap software package, as described in the TC-6110

software manual. Once installed, to hot swap a drive you must use a sharp object to push the hot swap

button (labeled X1, on the front panel map) and wait until the L1 LED indicator goes dark, indicating the drive

has unmounted and is ready for extraction. The L3 and L4 LEDs are programmable, to be defined by users.

Refer to the software manual for more details about the Moxa hot swap software package and programming the

LEDs. The following table describes the functions associated with each LED and button.
