TC-6000 Series Expansion Modules Hardware Connection Description

3-7

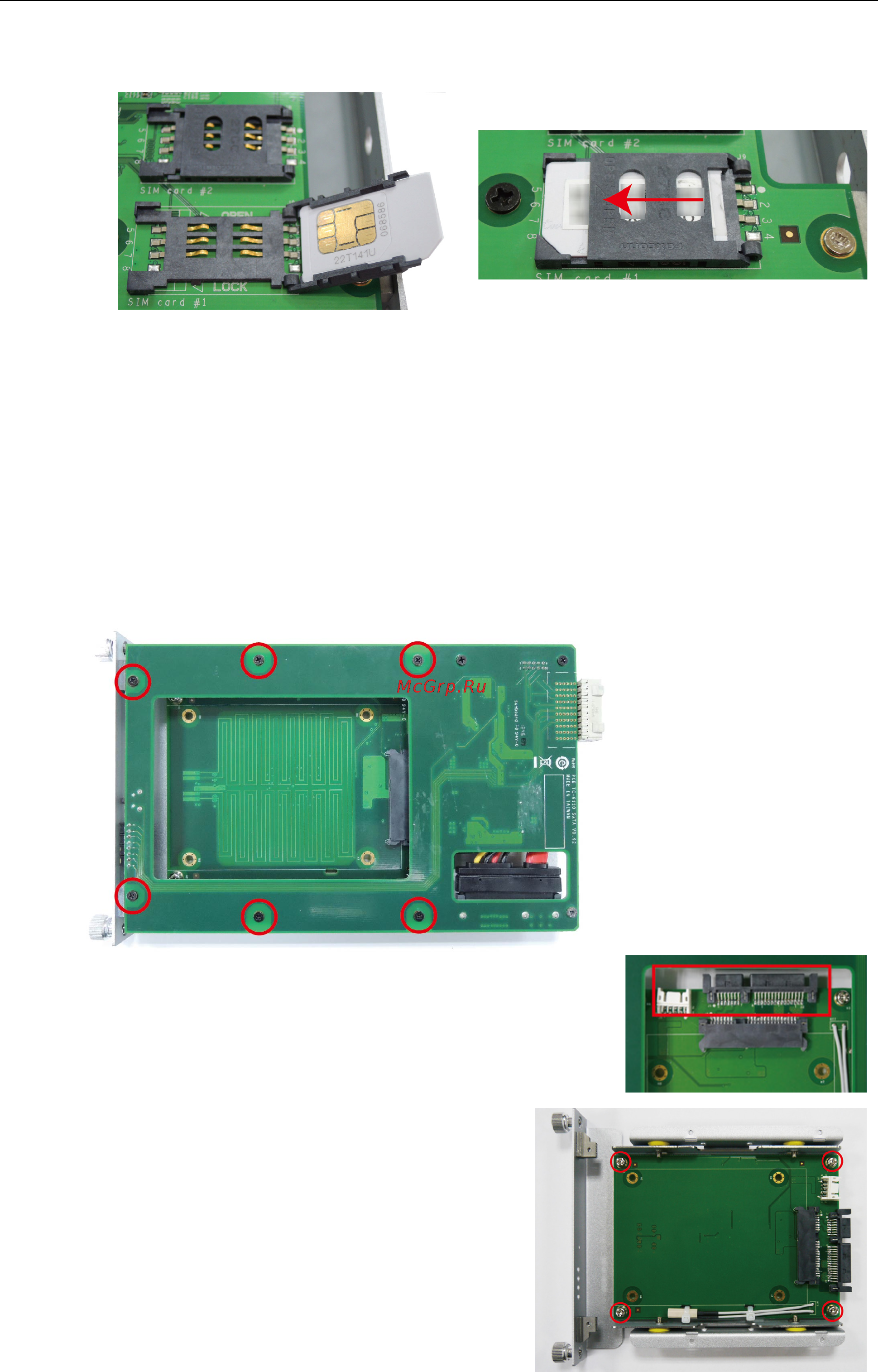

5. Next, insert the SIM card for the cellular module. Pull up the SIM card slot and insert the SIM card. When

finished, replace the holder and slide the slot towards the catch to fasten the holder

6. You can use the same procedure to install another cellular module on another socket.

Installing the SSD/HDD into the TC-SATA

Module

Follow these steps to install the SSD/HDD into the TC-STAT storage module. The TC-STAT storage module has

a double-PCB design, with an upper PCB and a lower PCB. The upper PCB is the module’s main board.

1. Remove the storage tray from the computer.

2. Remove the six screws that fasten the upper PCB to the storage tray. These are circled in red, on the figure

below. Note that it is not necessary to remove the remaining three screws.

3. Detach the SATA power and data interfaces from the main board by

carefully sliding the tray away from the main PCB.

4. Remove the four screws securing the lower PCB to the

module tray, and remove the lower PCB.
